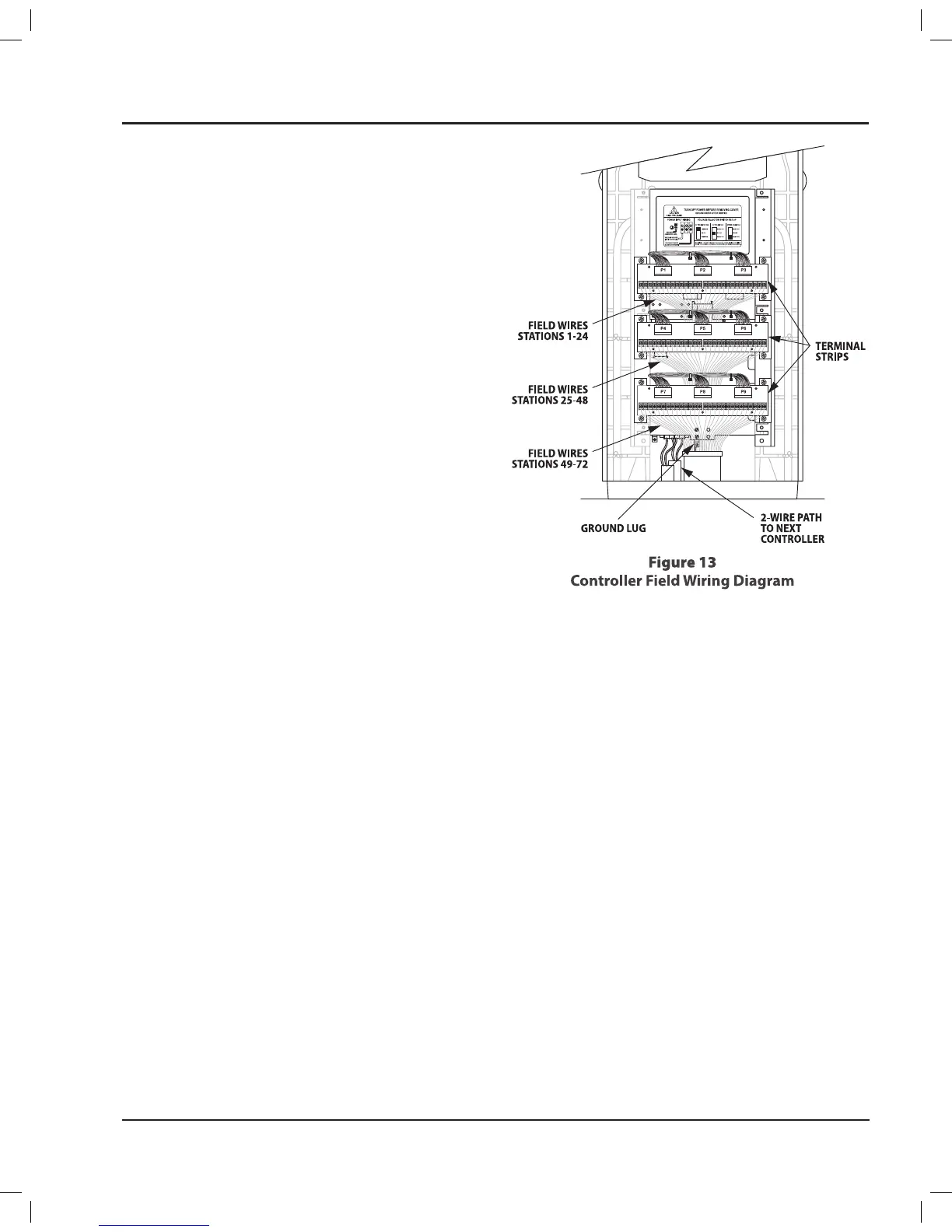

Basic PAR+ES Field Wiring
Connect each station valve wire to its appropriate 1.
terminal on the controller’s terminal strips (i�e�,
station 1 to terminal #1, station 2 to terminal #2,
etc�) Each station can control up to four valves�
NOTE:
!
It may be necessary to splice station
valve wires together to make them fit into
the terminal strip connectors�
Connect a “common” wire to one of the leads on
2.
each valve� Connect the other end of the common
wire to the “VLV COM” terminal on the controller’s
terminal strip�
NOTE:
!
Wire used to connect the valves
must be code-approved for underground
installation�
A harness cable connects the OSMs to the
3.
corresponding stations on the terminal strip�
PAR+ES Installation Manual 11
