iTN8600-I (A) Product Description
1 Overview
Raisecom Proprietary and Confidential
Copyright © Raisecom Technology Co., Ltd.
6

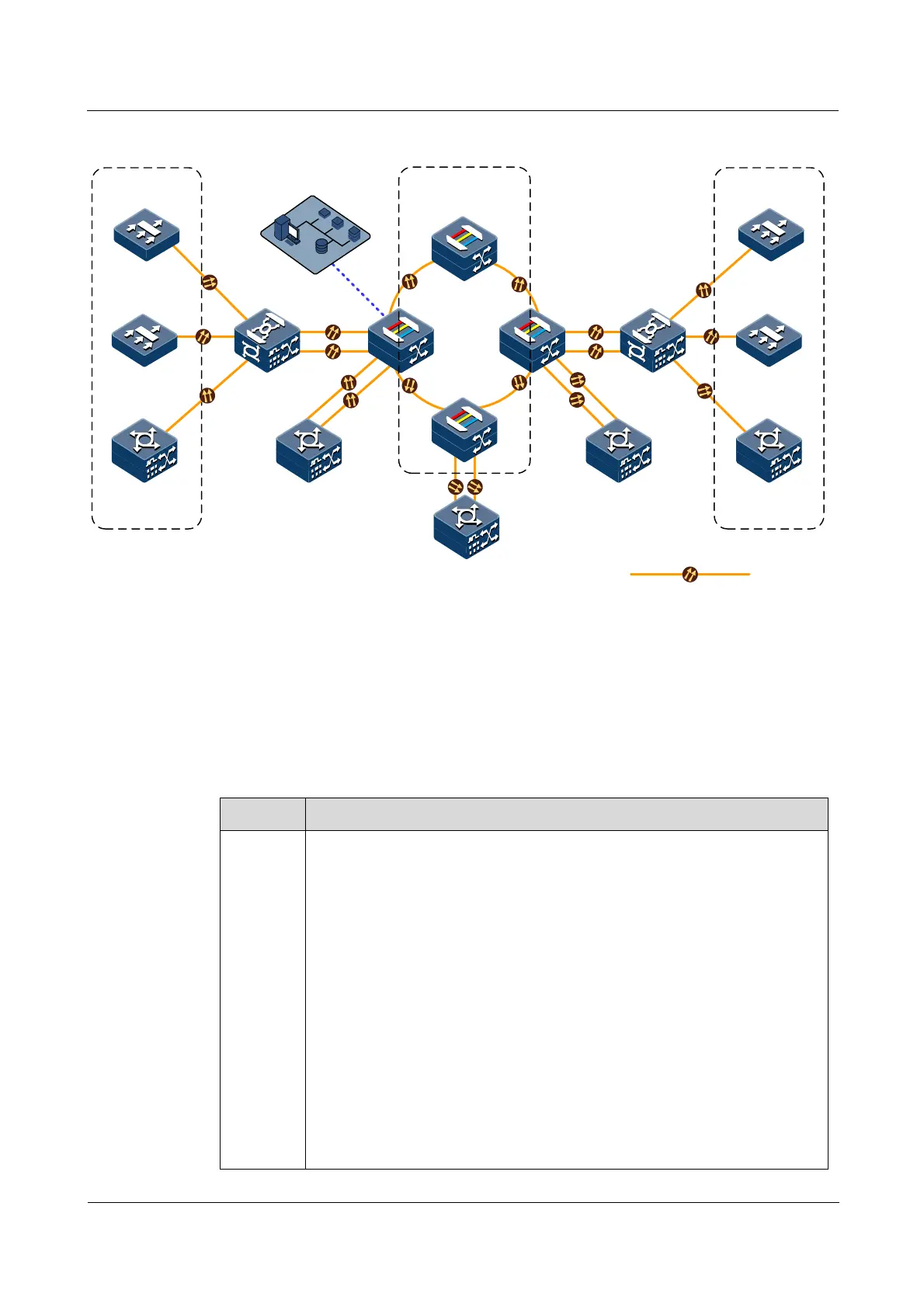

Figure 1-6 Typical ring network application
OTU1
OTU2
iTN8600-A
OTU2
FE/GE/10GE/
STM-N
Access OTN
remote terminal
10GE/STM-64
40GE/100GE
8G/10G/16G FC
customer device
NView NNM
DCN
OTU4
iTN8600-A
OTU1
OTU2
FE/GE/10GE/
STM-N
10GE/STM-64
40GE/100GE
8G/10G/16G FC
customer device
Access OTN
remote terminal
OTU2
iTN8600-I
100 Gbit/s ring
network
Dual fibers
1.3 Ordering information
1.3.1 Device
错误!未找到引用源。 lists ordering information about the iTN8600-I.
Table 1-1 Ordering information about device
Model
Description
iTN8600-
I-XT4D

The iTN8600-I-XT4D supports OTN Muxponder, Transponder, and ADM
applications.

The line side supports the CFP2 optical module to transmit 2 ways of 100
Gbit/s OTU4 services at the line side.

The client side supports the QSFP28/QSFP+/SFP+ optical module to
transmit 100/40/10 Gbit/s 100GE/OTU4/40GE/10GE/OTU2/OTU2e/STM-
64 services and 8/10/16G FC services. All client-side interfaces share up to
200 Gbit/s bandwidth.

Client-side interfaces support up to 2 ways of 100 Gbit/s (QSFP28)
services, 2 ways of 40 Gbit/s (QSFP+) services, 12 ways of 16G FC
(SFP+), and 20 ways of 10G Any services (16 ways of SFP+ services and 1
way of QSFP+ PSM4 services).

The line side supports OCh 1+1 protection and ODUk SNCP 1+1
protection.

When the iTN8600-I-XT4D accesses OTU2/OTU4 services at the client
side, it supports OCh 1+1 protection and ODUk SNCP 1+1 protection.
When it accesses other services, it supports interface protection.

The NMS channel supports SNMP out-of-band network management and
