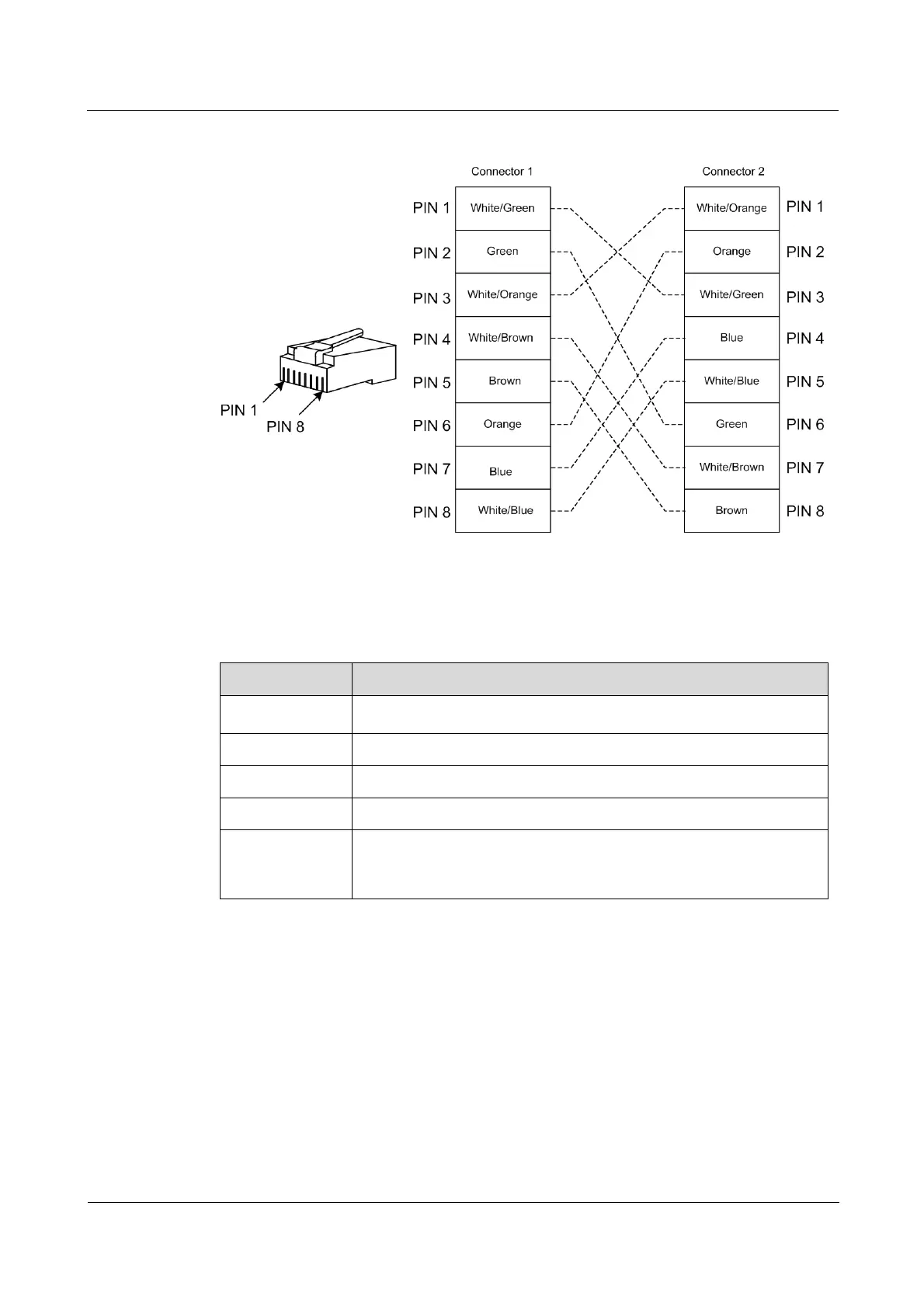

Figure 5-7 Wiring of the 1000 Mbit/s crossover cable
Technical specifications
Table 5-16 lists technical specifications of the Raisecom straight-through cable.
Table 5-16 Technical specifications of the Raisecom straight-through cable
Parameter
Description
Name

Straight-through cable: CBL-ETH-RJ45/RJ45-D

Crossover cable: CBL-ETH-RJ45/RJ45-X-D
Connector
RJ45
Model
Cat 5 or better UTP (UTP-5 and UTP-5e) or STP cable
Number of cores
8
Length
The letter D is the length, which can be customized. For example, if
the customer requires a 2-meter cable, you can name it CBL-ETH-
RJ45/RJ45-2m.
5.2.3 Configuration cable
Introduction
The configuration cable is used to connect the Console interface on the iTN8600-I to PC.
Appearance
Connectors at both ends of the configuration cable are USB A-type male connectors, as
shown in Figure 5-8.
