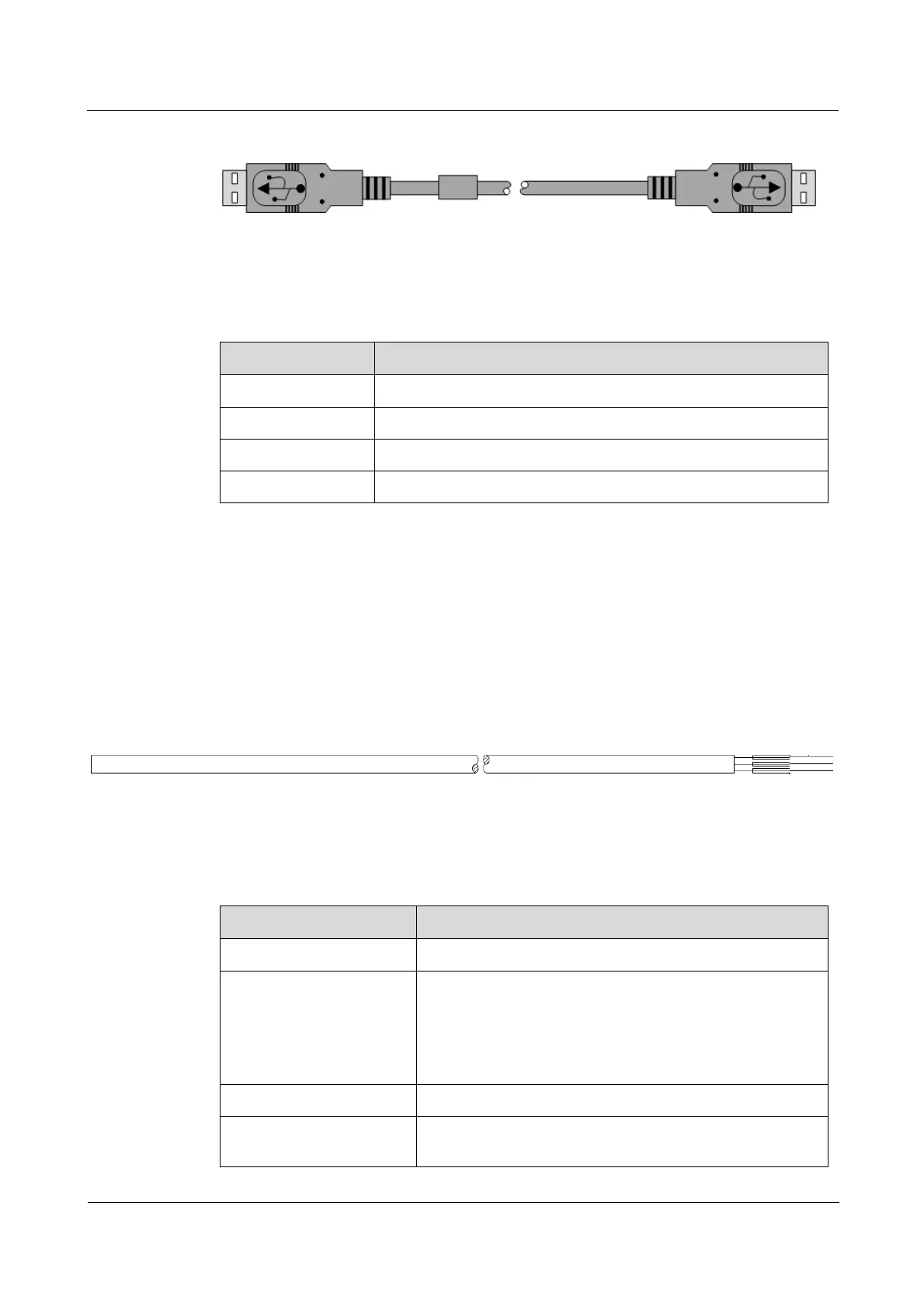

Figure 5-8 Configuration cable
Technical specifications
Table 5-17 lists technical specifications of the configuration cable.
Table 5-17 Technical specifications of the configuration cable
Parameter
Description
Cable name
CBL-USB-USB-AM/USB-AM-1.5m/RoHS
Connector type
USB2.0 AM connector+USB2.0 AM connector
Cable type
UL2725
Length
1.5 m
5.2.4 Power cables
DC power cable
The DC power cable transmits -48 VDC power to the DC terminal block on the front panel of
the iTN8605, and supplies power for the entire device. The DC power cable consists of the
DC power connector and the coaxial cable, as shown in Table 5-18.
Figure 5-9 DC power cable
Technical specifications
Table 5-18 lists technical specifications of the DC power cable.
Table 5-18 Technical specifications of the DC power cable
Parameter
Description
Name
POL-DC-unstripped/stripped-1.0mm
2
-D/RoHS
Cable

3-wire ordinary RVV

3×1.0mm
2
60227 IEC 53 (RVV)

Flame-retardant tube equipped at the stripped end

+Vin positive wire: brown

-Vin negative wire: blue

PGND ground wire: yellow/green
Rated voltage (V)
300/500
Insulation and voltage
resistance (RVV)
AC2000V, 5min
