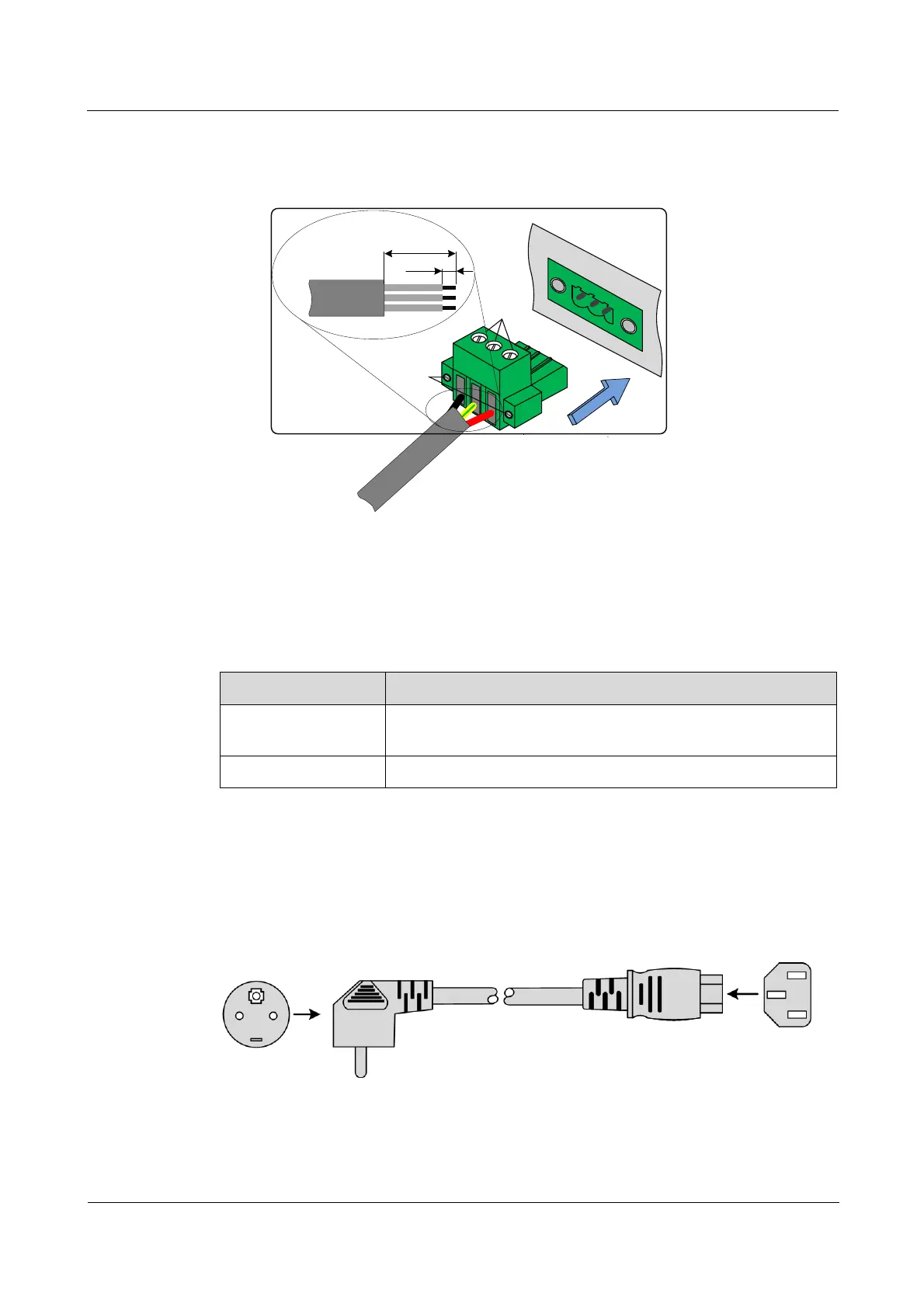

Figure 5-10 Stripping dimensions and connector
M2
terminal screw
6.5mm
20mm
M2 fixing
screw
-
48
V
RTN
Wiring stripping
dimensions
AC power cable
The AC power cable transmits 110/220 VAC power from the power souring equipment to the
AC power terminal block of the iTN8605, and supplies power to the entire device. The
iTN8605 uses different AC power cables in different countries or regions.
Regional standard
Cable name
CE
POL-AC-European 3-pin/receptacle-AC power cable-0.75mm2-
1.5m /RoHS
UL
POL-AC-American 3-pin/C13 connector-18AWG-1.5m/RoHS

CE-standard AC power cable
The AC power cable which meets European standard is composed of the European 3-pin plug
and C13 connector, as shown in Figure 5-11.
Figure 5-11 European AC cable
Technical specifications
Table 5-19 lists technical specifications of the European AC power cable.
