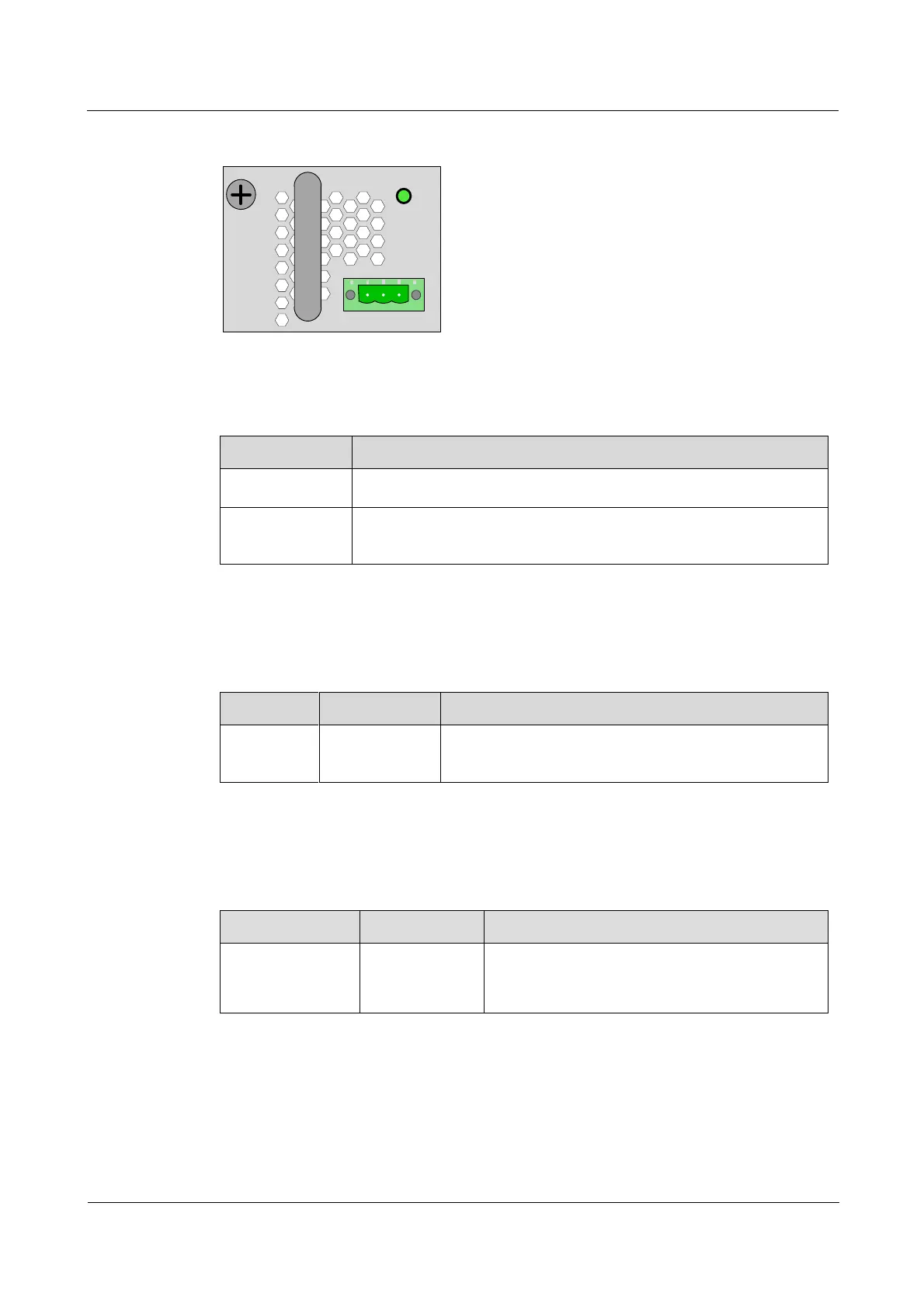

Figure 3-2 Panel of the DC power supply
RPD1304
PWR
-48V RTN
3.2.3 Functions
Table 3-6 Functions of the DC power supply
Function
Description
Basic functions

Support wide voltage input range of -40 to -57 VDC.

Support the maximum load of 175 W.
Protection
functions

Support dual power supply 1+1 protection.

Support dual power load balancing.

Support how swapping.
3.2.4 Interface
Table 3-7 Interface on the DC power supply
Print
Type
Description
–
3-pin Phoenix
connector

Used with the 5.08-3Pin-header/RoHS connector

-48V: connected to the negative terminal

RTN: connected to the positive terminal
3.2.5 LED
Table 3-8 LED on the DC power supply
Print
Color
Description
PWR
Green
Power LED

Green: the power supply is normal.

Off: the power supply is abnormal.
