iTN8600-I (A) Product Description
3 Cards and parts
Raisecom Proprietary and Confidential
Copyright © Raisecom Technology Co., Ltd.
15

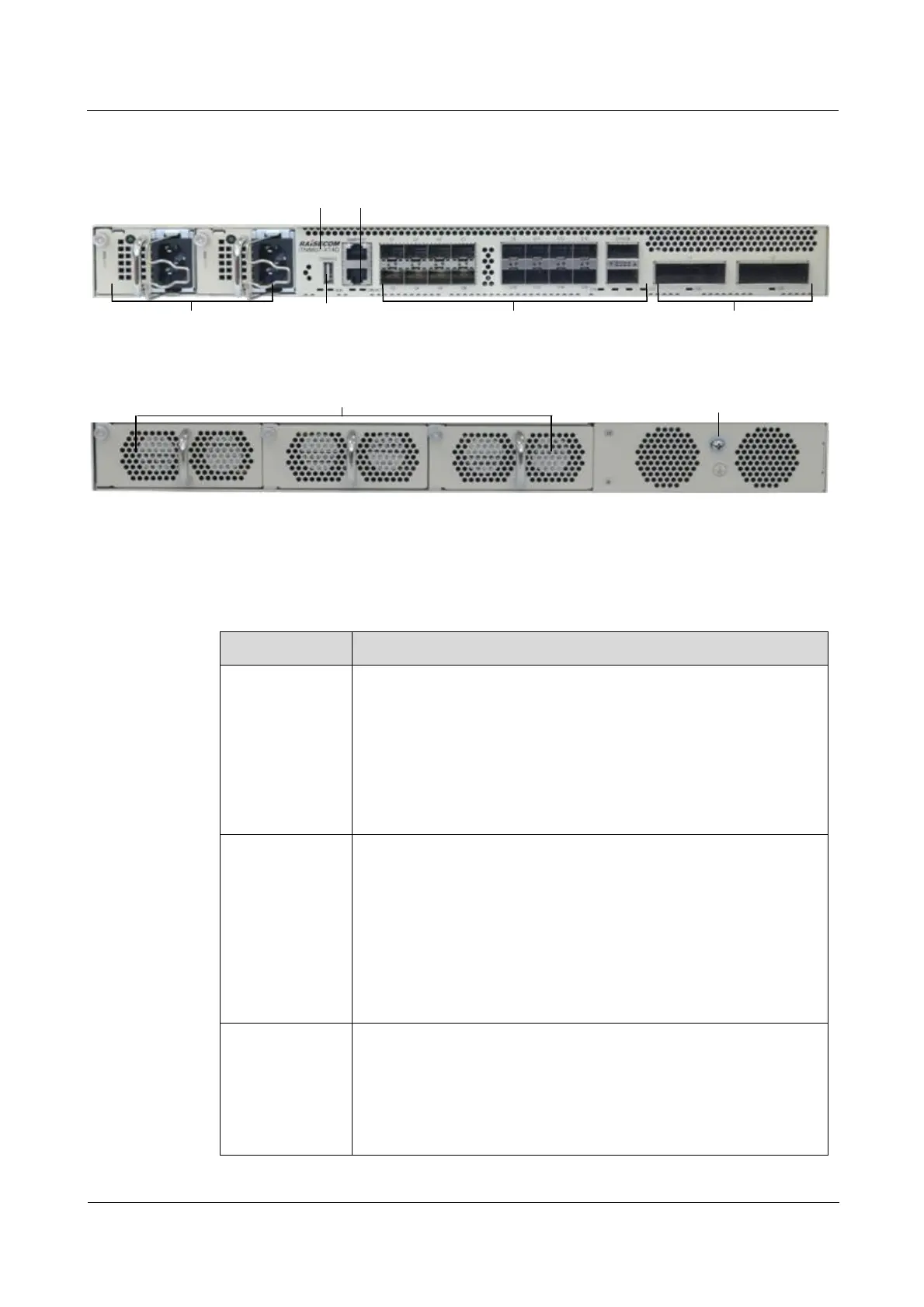

Figure 3-1 Appearance of the iTN8600-I-XT4D
Front
panel
Rear
panel
Line-side interface
and LOS alarm LED
Ground terminal
and symbol
Model
Client-side interface and
LOS alarm LED
Console interface
SYS status
ALM LED
Network management SNMP
interface, EXT cascading interface,
LNK/ACT status LED
Power supply
Fan
3.1.3 Functions
Table 3-2 lists functions of iTN8600-I.
Table 3-2 Functions of iTN8600-I
Function
Description
Basic functions

The iTN8600-I-XT4D supports OTN Muxponder, Transponder, and
ADM applications.

The line side supports the CFP2 optical module to transmit 2 ways
of 100 Gbit/s OTU4 services at the line side.

The client side supports the QSFP28/QSFP+/SFP+ optical module
to transmit 100/40/10 Gbit/s
100GE/OTU4/40GE/10GE/OTU2/OTU2e/STM-64 services and
8/10/16G FC services. All client-side interfaces share up to 200
Gbit/s bandwidth.
Mapping
accessed OTN
services

Mapping 100GE services into ODUflex or OPU4 through GFP-F

Mapping 100GE services into OPU4 through GMP

Mapping 40GE services into ODUflex or OPU3 through GFP-F

Mapping 40GE services into OPU3 through GMP

Mapping 10GE services into ODUflex or OPU2 through GFP-F

Mapping 10GE services into OPU2e through BMP

Mapping STM-64 services into OPU2 through AMP or BMP

Mapping 16G FC services into ODUflex through BMP

Mapping 10G FC services into OPU2e through GFP-F

Mapping 8G FC services into OPU2 through GMP
Mapping and
multiplexing
OTN services

Demapping OTU2 services into ODU0/1/2/flex services, and
mapping and multiplexing these ODU0/1/2/flex services on the
OTU4 interface

Demapping OTU4 services into ODU0/1/2/2e/3/4/flex services, and
mapping and multiplexing these ODU0/1/2/2e/3/4/flex services on
the OTU4 interface

Level-one multiplexing in 1.25G timeslot mode
