Raisecom MSG1200 User Manual

Raisecom
MSG1200 (A) User Manual
2 Product structure
Raisecom Technology Co., Ltd.
12
Table 2-2 Optical interface
Model
Name
Description
MSG1200-GEC
SFP optical interface

Be used for uplink connection.

Cooperate with the SFP optical module.
The transmission distance and speed vary
on the optical module.

For details about optical modules, see
section 1.3.2 Ordering information about
optional modules.
MSG1200-
EPON
EPON optical
interface

Be used to connect uplink to an OLT.

Tx wavelength: 1310 nm
Uplink speed: 1.25 Gbit/s
Mean Tx optical power: 0.5–5 dBm

Rx wavelength: 1490 nm
Downlink speed: 1.25 Gbit/s
Rx overload optical power: -3 dBm
Rx sensitivity: -27 dBm

Support DDM and optical link detection.

Interface type: SC/PC
MSG1200-
UPON
EPON/GPON self-
adaptive optical
interface
In EPON mode, interface descriptions are
identical to the ones described in the above
cell.
In GPON mode,

Be used to connect uplink to an OLT.

Tx wavelength: 1310 nm
Uplink speed: 1.25 Gbit/s
Mean Tx optical power: 0.5–5 dBm

Rx wavelength: 1490 nm
Downlink speed: 2.5 Gbit/s
Rx overload optical power: -8 dBm
Rx sensitivity: -28 dBm

Support DDM and optical link detection.

Interface type: SC/PC
Other interfaces

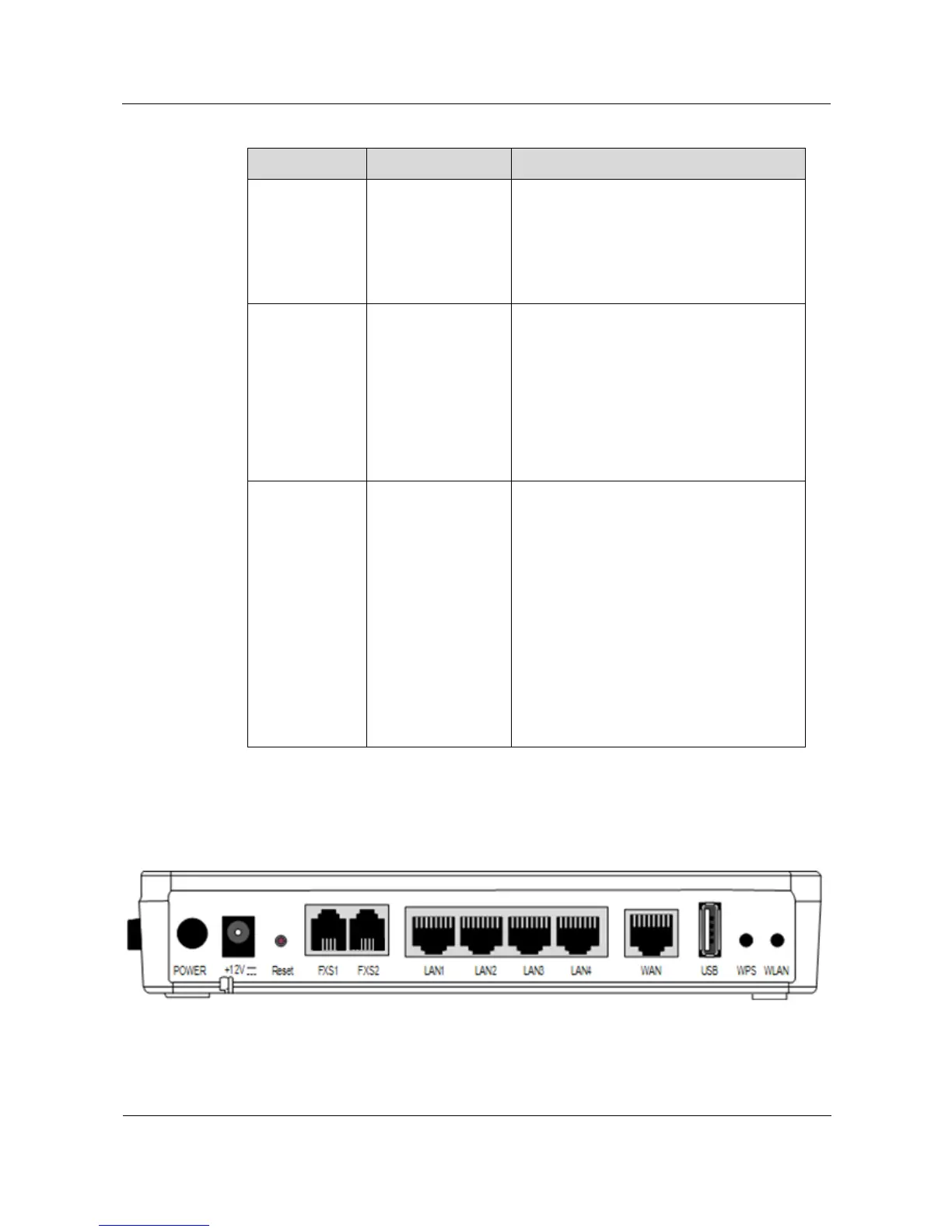

Figure 2-6 Other interfaces on the MSG1200-GEC
