Raisecom
MSG1200 (A) User Manual
2 Product structure
Raisecom Technology Co., Ltd.
21
Table 2-9 Technical specifications of the Ethernet cable
Item
Description
Color
Dark grey
Model
Cat 5 or batter Unshielded Twisted Pair (UTP) cable (UTP-5/UTP-
5e) or Shielded Ttwisted Pair (STP) cable
Connector
RJ45 connector
Number of cores
8 cores
Length
The letter D indicates the length, which is customized. For example,
if the customer requires 2-meter cables, they are named CBL-ETH-
RJ45/RJ45-2m.
2.5.3 Telephone cable
The MSG1200 has 2 RJ11 voice interfaces, which are connected to the telephone/fax through
the telephone cable. In general, the telephone cable has 2/4 cores. Figure 2-17 shows a
telephone cable with 4 cores.

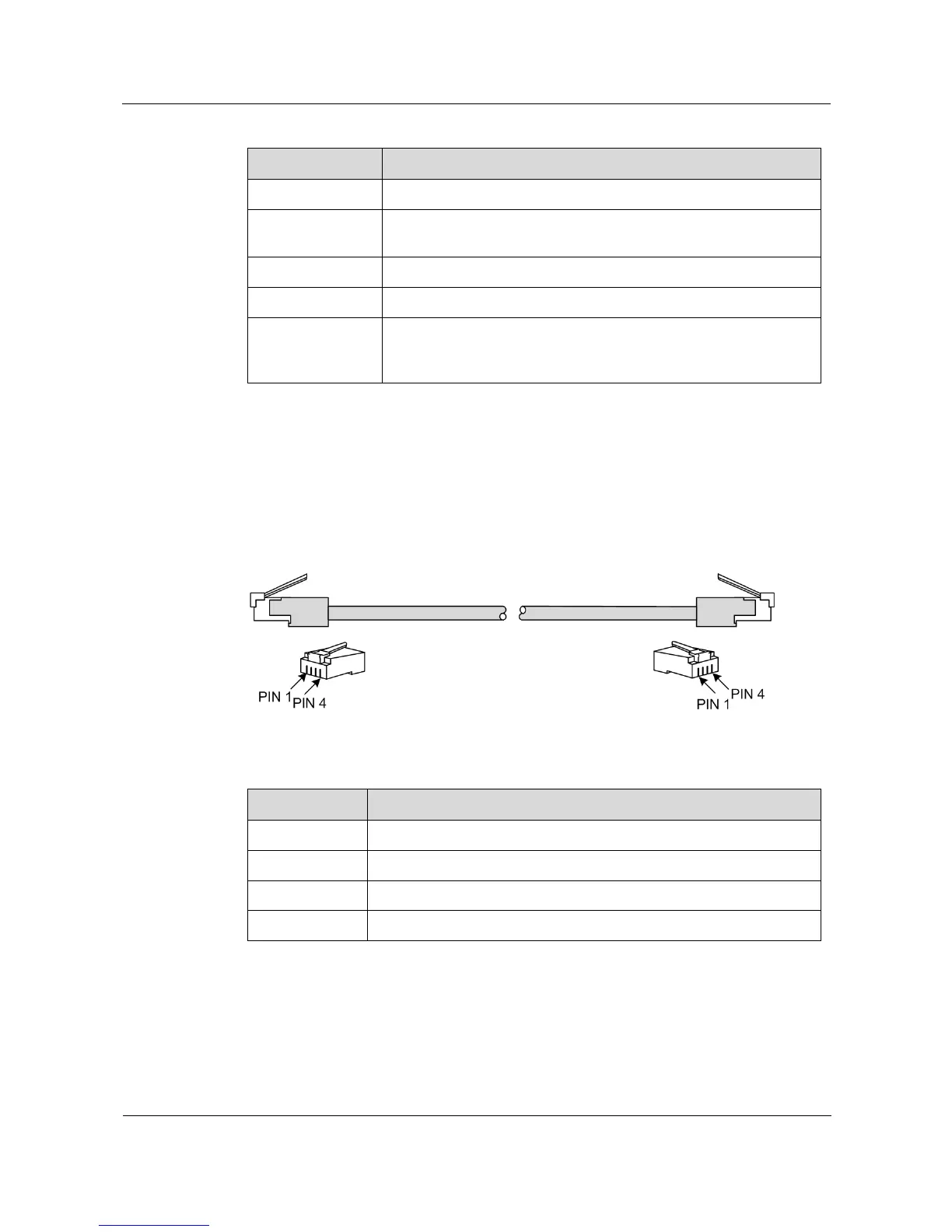

Figure 2-17 Telephone cable
Table 2-10 describes signals of the telephone cable.
Table 2-10 Signals of telephone cable
PIN
Signal
PIN1
–
PIN2
Ringing
PIN3
Tip
PIN4
–
2.6 Power adaptor
The MSG1200 power adaptor outputs the power through one way. It translates the AC power
into the DC power to supply power for the MSG1200.
