2 Product structure
Raisecom Technology Co., Ltd.
18
Table 2-7 Wiring relationship of fiber
Wiring
relationship
Local optical
interface
Optical signal
direction
Remote optical
interface
Single-fiber
connection
Optical interface
<->
Optical interface
Dual-fiber
connection
Optical interface Tx
->
Optical interface Rx
Optical interface Rx
<-
Optical interface Tx
2.5.2 Ethernet cable
The Ethernet service interface on the MSG1200 supports self-adaptive straight-through cables
and crossover cables. There 2 Ethernet cables are available when you need to connect the
Ethernet electrical interface.
Figure 2-13 shows an Ethernet cable.

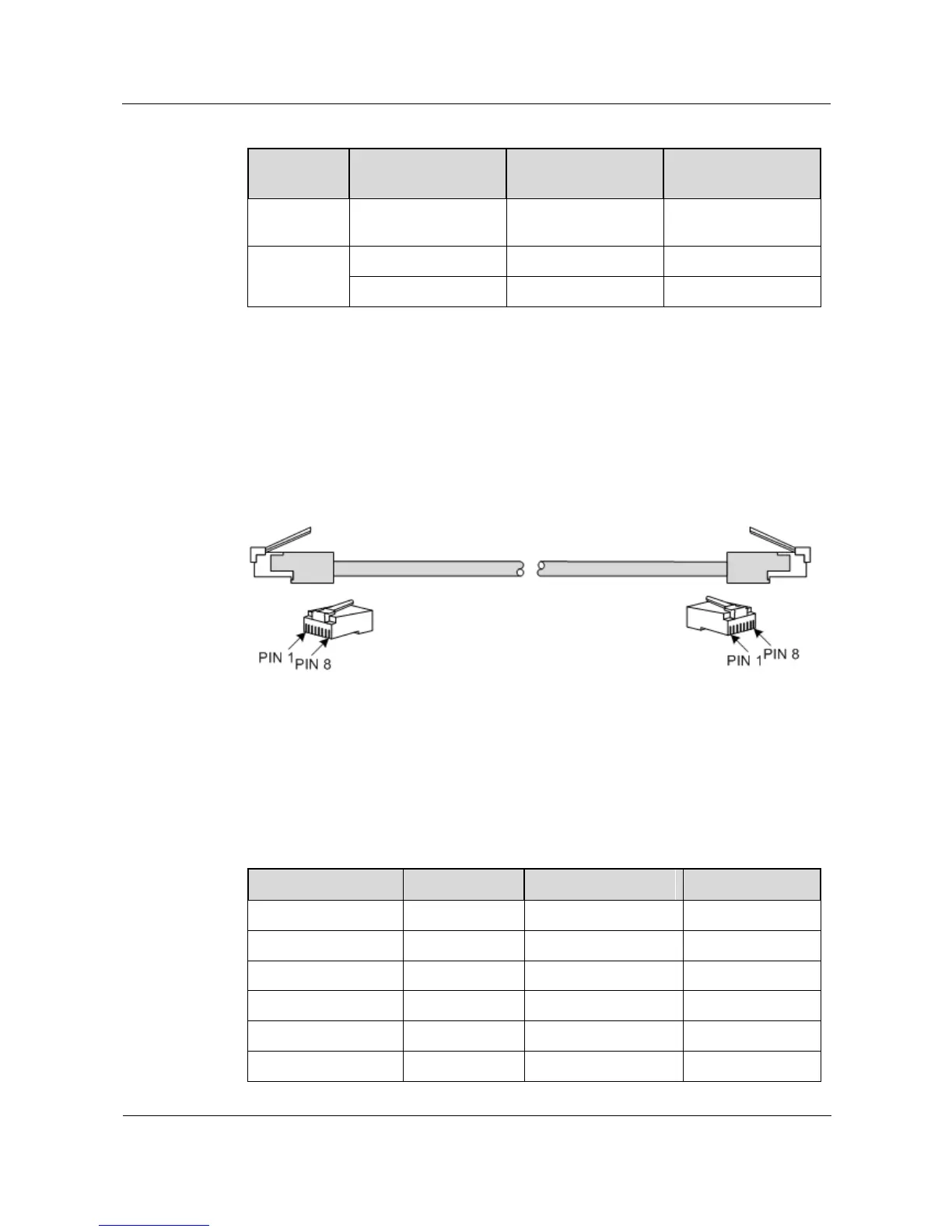

Figure 2-13 Ethernet cable
The Ethernet cables have two types:

Straight-through cable: used to connect devices of different types, such as a PC and a
switch/switch and router.

Crossover cable: used to connect devices of the same type, such as between 2
PCs/switches/routers, or between a PC and a router (they are divided into the same group)
Table 2-8 lists the line order of EIA/TIA568A and EIA/TIA568B standards.
Table 2-8 Line order of EIA/TIA568A and EIA/TIA568B standards
Connector 1(RJ45)
EIA/TIA568A
Connector 2(RJ45)
EIA/TIA568B
PIN 1
White/Green
PIN 1
White/Orange
PIN 2
Green
PIN 2
Orange
PIN 3
White/Orange
PIN 3
White/Green
PIN 4
Blue
PIN 4
Blue
PIN 5
White/Blue
PIN 5
White/Blue
PIN 6
Orange
PIN 6
Green
