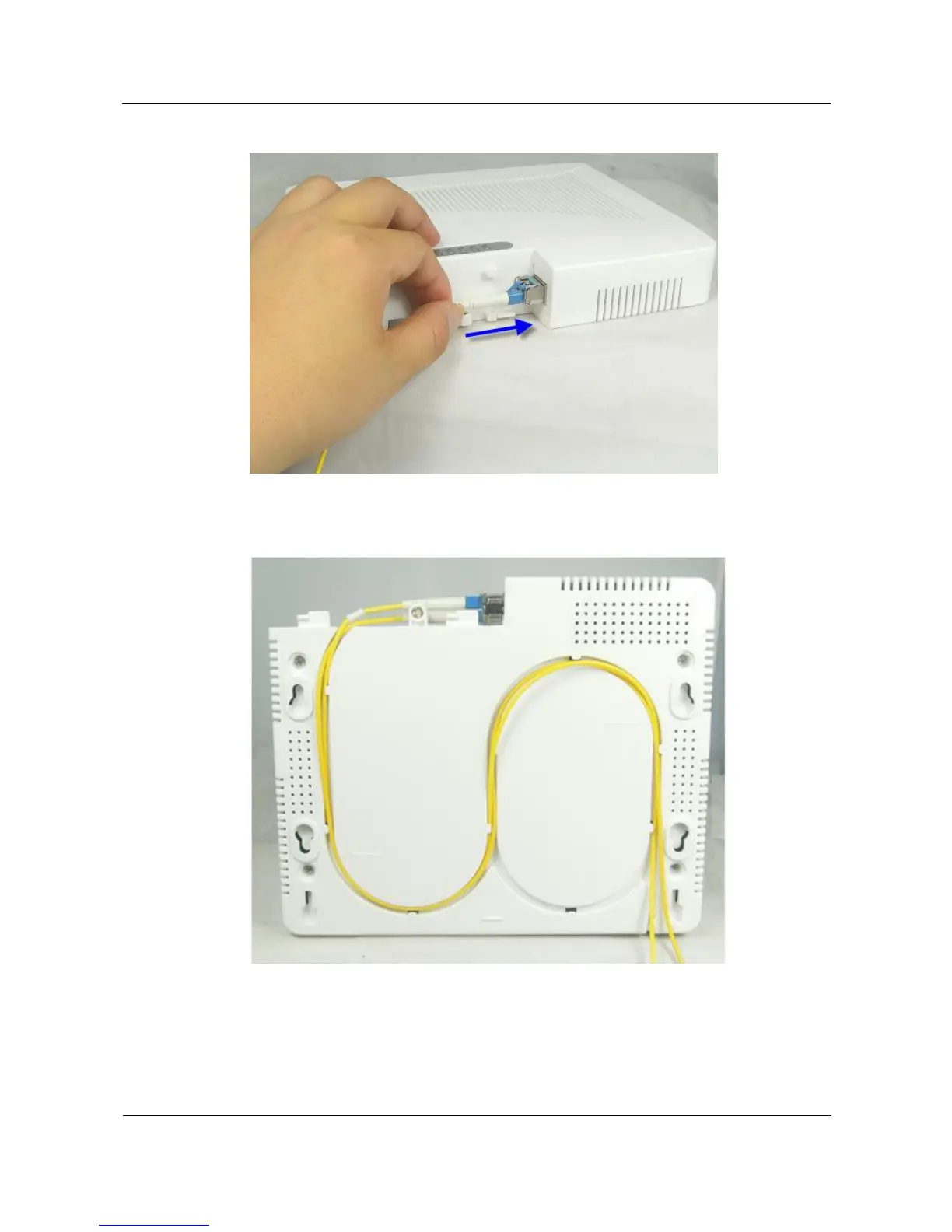

Figure 4-6 Connecting fibers (1)
Step 4 Place fibers in the fiber groove, as shown in Figure 4-7.
Figure 4-7 Connecting fibers (2)
Step 5 Install the fiber cover, as shown in Figure 4-8.
