MSG1200 (A) User Manual
2 Product structure
Raisecom Technology Co., Ltd.
20

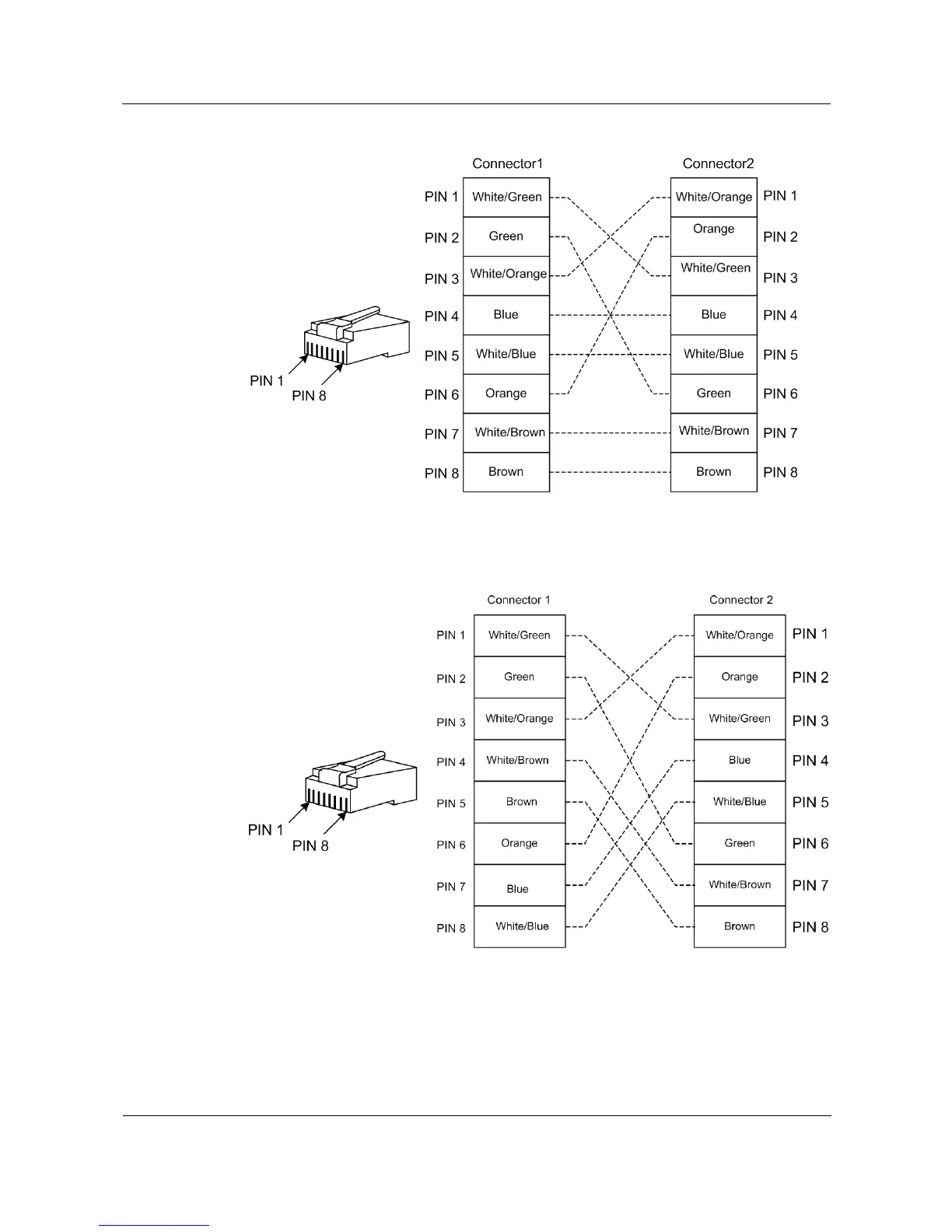

Figure 2-15 Line order of the 100 Mbit/s crossover cable
The 1000 Mbit/s crossover cable uses all 8 pins. The crossover is PIN1 to PIN3, PIN2 to PIN6,
PIN4 to PIN7, and PIN5 to PIN8, as shown in Figure 2-16.
Figure 2-16 Line order of the 1000 Mbit/s crossover cable
Raisecom provides straight-through cables and 100 Mbit/s crossover cable which are different
in name only. The straight-through cable is named as CBL-ETH-RJ45/RJ45-D while the
crossover cable is named as CBL-ETH-RJ45/RJ45-X-D
Table 2-9 lists technical specifications of the Ethernet cable.
