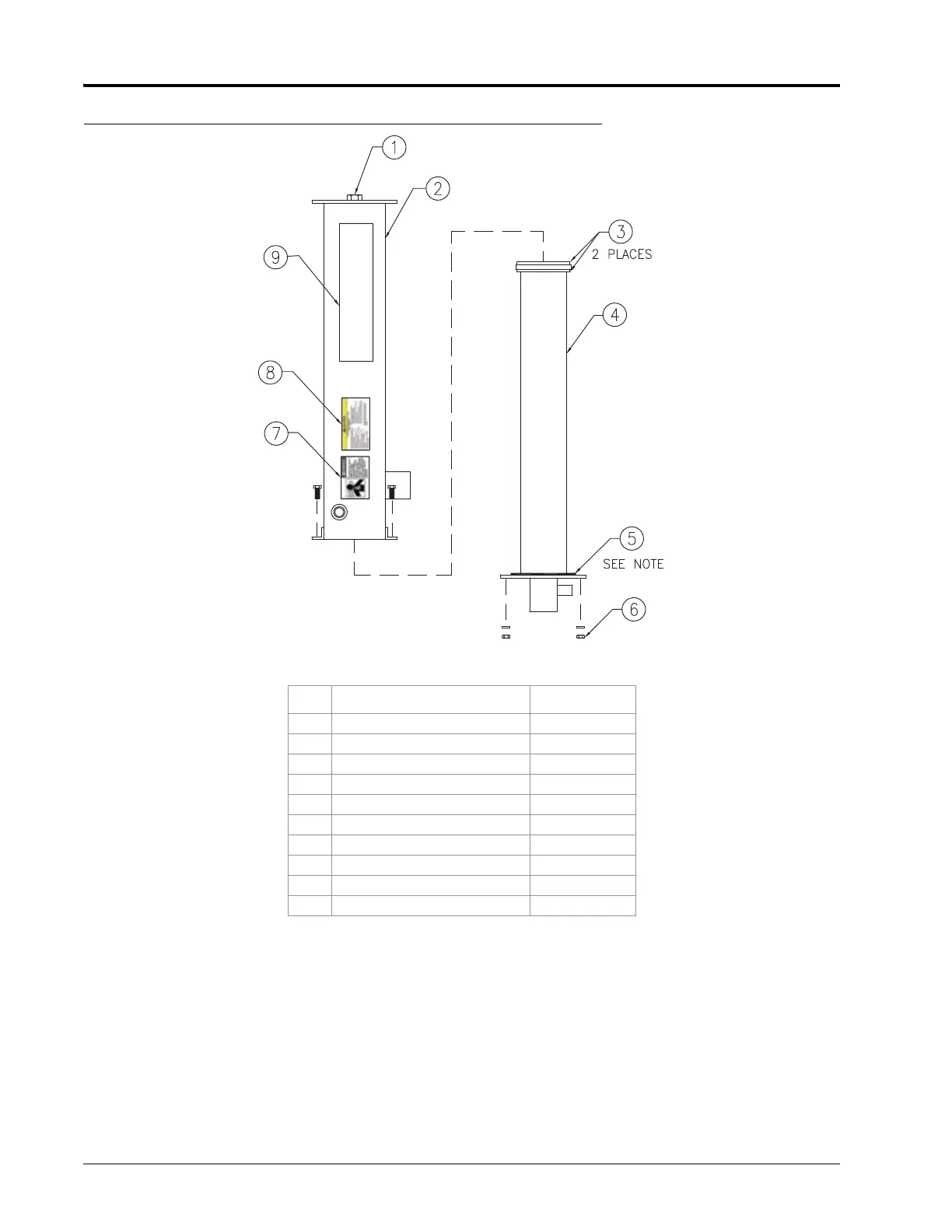

FIGURE 1. AccuFlow™ Super Cooler Assemblies (P/N 063-0173-314)
TABLE 1. Super Cooler Assemblies (P/N 063-0173-314) Parts List
1. The relief valve (P/N 334-0002-005) must be replaced every five years from the date of manufacture. Refer
to Relief Valve Replacement Procedure section on page 55 for replacement instructions.
2. If the super cooler is disassembled for cleaning, be sure to replace the cooler seals. Refer to the following
figure and table for assistance with identifying the appropriate seal kit for the specific cooler model.
Item # Description P/N
1.
Relief Valve 334-0002-005
2.
Outer Assembly 116-0159-724
3.
O-Ring 219-0000-036
4.
Inner Assembly 116-0159-708
5.
Gasket 219-0000-143
6.
3/8” Hex Nut 312-1001-037
7.
Danger Label 039-0159-034
8.
Caution Label 039-0159-035
9.
Raven Label 039-0159-020
10.
Seal Kit (All Coolers) 117-0171-121
