Manual No. 016-0171-496 Rev. C 53
Service and Maintenance
7

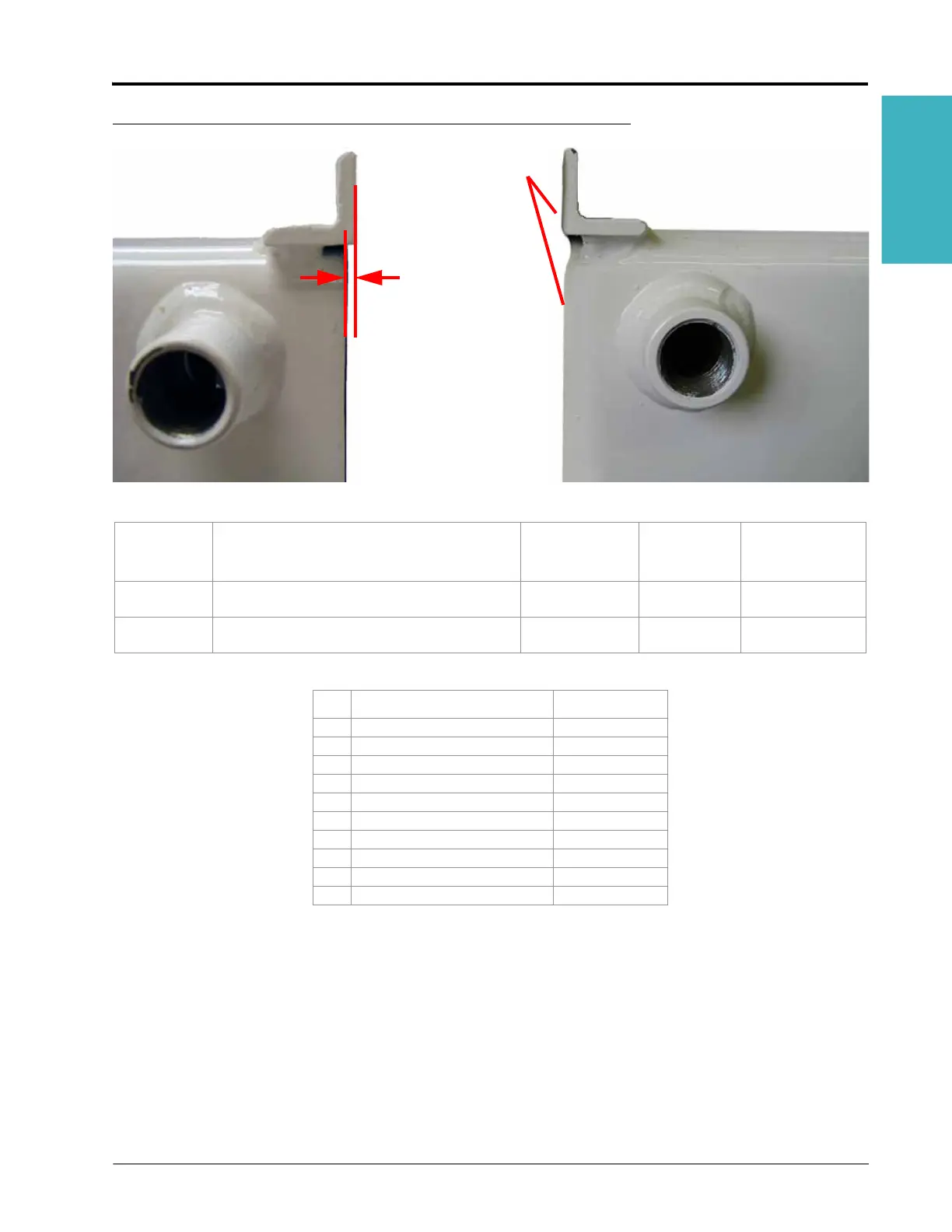

FIGURE 2. AccuFlow™ Super Cooler Seal Configurations
TABLE 2. Gasket/Seal Replacement Kit (P/N 117-0171-121) Parts List
TABLE 3. AccuFlow Gasket Retainer Kit (P/N 117-0171-121)
Configuration Description
Super Cooler
Part Number
Gasket/Seal
Replacement
Kit
Replacement
Gasket(s) Only
A
Older style cooler with flanges offset
approximately 5/64” from the cooler body.
063-0159-546
063-0159-837
117-0171-121
219-0000-142C
and 219-0000-144
B
Newer style cooler with flanges flush with cooler
body
063-0172-877
063-0173-314
117-0171-121 219-0000-143
Qty. Components P/N
1 • Installation Sheet 016-0171-129
1 • Retainer 107-0171-803
1 • Gasket 219-0000-142C
1 • Flanged Gasket 219-0000-143
1 • Retainer Gasket 219-0000-144
2 • Bolt, 3/8” x 1” L 311-0054-105
2 • Bolt, 3/8” x 1-3/4” L 311-0054-208
4 • Nut, Hex 312-1001-037
4 • Washer, Lock 313-1000-022
2 • O-Ring 219-0000-036
Configuration A
Configuration B
Surfaces Flush
Offset
