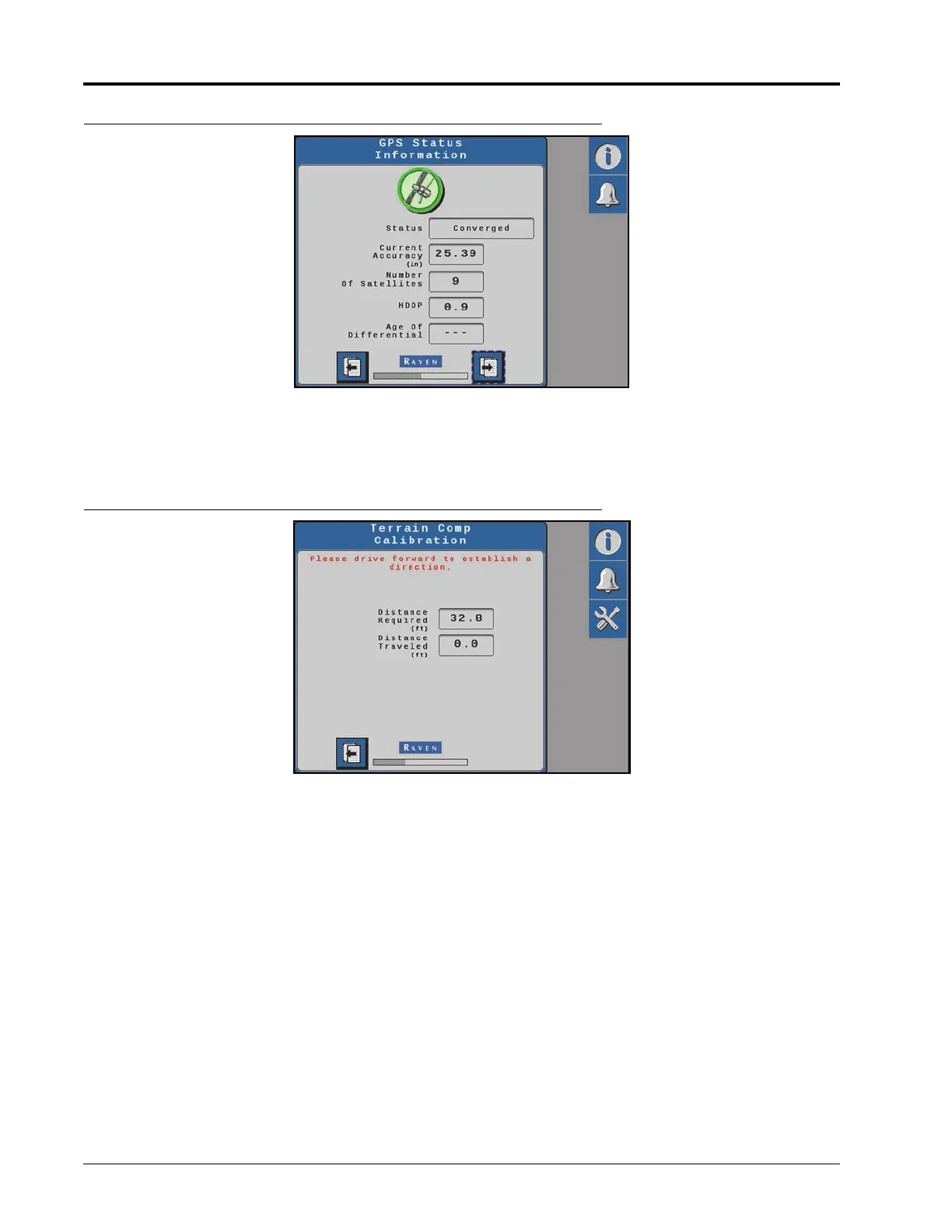

FIGURE 11. Position Accuracy Page
16. Select the Next arrow.
TERRAIN COMPENSATION CALIBRATION
FIGURE 12. Terrain Compensation Calibration Wizard
1. Drive the machine forward 33 feet [10.1 m] and park on a flat surface.
NOTE: The system must detect a converged GPS status with a green shield and a forward motion prior to
calibration to determine which direction is forward.
