DIAGNOSTICS AND TROUBLESHOOTING
SYSTEM HEALTH TESTS
System health tests are performed to diagnose and correct machine and RS1 calibration issues. The following
system health test can be performed via the RS1 system:
• Step Response Test
• Machine Test

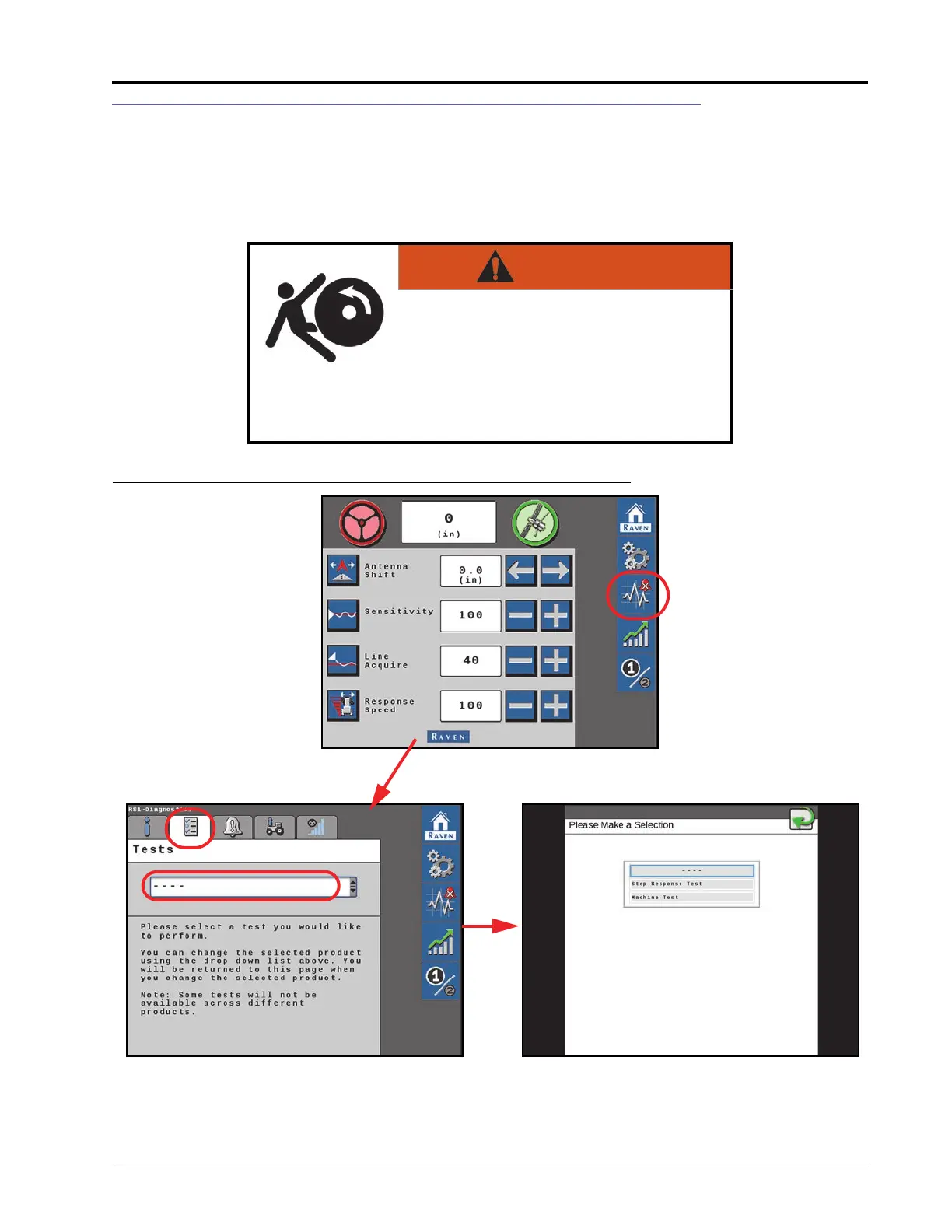

FIGURE 10. Test Selection Page
WARNING
The machine will steer automatically. While
calibrating or operating the RS1 system, be sure
the area around the vehicle is clear of people and
obstacles before engaging the steering system.
To disengage auto-steering at any time, turn the
steering wheel or select the on-screen Stop
button.
To Next Page
