DIAGNOSTICS AND TROUBLESHOOTING
GPS STATUS

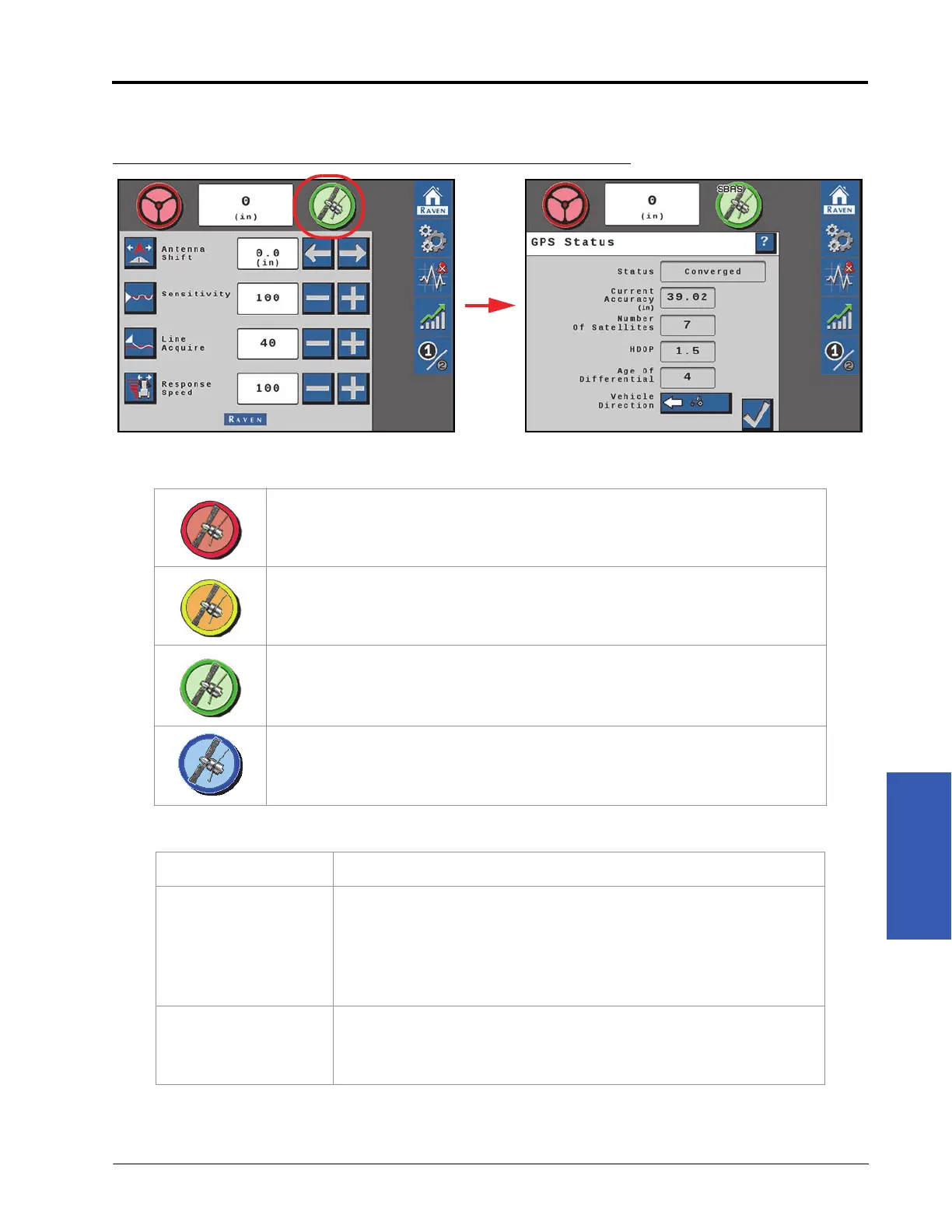

FIGURE 4. Home Page
The following are common GPS status or mode information which may occur while the RS1 system is engaged
Press the GPS icon to display the GPS Status page.
No GPS information is being detected in the RS1 system.
GPS signals are not converged or GPS is converged and a warning DTC is present.
GPS signals are converged and no warning DTCs are active.
NOTE: Both the steering wheel and GPS icons must be green in order to
engage the RS1 system.
GPS RTK-L or RTK Pro solutions are converged and actively being used.
Display Message
Status
Displays the selected GPS convergence status.
•Error
•No Signal
•Converging
•Converged
Current Accuracy
Value displayed is the horizontal standard deviation reported by the
GPS receiver.
