Raven RS1 - Machine Settings; Machine Configuration and Offsets

CHAPTER
5
016-4010-001 Rev. J 27
CHAPTER 5 MACHINE SETTINGS

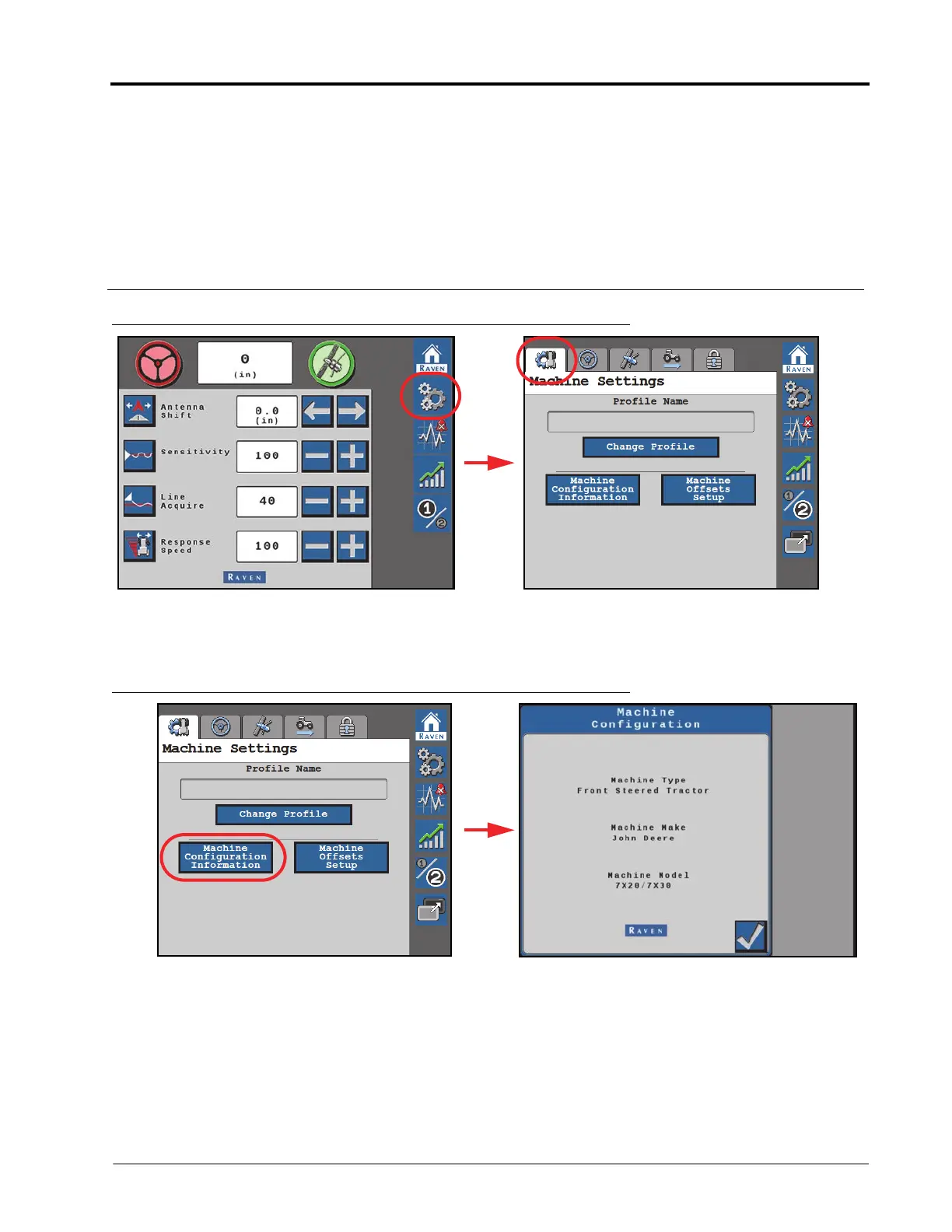

FIGURE 1. Machine Settings Page
The Machine Settings page provides access to the machine tunesets and configurations which were entered
during the initial system calibration.
FIGURE 2. Machine Configuration Page
• The Change Profile button allows the user to select an existing tuneset or create a new machine tuneset.
• The Machine Configuration Information button allows the operator to view the profile which was entered
during the calibration process. Settings cannot be changed unless the RS1 system is recalibrated. Press the
Accept button in the lower-right corner of the page to return to the Machine Settings page.
• The Machine Offsets Setup button allows the user to view and adjust the following:
