CHAPTER 3
12 Raven RS1™ and RS Lite™ Calibration and Operation Manual
GPS CALIBRATION

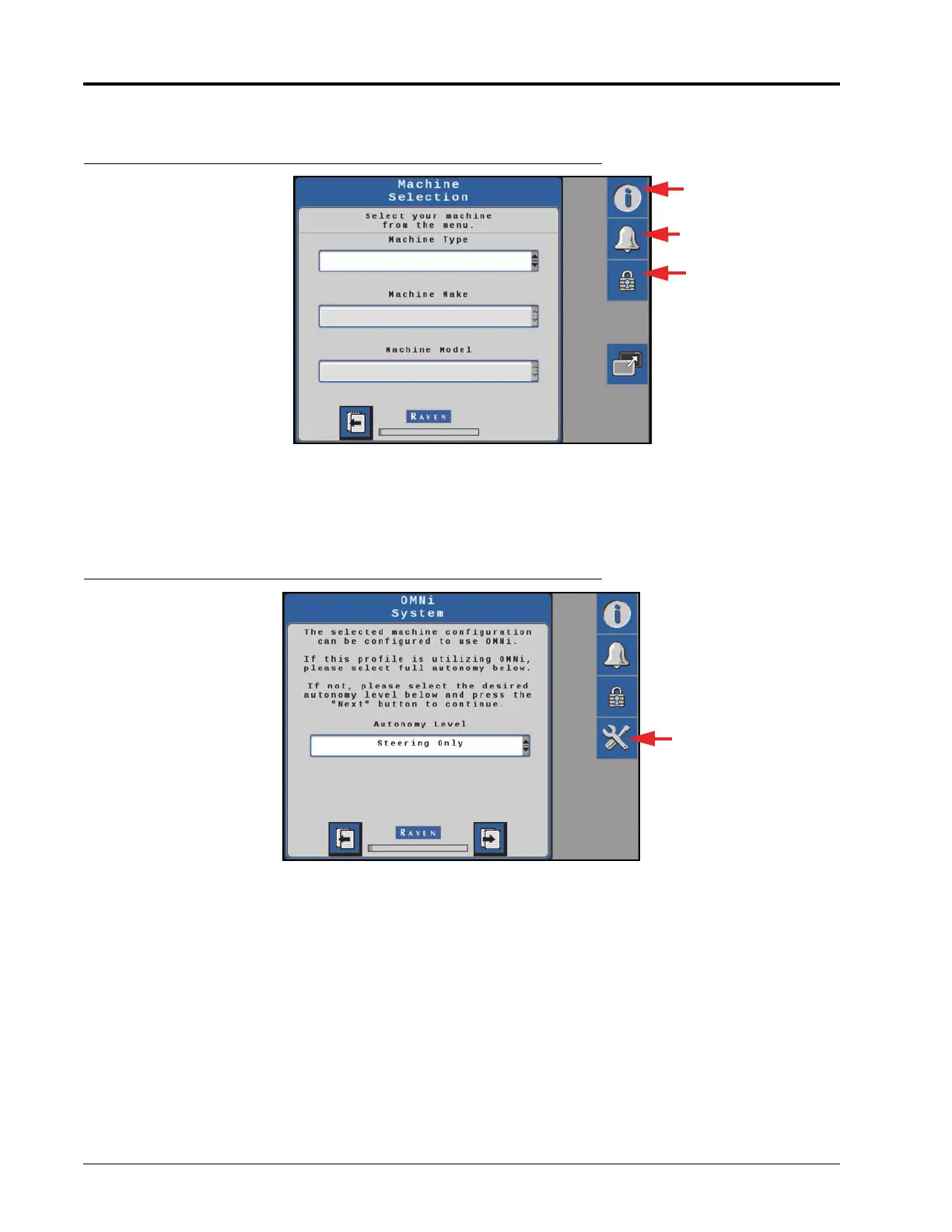

FIGURE 3. Machine Selection Page
1. Select the Machine Type, Machine Make, and Machine Model from the Machine Selection drop-down boxes.
2. Select the Next arrow.
3. Use the drop-down list to select one of the following options for devices installed on a OMNi system.
FIGURE 4. OMNi System Enable Page
NOTE: The OMNiDRIVE™ System page will only display when calibrating an RS Lite with a compatible tractor
or any combine machine type.
GPS Only. Stream GNSS correction information only. Select this option for guidance only applications or to stream
corrections to a separate automated steering system.
Steering Only. Use the guidance and automated steering features of the device. Select this option for automated
tractor or sprayer steering applications.
Autonomy Driverless. Select this option to enable features for autonomous systems such as OMNiDRIVE.
System
Information
DTC
Feature
Unlocks
To Next Page
