Raven RS1 - Steering Setup and Tuning

CHAPTER
6
016-4010-001 Rev. J 29
CHAPTER 6 STEERING SETUP

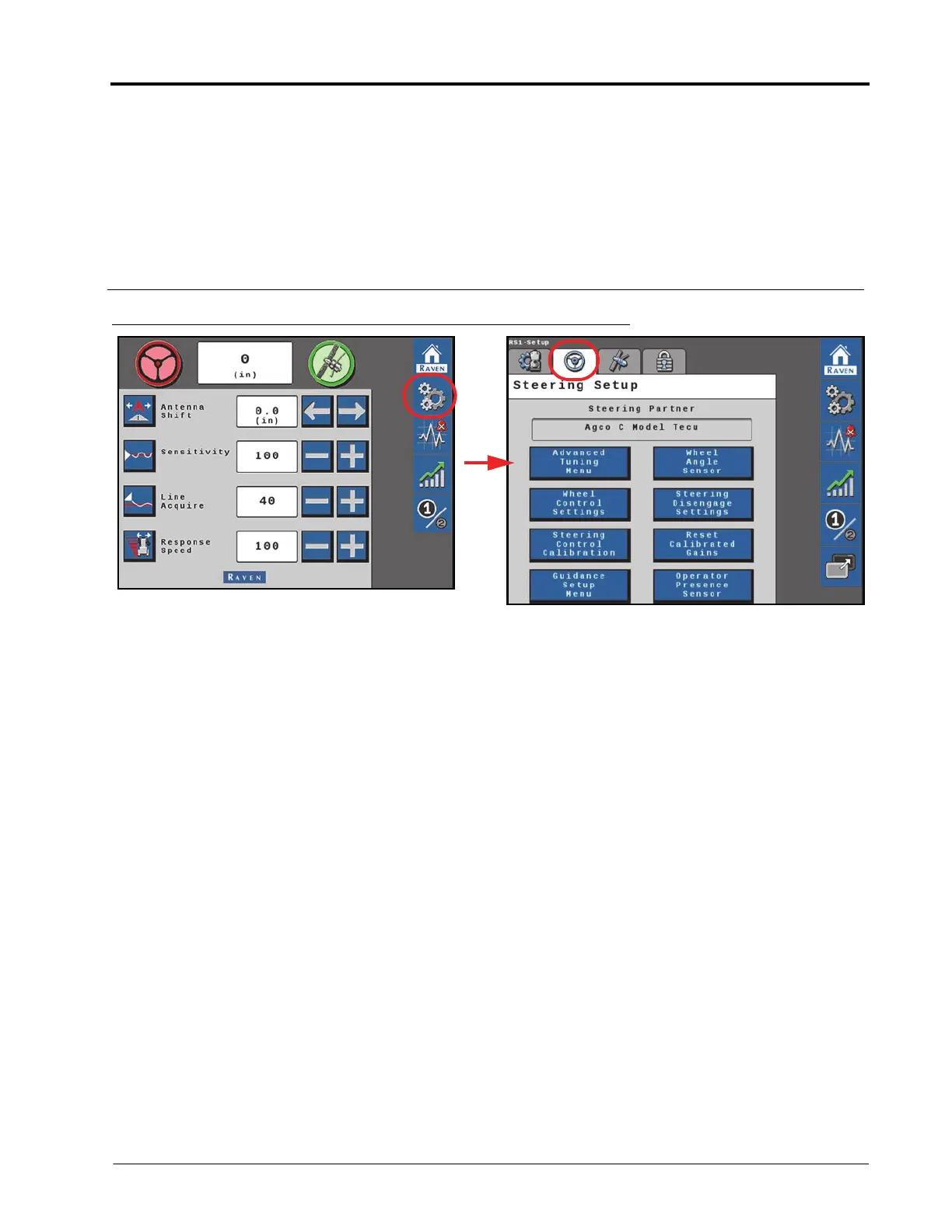

FIGURE 1. Steering Setup Page
The Steering Setup page displays the steering partner that the RS1 unit communicates with during steering
operation. The Steering Setup page contains the functions that allow the operator to fine-tune the steering
system.
NOTE: The Steering Setup tab is hidden from view if “GPS Only” was selected during the RS1 system
calibration.
