CHAPTER 10
78 Raven RS1™ and RS Lite™ Calibration and Operation Manual

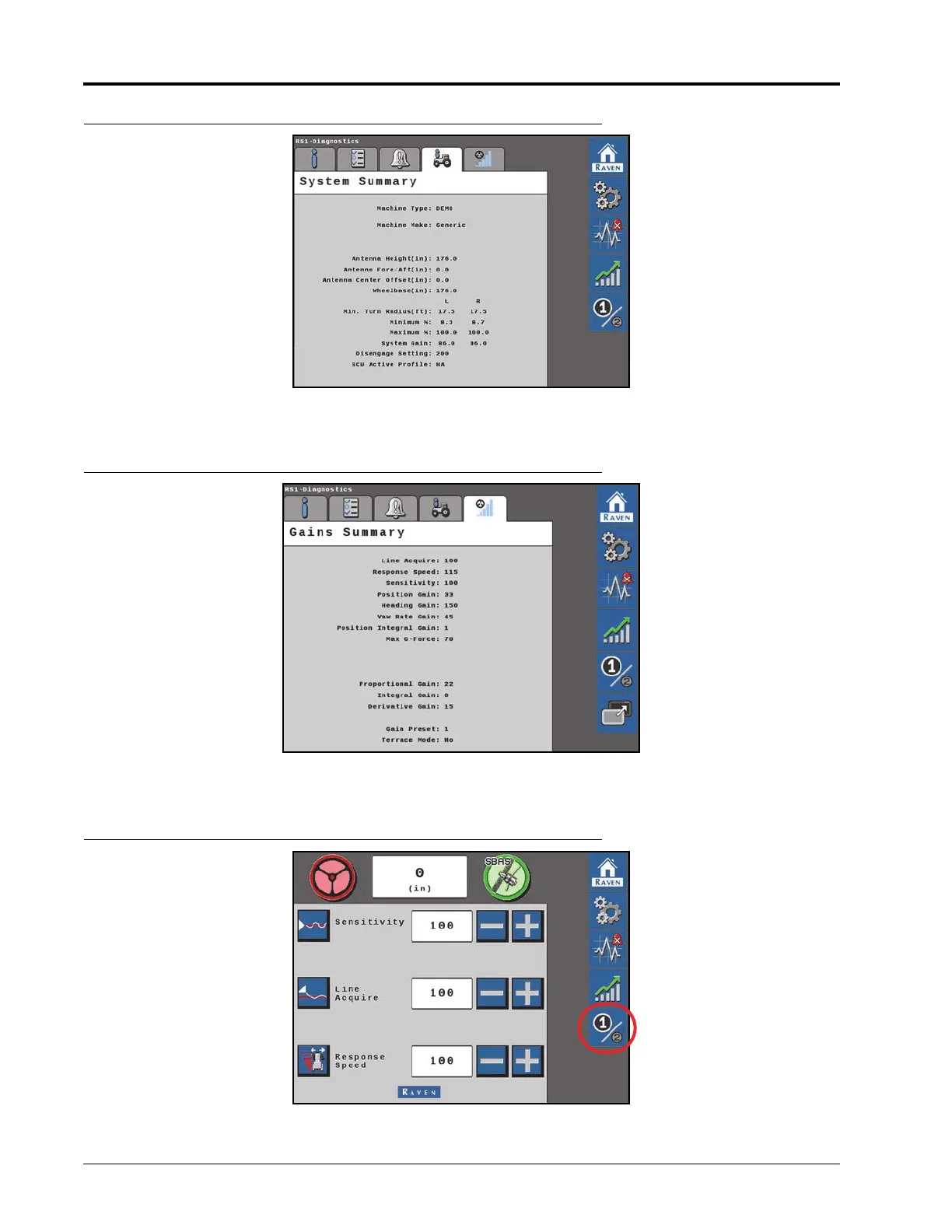

FIGURE 21. System Summary Page
The System Summary page displays the machine settings and calibrated steering settings for the RS1 system.
FIGURE 22. Gains Summary Page
The Gains Summary page displays all of the advanced steering settings used to steer the machine.
FIGURE 23. Preset Steering Gains
To Next Page
