Raymarine C120 Installation Manual

6 C-Series Displays Installation Manual
Dimensions

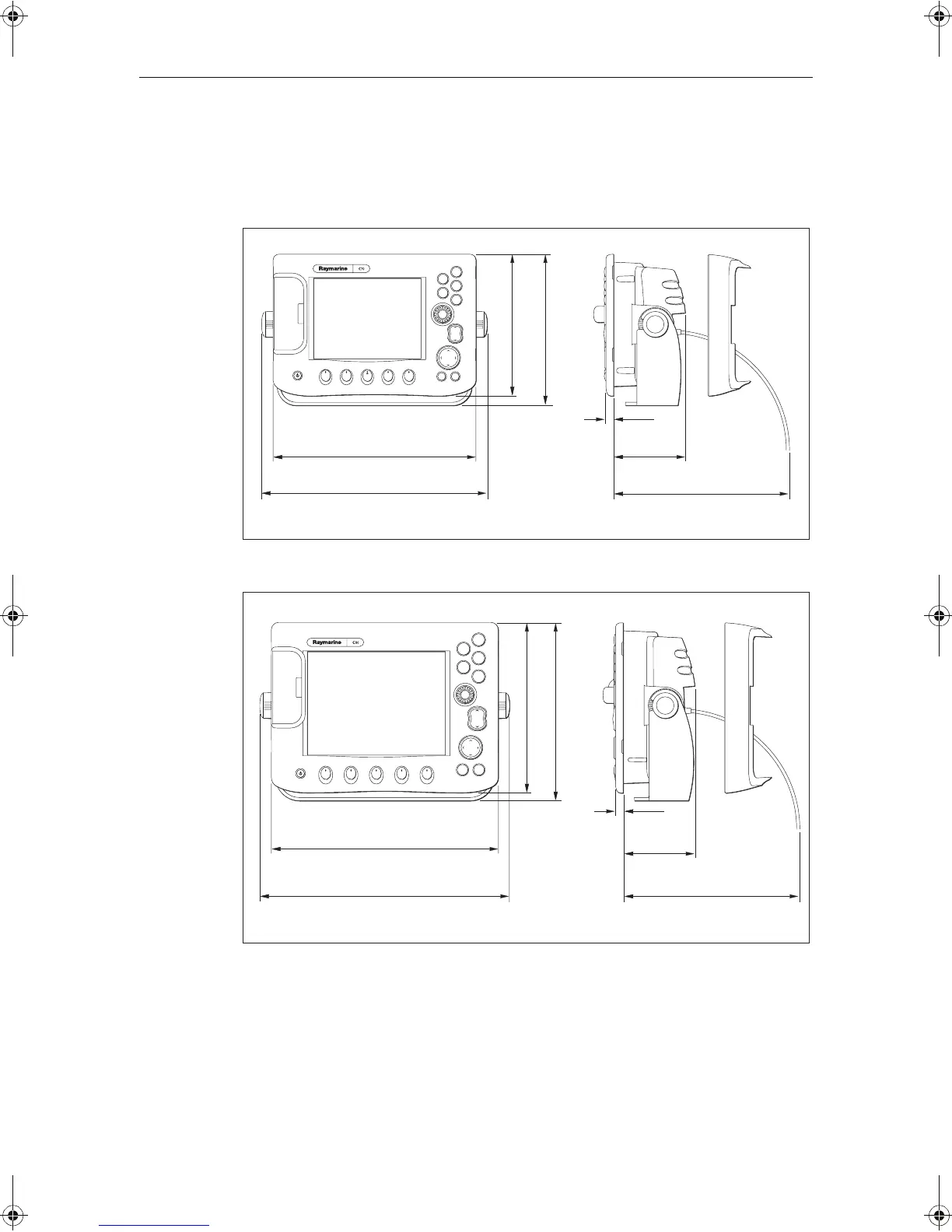

The dimensions for your C-Series display are:
C70 Display
C80 Display
PAGE
ACTIVE
WPTS
MOB
MENU
DATA
CANCEL
OK
RANGE
IN
OUT
253 mm (10 in)
282 mm (11.1 in)
9.5 mm
(0.375 in)
89.4 mm
(3.5 in)
220 mm (8.66 in)
plug clearance
177 mm (6.96 in) 189 mm (7.44 in)
D6612-1
RANGE
CANCELOK
IN
OUT
PAGE
ACTIVE
WPTS
MOB
MENU
DATA
283 mm (11.14 in)
312 mm (12.3 in)
9.5 mm
(0.375 in)
89.3 mm
(3.5 in)
220 mm (8.66 in)
plug clearance
212.5 mm (8.4 in)
222 mm (8.75 in)
D6613-1
87020-3.book Page 6 Tuesday, March 7, 2006 11:02 AM

Raymarine C120 Specifications

General

Display Size	12.1 inches
GPS	Yes
Chartplotter	Yes
Radar Compatible	Yes
Waterproof Rating	IPX6
Resolution	800 x 600 pixels
Display Type	Color LCD
Fishfinder Compatible	Yes
NMEA	NMEA 0183
GPS Receiver	12 channel
Chart Compatibility	Navionics
Radar Compatibility	Raymarine radar systems
Sonar Compatibility	Raymarine DSM Digital Sounder Modules
Input Voltage	10-32V DC
Weight	9.2 lbs
