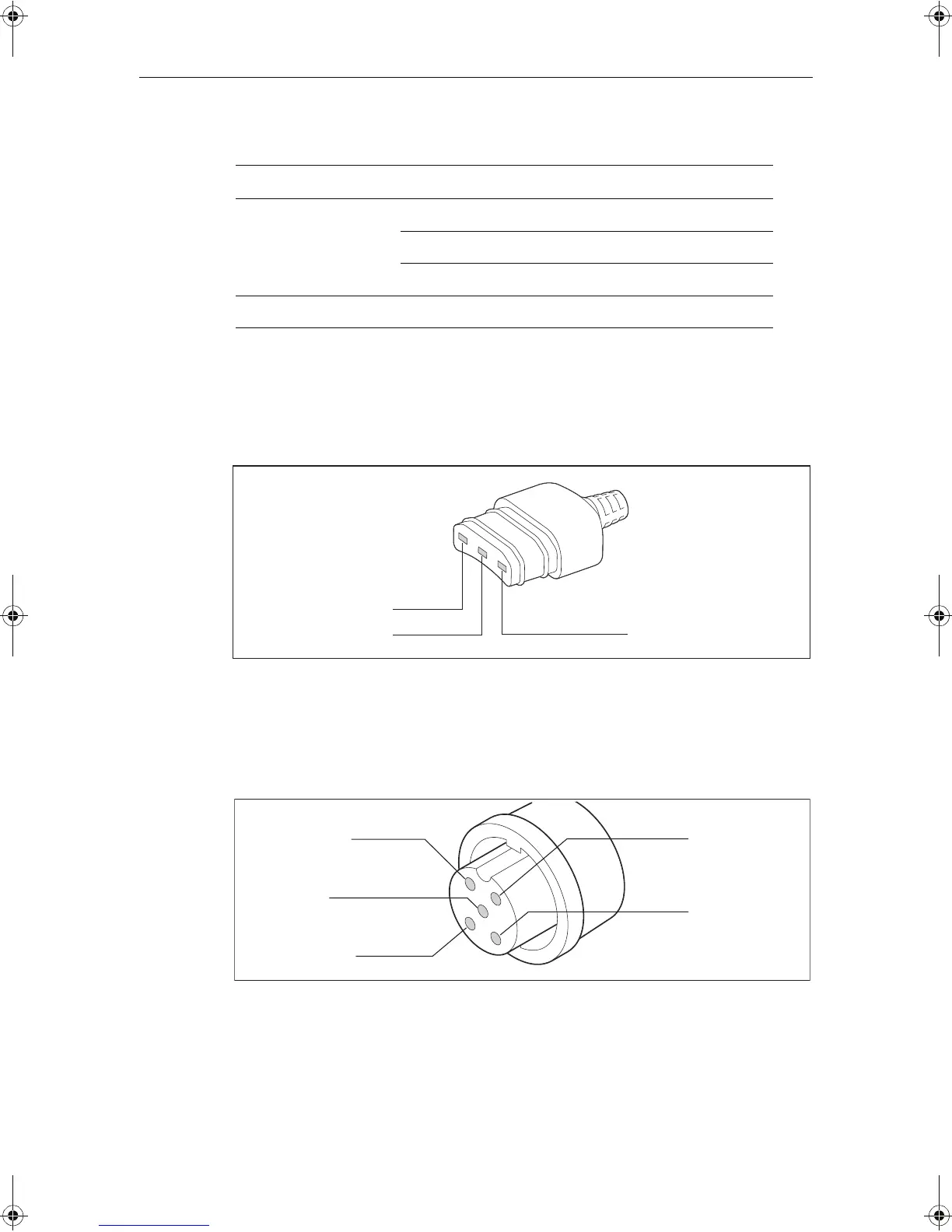

Chapter 3: Installation 29
Fuse, circuit breaker and switch ratings
SeaTalk cable
The SeaTalk cable is supplied with stripped tails. These should be connected to your
existing equipment using either the cable splicers supplied or by using a standard
screw terminal block.
NMEA 0183 cable
The NMEA input cable is supplied with exposed wire connecting tails.These should be
connected to your existing NMEA instruments using suitable connector blocks as
follows:
SeaTalk
2
(not supplied)
Use this cable to connect to third party equipment or SeaTalk
2
instruments.
Radar scanner? Device Rating
No
with fuse 6.3 amp anti-surge fuse
with isolator switch 10amp
with thermal circuit breaker 5 amp
Yes Refer to the fuse notification in the scanner handbook.
Red (+12V)
Yellow (+12V)
Drain (Screen)
D9112-1
D9019-1
Not connected
Brown
NMEA Input (-ve)
common
NMEA Output (-ve)
common
NMEA Output (+ve)
NMEA Input (+ve)
Green
Screen
Yellow
White
87020-3.book Page 29 Tuesday, March 7, 2006 11:02 AM
