Raymarine C120 Installation Manual

18 C-Series Displays Installation Manual

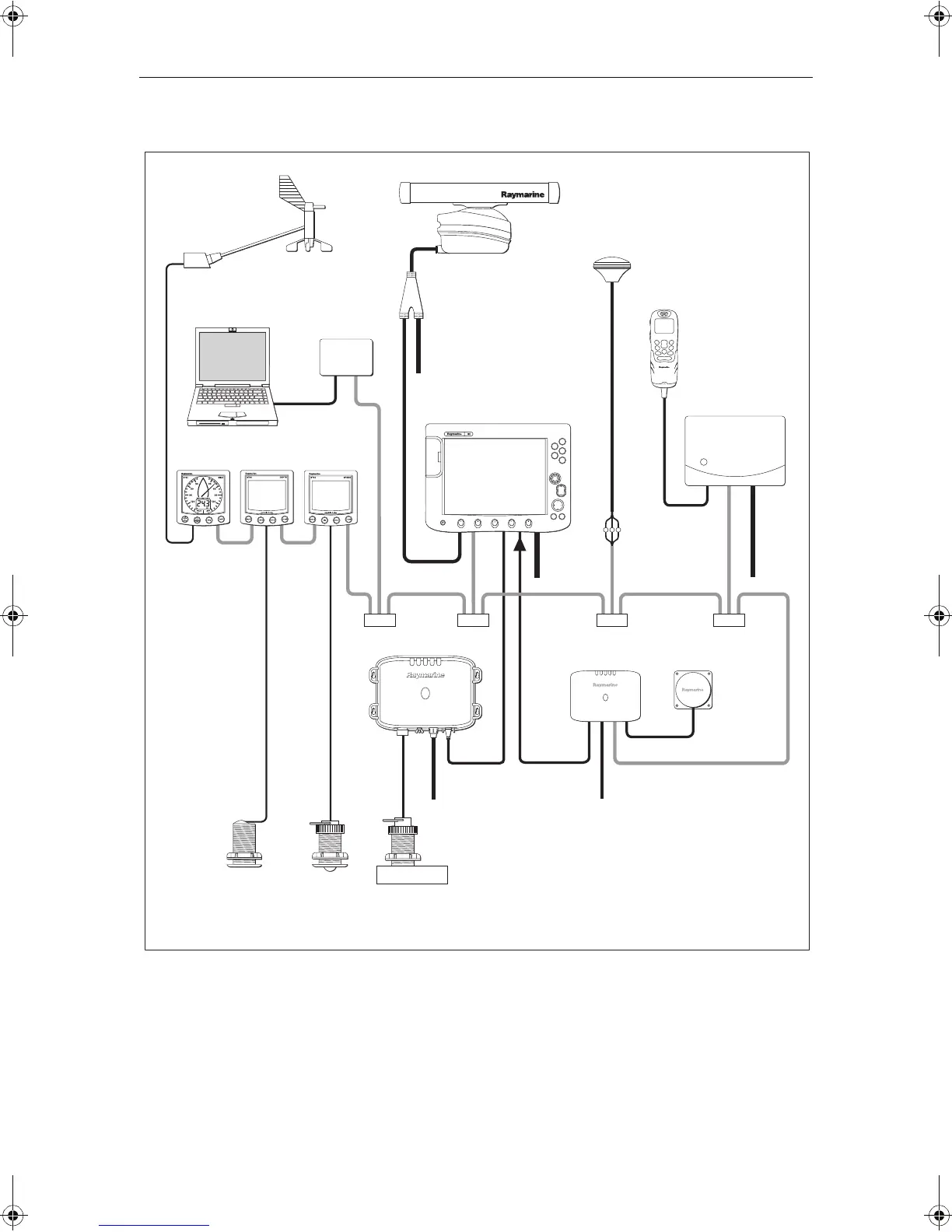

Integrated system 2
In this system:
• PC displays instrument information including route and waypoint details.
• Smart heading sensor provides fast heading data for MARPA and radar overlay.
• Autopilot provides power for SeaTalk.
RANGE
CANCELOK
PAGE
ACTIVE
WPTS/
MOB
MENU
DATA
IN
OUT
MENU
CH
OK
16/9
HI/LO
SCAN WATCH
SQ
RAY240
WX
Power
IN
Power
IN
Fast
Heading Sensor Compass
D6623-3
Wind Transducer
Wind
display
Speed
display
Depth
display
DSM 250 or 300
C120
SeaTalk
SeaTalk
NMEA
RS232
Interface box
RS232
Depth
Transducer
Speed
Transducer
Transducer
Power IN
(12v or 24v)
Open Array:
4 ft, 4kW - 12v/24v
6 ft, 10kW - 24v
Power
IN
Base
Transceiver Unit
Power
IN
GPS
VHF/DSC
Radio
Note: If you select the depth data box it will show SeaTalk transducer depth.
0183
DSM
Radar
87020-3.book Page 18 Tuesday, March 7, 2006 11:02 AM

Raymarine C120 Specifications

General

Display Size	12.1 inches
GPS	Yes
Chartplotter	Yes
Radar Compatible	Yes
Waterproof Rating	IPX6
Resolution	800 x 600 pixels
Display Type	Color LCD
Fishfinder Compatible	Yes
NMEA	NMEA 0183
GPS Receiver	12 channel
Chart Compatibility	Navionics
Radar Compatibility	Raymarine radar systems
Sonar Compatibility	Raymarine DSM Digital Sounder Modules
Input Voltage	10-32V DC
Weight	9.2 lbs
