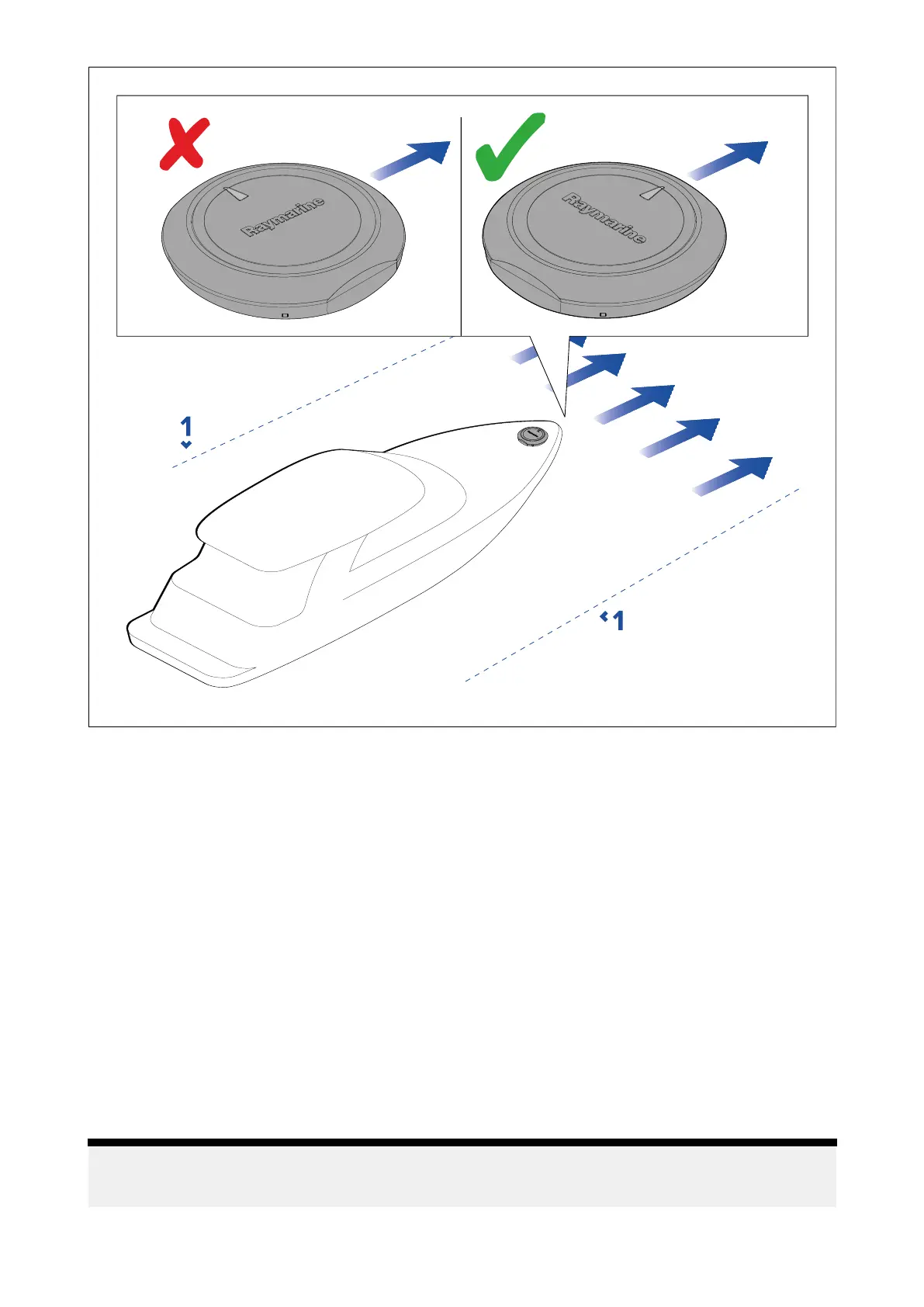

1.V essel’slongitudinalaxis.
7.4Compasssafedistance
Topreventpotentialinterferencewiththevessel'smagneticcompasses,ensureanadequate
distanceismaintainedfromtheproduct.
Whenchoosingasuitablelocationfortheproductyoushouldaimtomaintainthemaximumpossible
distancefromanycompasses.Typicallythisdistanceshouldbeatleast1m(3.3ft)inalldirections.
Howeverforsomesmallervesselsitmaynotbepossibletolocatetheproductthisfarawayfroma
compass.Inthissituation,whenchoosingtheinstallationlocationforyourproduct,ensurethatthe
compassisnotaffectedbytheproductwhenitisinapoweredstate.
7.5EMCinstallationguidelines
RaymarineequipmentandaccessoriesconformtotheappropriateElectromagneticCompatibility
(EMC)regulations,tominimizeelectromagneticinterferencebetweenequipmentandminimizethe
effectsuchinterferencecouldhaveontheperformanceofyoursystem
CorrectinstallationisrequiredtoensurethatEMCperformanceisnotcompromised.
Note:Inareasofe xtremeEMCinterference,someslightinterferencemaybenoticedonthe
product.Wherethisoccurstheproductandthesourceoftheinterferenceshouldbeseparated
byagreaterdistance.
ForoptimumEMCperformancewerecommendthatwhereverpossible:
L ocationrequirements
