Raymarine Evolution EV-2 - Seatalkng Pilot Controller Connection

11.

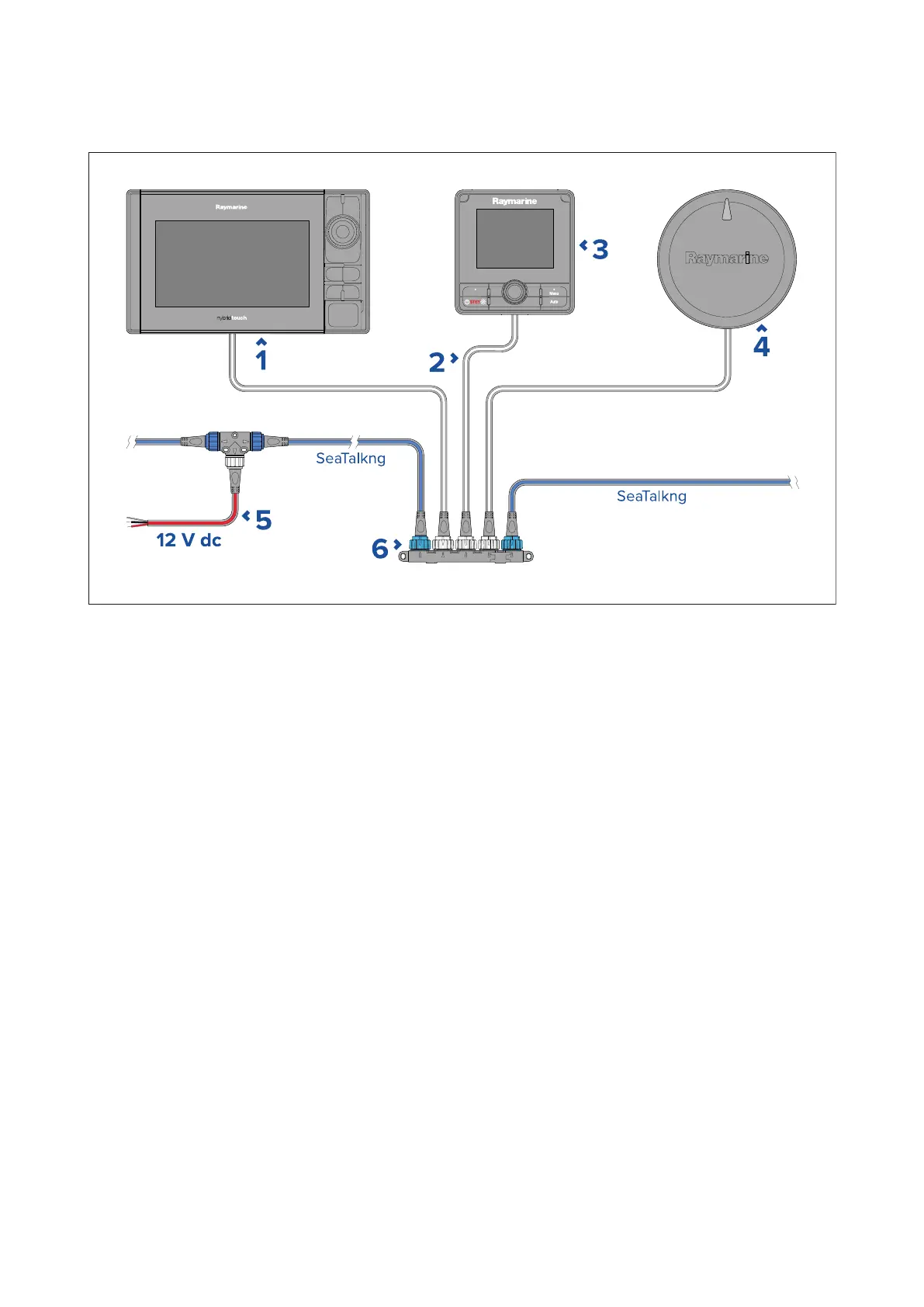

1SeaTalkngpilotcontrollerconnection
ASeaTalkng®pilotcontrollerisconnecteddirectlyintothesameSeaTalkng®backboneastheEV
autopilot.
1.Sea Talkng®MFD(MFDsrequireaseparatepowersupply.)
2.SeaTalkng®spurcable
3.SeaTalkng®pilotcontroller(poweredfromtheSea Talkng®backbone.)
4.SeaTalkng®autopilot
5.SeaTalkng®12Vdcpowersupplyconnection
6.SeaTalkng®5-wayblock
58
