Raymarine Evolution EV-2 - ECI-100 Unit Connection

9
.7ECI-100unitconnection
TheECI-100canbeusedtoconnecttheEV-2toacompatibleDrive-by-wiresteeringsystem.
PleaserefertotheECIproductpagesontheRaymarine®websiteforthelateststeeringsystemand
enginecompatibilityinformation:www.raymarine.com/multifunction-displays/accessories/engine-
interfacing/eci-100

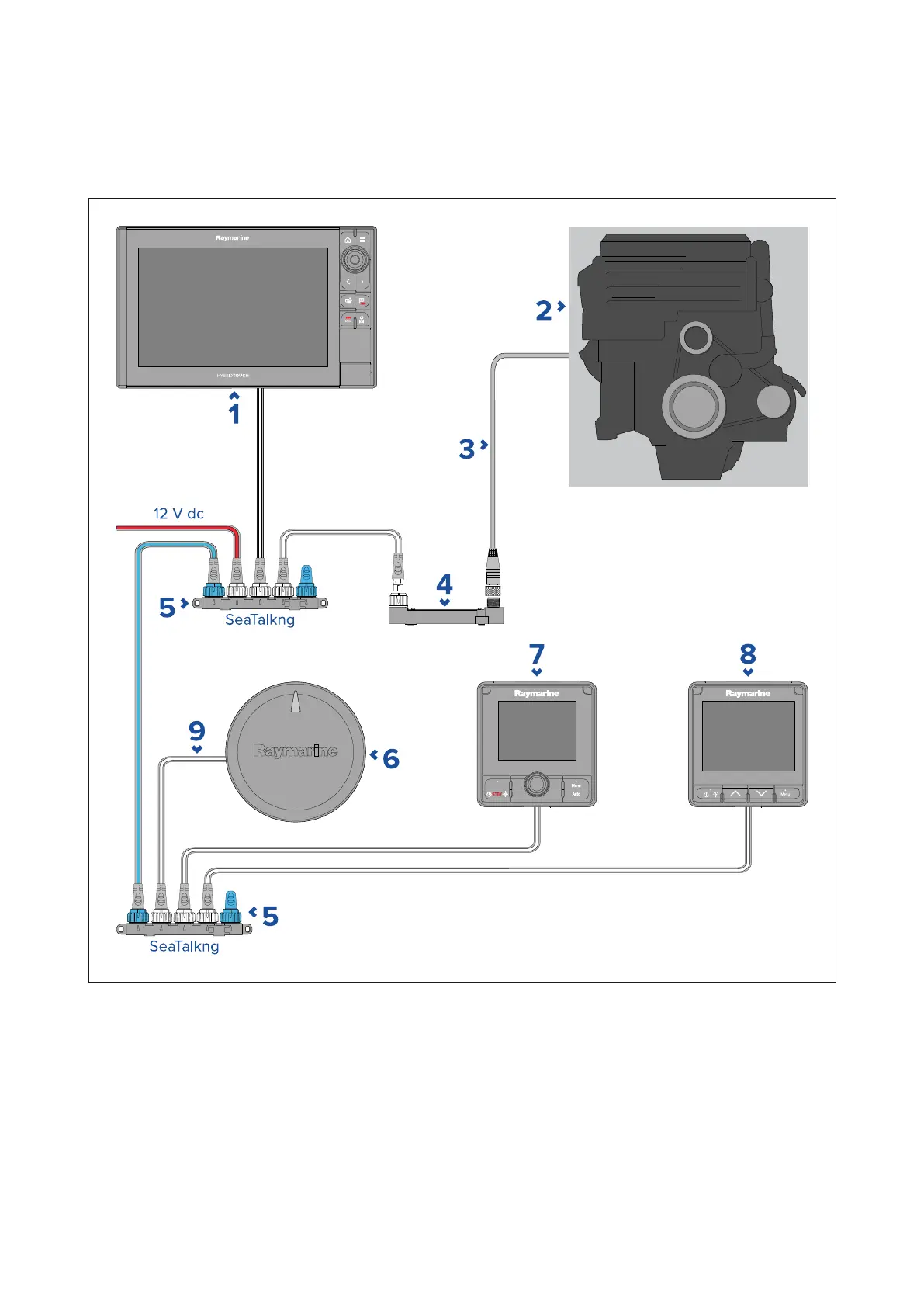

1.MFD
2.V esselengine/steeringsystem
3.Enginespecificadaptorcable
4.ECI-100
5.SeaTalkng®5–wayblock
6.EV-2
7.SeaTalkng®Pilotcontroller
8.SeaTalkng®Instrumentdisplay
9.SeaTalkng®spurcable(connectingEV-2totheSeaTalkng®backbone).
