Raymarine Evolution EV-2 - Seatalk Pilot Controller Connection

11.2Sea
Talk®pilotcontrollerconnection
TheSeaTalk®toSea Talkng®convertercanbeusedtoenablecontrolofSea Talkng®autopilotsusing
legacySea Talk®pilotcontrollers.OtherSea Talk®devicescanbeconnectedtotheSea Talkng®
backboneinthesameway.

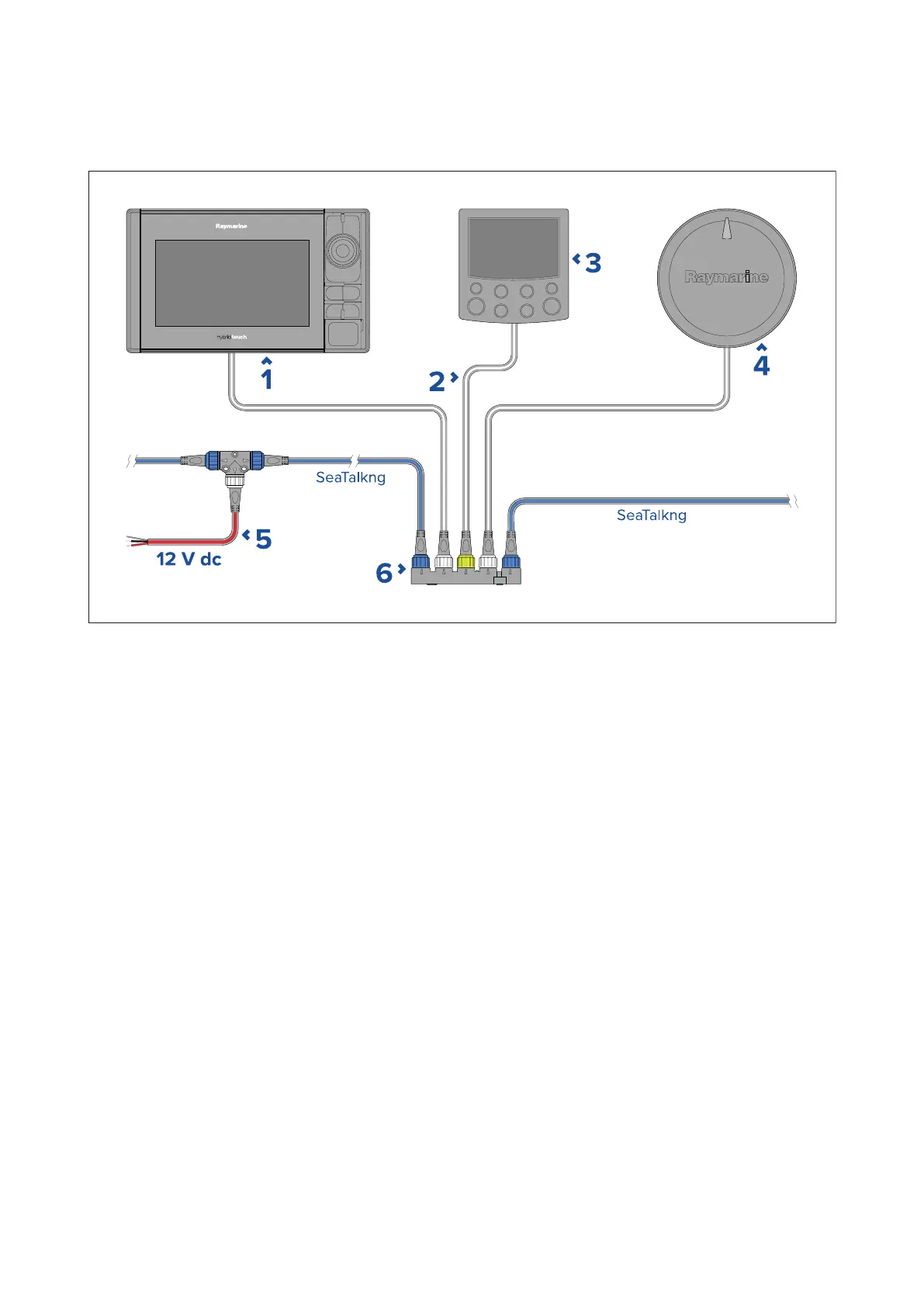

1.Sea Talkng®MFD(MFDsrequireaseparatepowersupply.)
2.SeaTalk®toSeaTalkng®adaptorcable(A22164)
3.SeaTalk®pilotcontroller(poweredfromtheSeaTalkng®backbone.)
4.SeaTalkng®autopilot
5.SeaTalkng®12Vdcpowersupplyconnection
6.SeaTalk®toSea Talkng®converter
Pilotcontrollerconnections59
