.1Driveinterfaceunitconnection—SeaStarSolutions/Teleflex
Optimus
TheEV-2connectstoaSeaStarSolutions/T eleflexOptimusdriveinterfaceunitviaDeviceNet
connections.

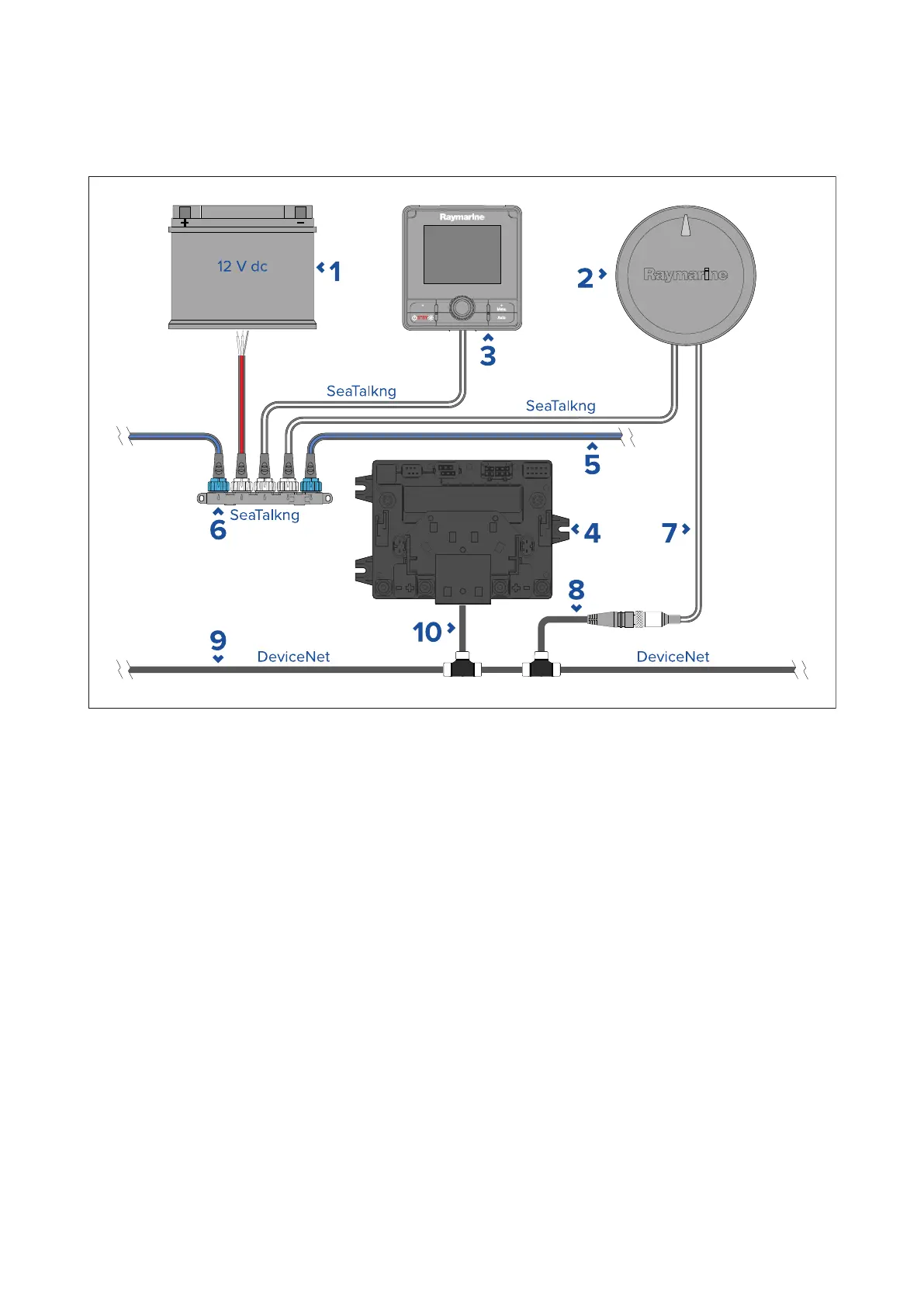

1.12Vdcpowersupply(providingpowertoSea Talkng®.)
2.EV-2
3.Autopilotcontroller
4.SeaStarSolutions/T eleflexOptimusdriveinterfaceunit(assuppliedbySeaStarSolutions
/Teleflexordealer.)
5.SeaTalkng®backbone
6.SeaTalkng®5–wayblock
7.DeviceNetcable(female)(assuppliedbySeaStarSolutions/Teleflexordealer.)
8.DeviceNetspurcable(assuppliedbySeaStarSolutions/Teleflexordealer.)
9.DeviceNetbackbone/bus
10.DeviceNetspurcable(assuppliedbySeaStarSolutions/Teleflexordealer.)
