Raymarine Evolution EV-2 - EV-2 Surface Mounting

8.
1EV-2Installation
SurfacemountingtheEV-2
ThesuppliedDeckmountingkitisusedtosurfacemounttheunit.
Ensurethatthechosenlocationmeetstheproduct’slocationrequirements;referto:
p.32—Locationrequirements—EV–1andEV–2
Important:
Theinstallationmustonlybeperformedwiththevesseleitheronahardstanding,ortied-up
alongsideapontoonorberth.

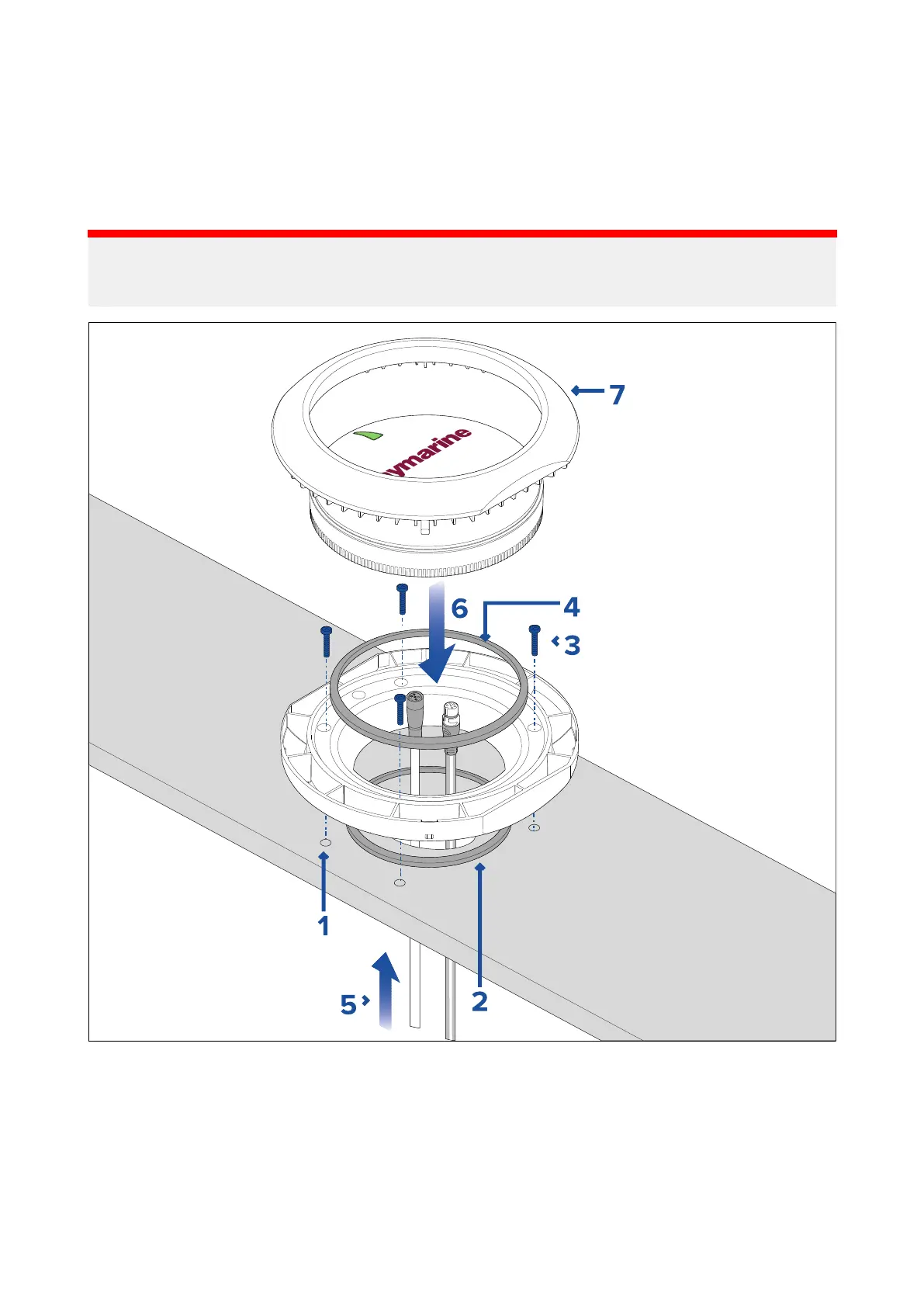

1.UsingtheMountingtraytemplate(87170),drill4holesinthemountingsurface ,plusa22mm(7/8
in)holefortheSeaTalkng®cable.
2.PlacethesmallsealingringinthegroovelocatedonthebottomoftheMountingtray.
3.Securethetraytothemountingsurfaceusingthe4xfixings,supplied.
4.PlacethelargesealingringintothegrooveontheuppersideoftheMountingtray.
5.PulltheSeaTalkng®andDeviceNetcablesthroughthemountingsurfaceholeandtheMounting
tray.Pluginthecableconnectorsontheundersideoftheunitandsecureasfollows:
•SeaTalkng®cable—securebyrotatingthelockingcollarclockwise2clicks.
•DeviceNetcable—securebyturningthecableconnector’scollarclockwiseuntiltight.
36
