4.GroundwireconnectstoRFgroundpoint,ifnogroundpointisavailableconnecttothebattery
negative(-)terminal.

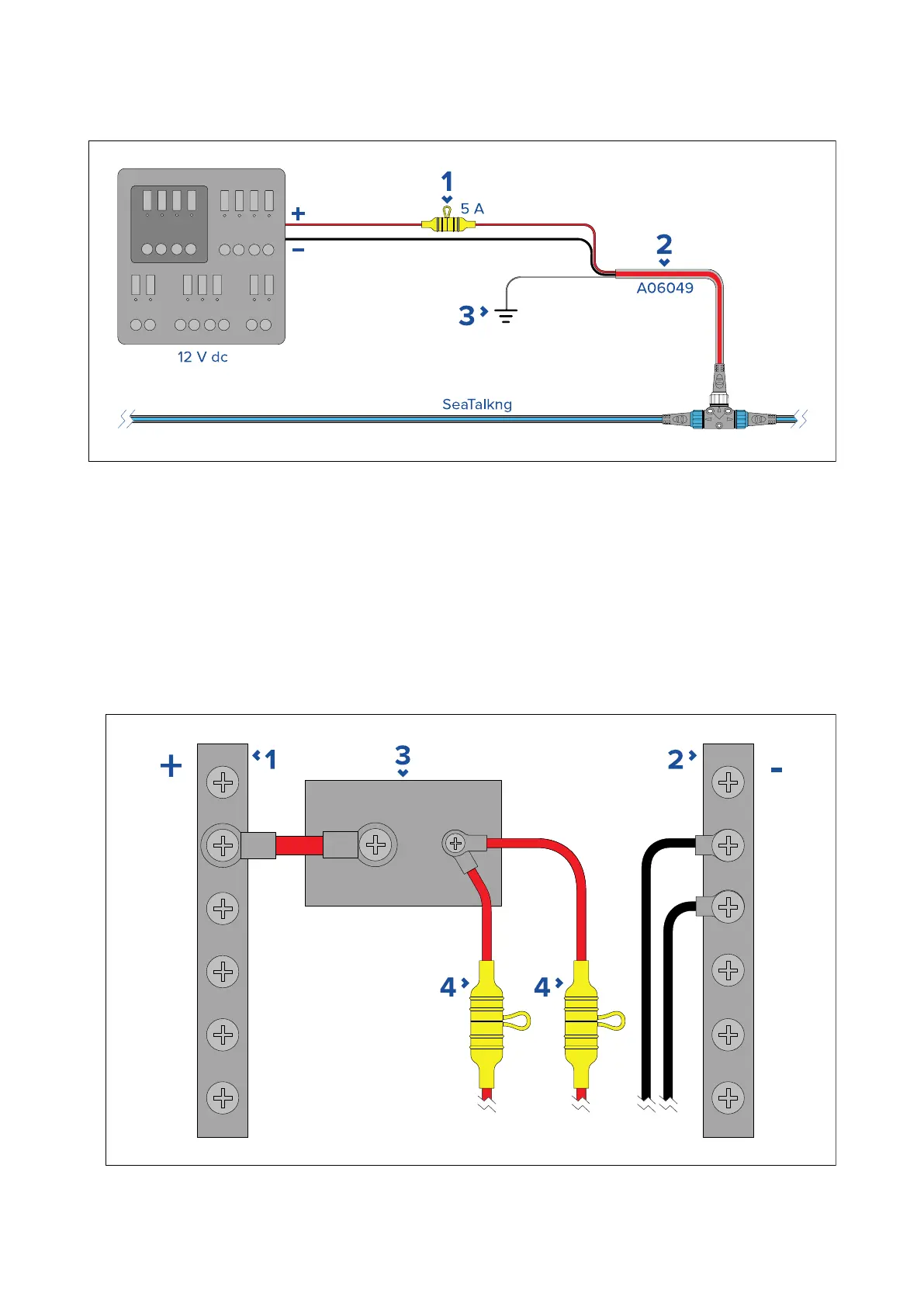

Implementation—connectiontodistributionpanel
1.W aterprooffuseholderwith5Ainlinefusemustbefitted(notsupplied).
2.SeaTalkng®powercable.
3.RFGroundconnectionpointfordrainwire.
•Ideally,theSeaTalkng®powercableshouldbeconnectedtoasuitablebreakerorswitchonthe
vessel'sdistributionpanelorfactory-fittedpowerdistributionpoint.Itisrecommendedthata5A
inlinefuseisfittedtothered(positive)wireoftheSea Talkng®powercable.
•Thedistributionpointshouldbefedfromthevessel’sprimarypowersourceby8AWG(8.36mm
2
)
cable.
•Ideally,allequipmentshouldbewiredtoindividualsuitably-ratedthermalbreakersorfuses,with
appropriatecircuitprotection.Wherethisisnotpossibleandmorethan1itemofequipmentshares
abreaker,useindividualin-linefusesforeachpowercircuittoprovidethenecessaryprotection.
1.P ositive(+)bar
2.Negative(-)bar
3.Circuitbreaker
