Raymarine SmartPilot X-Series User Manual

8 SmartPilot X-Series Commissioning & Setup Guide
Note: For more information on settings and calibration modes, refer to Chapter 2: SPX sys-
tem settings .
3. In Dealer calibration, access the vessel type screen, using disp if necessary. The
vessel type screen shows either
VESSEL or one of the vessel types ( DISPLACE ,
SEMI DISPLACE , PLANING , STERN DRV , WORK BOAT or SAIL BOAT ).
Setting vessel type
The vessel type setting automatically determines appropriate default values for
various other calibration settings. Some of these settings are checked later in this
procedure and others should not require any adjustment. The default values for each
vessel type are listed on
page 35 .
Set the vessel type as follows:
1. Use -1 or +1, or the rotary control to set the appropriate vessel type, as in the
following table.
ST6002 Controllers ST7002 and ST8002 Controllers
1 Press and hold
standby for two seconds
to enter the Calibration mode
2 When the screen shows
DISPLAY CAL ,
press
disp until you see the DEALER CAL
screen
3 Press
auto : the display will change to CAL
4 Simultaneously press -1 and +1 to enter
Dealer calibration mode
1 Press and hold
standby for two seconds to
enter the Calibration mode
2 When the screen shows
DISPLAY CAL ,
press
disp or the up and down arrows, until
you see the
DEALER CAL screen
3Press
auto : the display will change to CAL
4 Simultaneously press -1 and +1 (on the
ST7002) or the up and down arrows (on the
ST8002), to enter Dealer calibration mode
Type Description
DISPLACE Power-driven boats which do not plane
(Typically below 15 kts top speed)
SEMI DISPLACE Faster power-driven boats which do not plane
(Typically 15-20 kts top speed)
PLANING Planing boats with inboard engine(s) and shaft drives
(NOT boats with outdrives)
STERN DRV Boats with outdrives or outboard engines

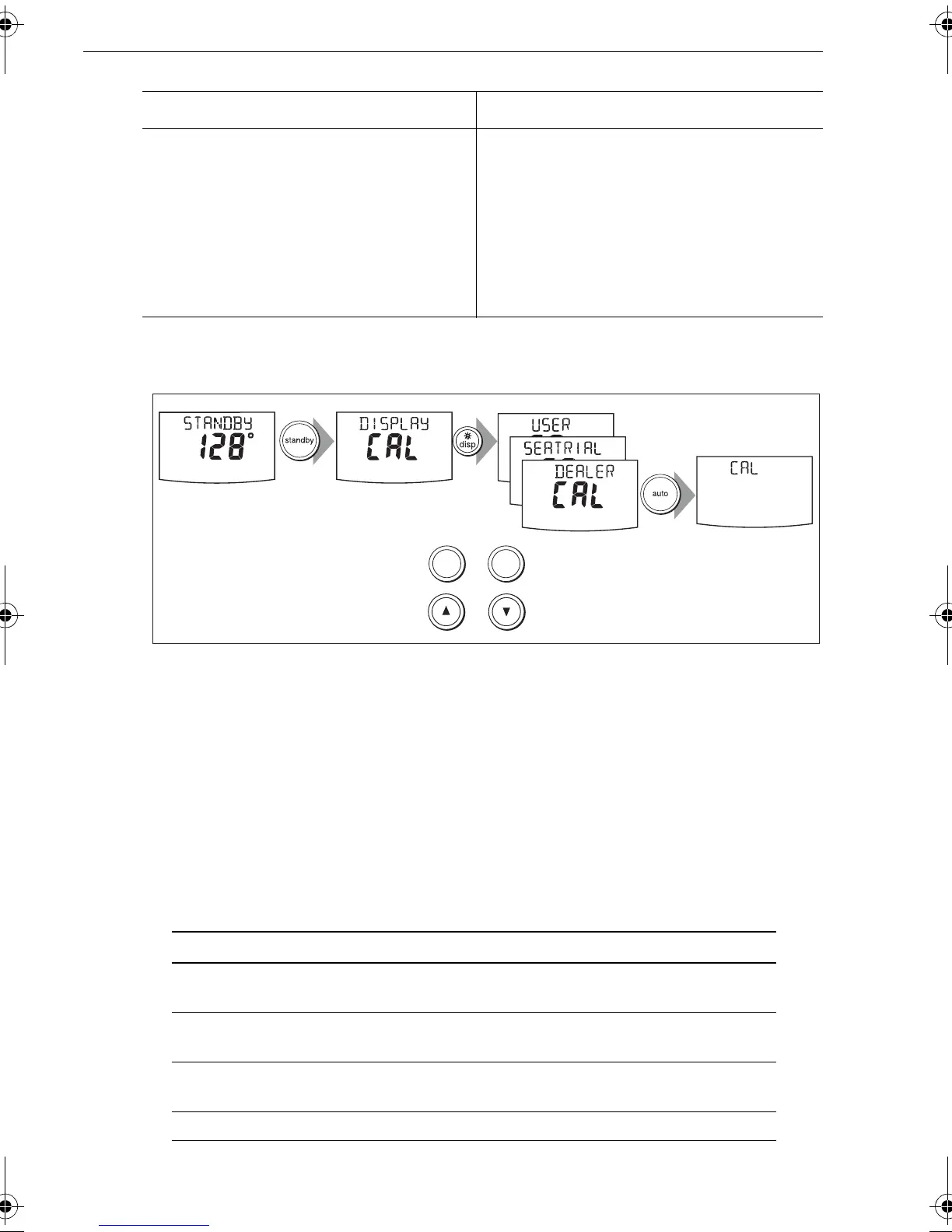

At the CAL screen, press + together to enter DEALER CAL
2 sec
x3
-1 +1
or
D10746-1
(ST8002 only)
+
81307_1.book Page 8 Wednesday, December 19, 2007 11:17 AM
