Razberi MP Series - Connecting Devices

7
razberi™ Technologies
2.2 Connecting a PC and Cameras to the razberi™
NOTE: Provide the razberi™ 3-5 minutes of start-up time prior to connecting a PC or cameras.

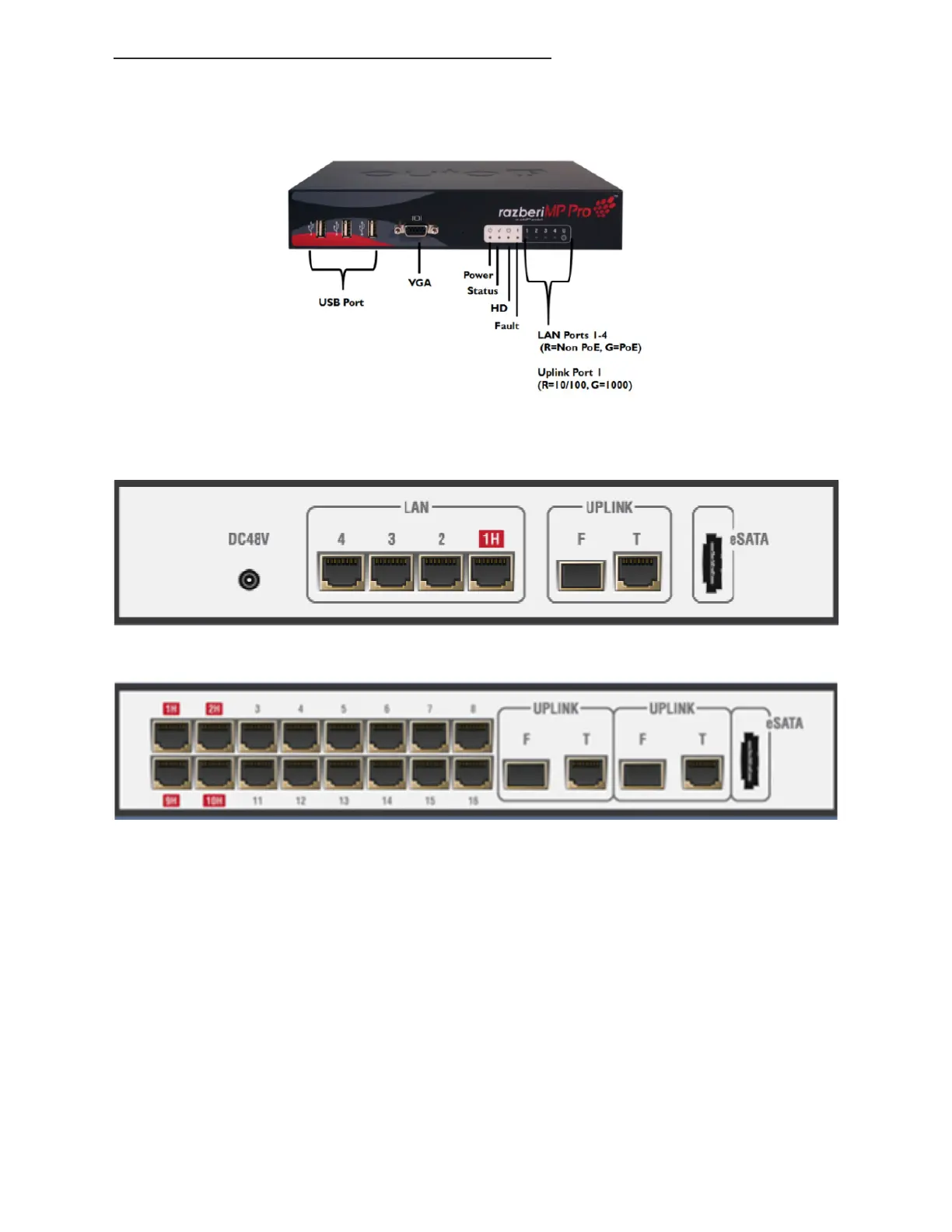

Front Panel
Figure 1
Connect the client PC or the network connection to the Uplink port. Connect cameras to the LAN ports 1H through 4 on a
razberi™ 4-port unit, or LAN ports 1H through 16 on the razberi™ 16-port unit.
16 Ports – Back Panel
