LIFTLOG 1000 – INSTALLATION AND CALIBRATION
15
2.2 Reference Sensor
The Reference sensor kit automatically enables the weigh button when the load reaches the weighing position.

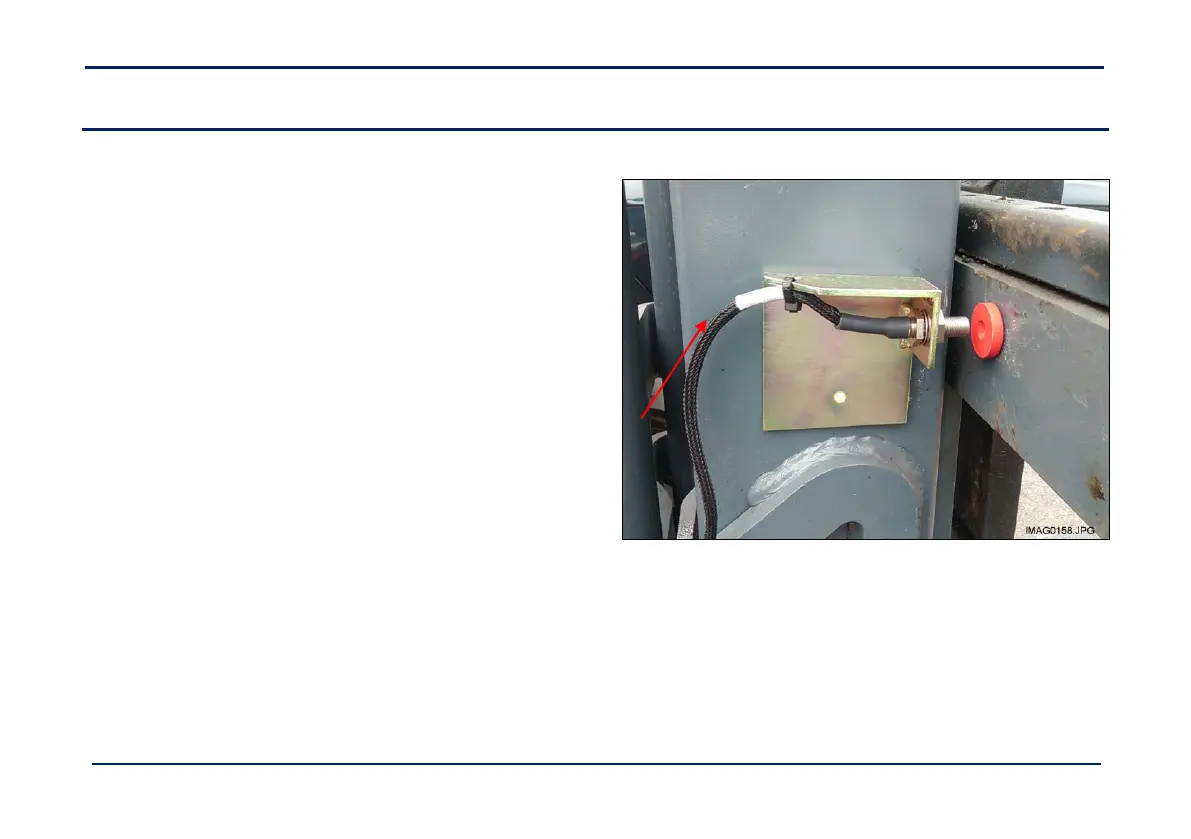

Assemble the sensor to the bracket allowing it to project at
least 15mm from the face of the bracket.
Lift the forks to the desired weighing position.
Thoroughly clean the area where the sensor bracket and
magnet are to be positioned, and both the magnet and
bracket mounting face, using a degreasing solvent.
It is recommended to attach the magnet to the hanger
carriage where shown, using theself-adhesive pad supplied.
The position of the bracket determines the weighing height
when the magnet is directly opposite the sensor.
Two M6 mounting holes are provided on the bracket.
However, it is recommended wherever possible to avoid
drilling and tapping, and to attach the bracket to the side of
the mast using the self-adhesive pad supplied.
Allow 10mm clearance between the sensor and the magnet.
NOTE: The centre portion of the self-adhesive pad S/AC/500-4-155 is to attach the magnet, while the remainder is to attach the sensor
bracket. The adhesive can be applied in temperatures down to -10°C.
To Next Page
