LIFTLOG 1000 – INSTALLATION AND CALIBRATION
16

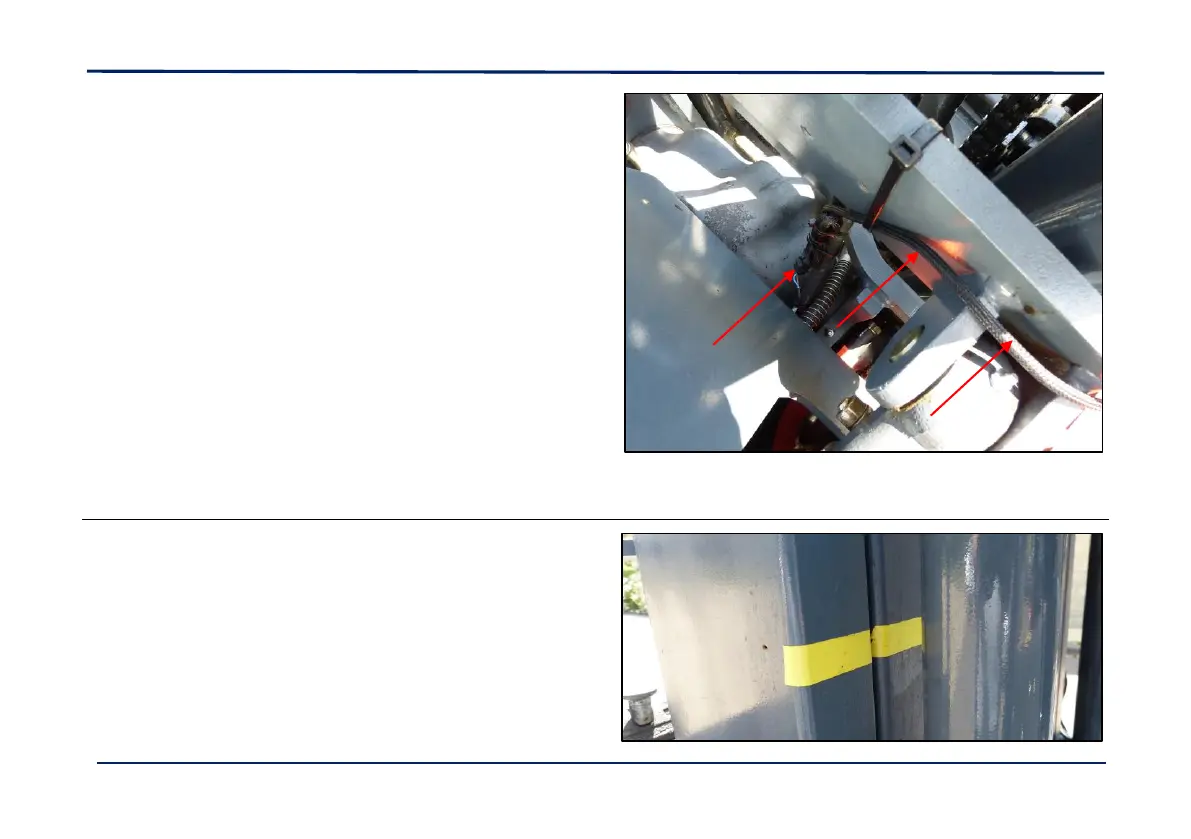

Cable-tie the sensor lead to the bracket where shown.
Connect the sensor extension lead and route in conduit back
to the Terminator.
Cable tie at regular intervals and following the existing wiring
loom where possible.
Ref. 2.4.4 for wiring connections.
2.2.1 Weighing Height without Reference Sensor
The system can also be operated without a reference sensor.
In this case it is recommended to apply suitable markers on
the mast to indicate when the weighing position is reached.
