LIFTLOG 1000 – INSTALLATION AND CALIBRATION
17
2.3 Head Unit

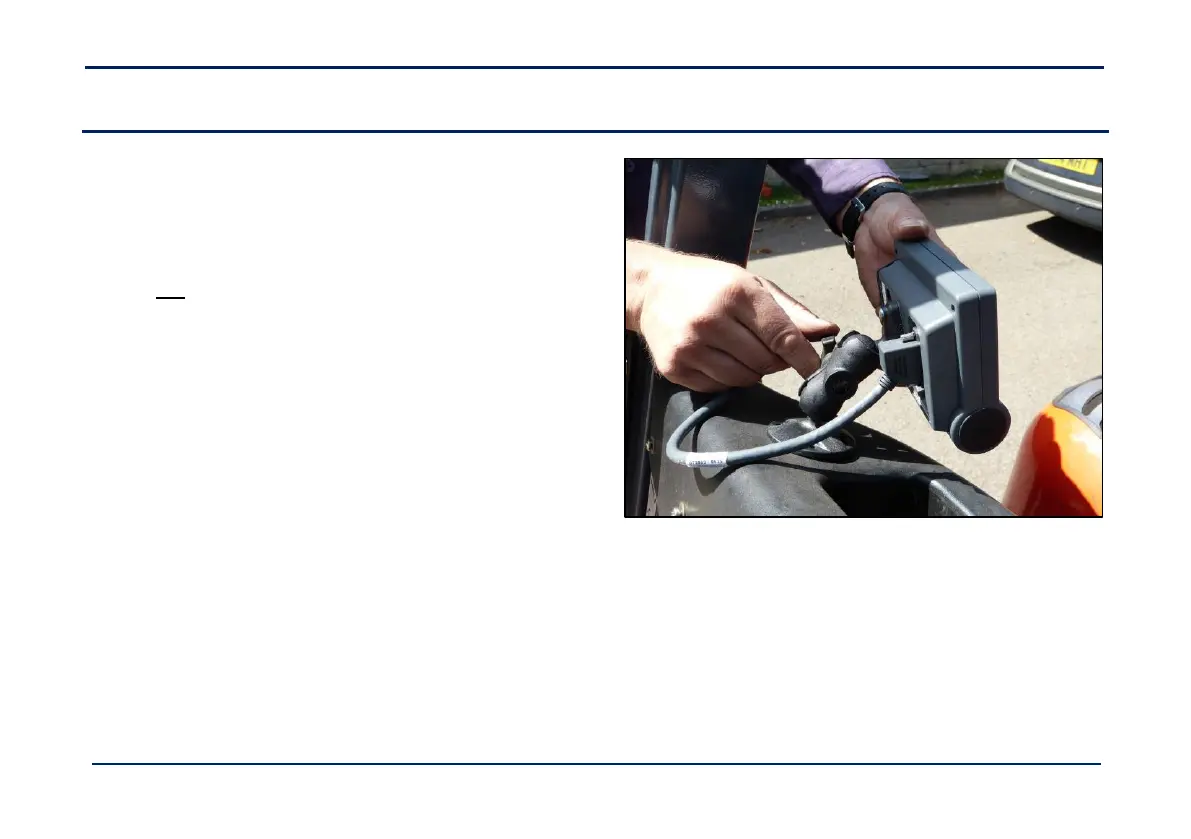

Mount the head to the front panel with the RAM mount as
shown.
NOTE: The head unit can also be mounted off the ROPS pillar using a
“U” Clamp kit (optional
The head unit is dust-tight and splash-resistant, however it is
not rated for constant outdoor use.
For use in an outdoor environment, it is recommended to
mount the unit within a suitable secondary enclosure or
cover (not provided), so that it is afforded adequate
protection from rain and moisture.
Route the head unit cable back to the Terminator. Coil excess
cable next to the Terminator.
Ref. 2.4.1 for wiring connections.
