RealMan RM65-B - Full-Screen Button; Power Button; Menu Bar

RealMan (Beijing) Intelligent Technology Co., Ltd.
35
8
operation mode selection
9
operation coordinate selection
10
tool coordinate selection
11
3D simulation model
12
step mode setting
13
robot arm’s position and pose parameter display
14
origin pose button
15
initial pose button
16
moving speed percentage display
17
communication status display, grey – unconnected to the robot
arm, green - connected to the robot arm
The blocks/keys are described as follows in the order shown in Table 5.

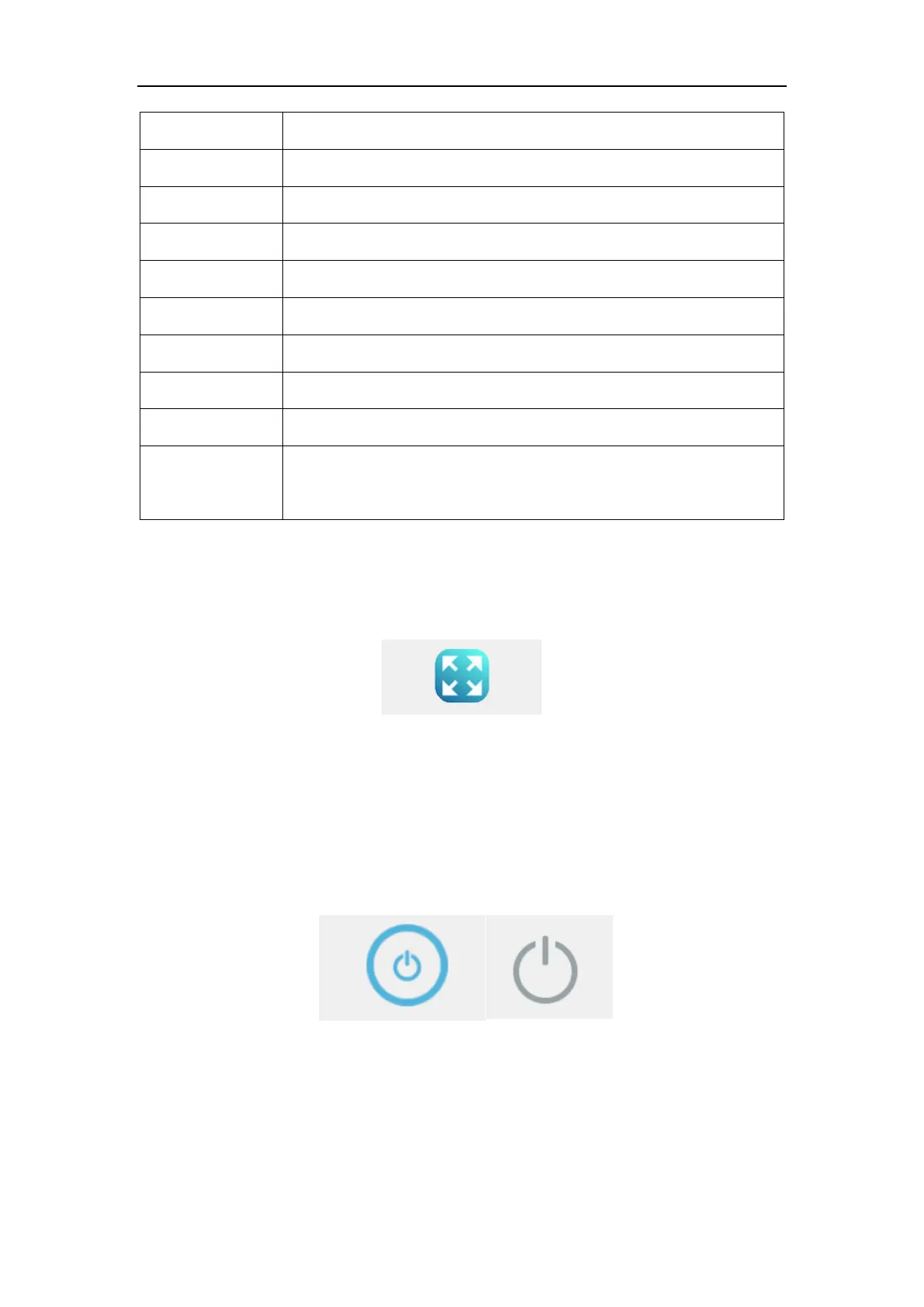

8.2.1 Full-screen Button
This button is used to control the teaching software into and out of full screen.
Fig. 8-7 The full-screen button.
8.2.2 Power Button
The button is used to control the power of the robot arm. Blue represents that the power
supply of the robot arm is in the open status and gray represents that the power supply
of the robot arm is in the off status.
Fig. 8-8 The robot arm power button.
8.2.3 Menu Bar
Click the button in the menu bar to switch to the corresponding name panel, which is
convenient for users to operate. The selected panel has an orange background.
