Record 5100 Series - Safety and Emergency Input;Output; Emergency Stop and Functionality; SIO;SIS Signal Configuration

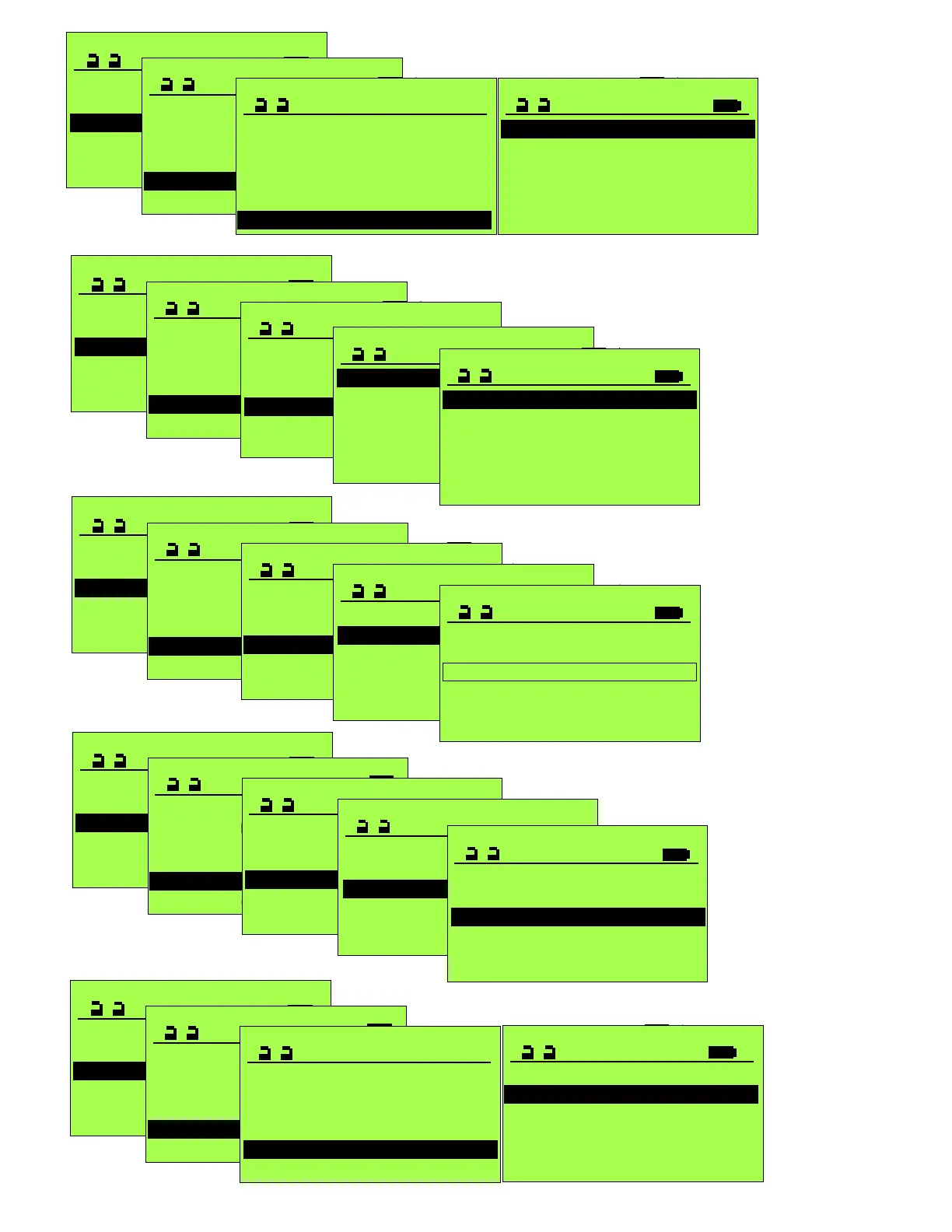

Operation mode >
SERVICE STG
Maintenance >
Functions >
Configure System
Learning System >
Parameter >
PARAMETER
CAN-BUS >
Input/Output >
Miscellaneous >
Entrance System >
Control Panel >
Locking >
INPUT/OUTPUT
Ext. Sw IN 0
Emerg. Open/Close 0
EMERG, STOP Reset 0
STG >
FEM0 >
FEM1 >
EMERG. STOP Reset
0 Disabled
1 Enabled
Enabled:
Emerg Open,
Emerg. Close
Manual &
RemSw,
Emerg. Close
Locked,
Emerg. Close
Locked &
RemSw,
Emerg. close
& Manual
Overide.
Operation mode >
SERVICE STG
Maintenance >
Functions >
Configure System
Learning System >
Parameter >
PARAMETER
CAN-BUS >
Input/Output >
Miscellaneous >
Entrance System >
Control Panel >
Locking >
INPUT/OUTPUT
Ext. Sw IN 0
Emerg. Open/Close 0
EMERG, STOP Reset 0
SIO >
SIS >
SIA >
SIO
Function SIO 2
Activate SIO 0
Suppression SIO 0
Function SIO
1 Stop
2 Creep
Side Screen Sensor
Function of door
opening travel with
SIO signal enabled on
one of the AUX_IN
terminals (NC contact
required), side
approach.
Operation mode >
SERVICE STG
Maintenance >
Functions >
Configure System
Learning System >
Parameter >
PARAMETER
CAN-BUS >
Input/Output >
Miscellaneous >
Entrance System >
Control Panel >
Locking >
INPUT/OUTPUT
Ext. Sw IN 0
Emerg. Open/Close 0
EMERG, STOP Reset 0
SIO >
SIS >
SIA >
SIO
Function SIO 2
Activate SIO 0
Suppression SIO 0
Activate SIO
0
Door position from
which SIO Signal
becomes active.
0=active @ closed
1=inactive last 2.5% of
opening
40=inactive entire
opening width
Operation mode >
SERVICE STG
Maintenance >
Functions >
Configure System
Learning System >
Parameter >
PARAMETER
CAN-BUS >
Input/Output >
Miscellaneous >
Entrance System >
Control Panel >
Locking >
INPUT/OUTPUT
Ext. Sw IN 0
Emerg. Open/Close 0
EMERG, STOP Reset 0
SIO >
SIS >
SIA >
SIO
Function SIO 2
Activate SIO 0
Suppression SIO 4 0
Suppression SIO
40
Door position from
which SIO Signal is
inactive..
0=inactive @ closed
39=inactive last 2.5%
of opening
40=active entire
opening width
Operation mode >
SERVICE STG
Maintenance >
Functions >
Configure System
Learning System >
Parameter >
PARAMETER
CAN-BUS >
Input/Output >
Miscellaneous >
Entrance System >
Control Panel >
Locking >
INPUT/OUTPUT
Ext. Sw IN 0
Emerg. Open/Close 0
EMERG, STOP Reset 0
SIO >
SIS 2
SIA >
SIS
1 Stop
2 Reversing
3 Creep
Threshold Safety
Function of door
in closing
direction with
safety signal
enabled on one
of the AUX_IN
terminals(NC
contacts
required).
