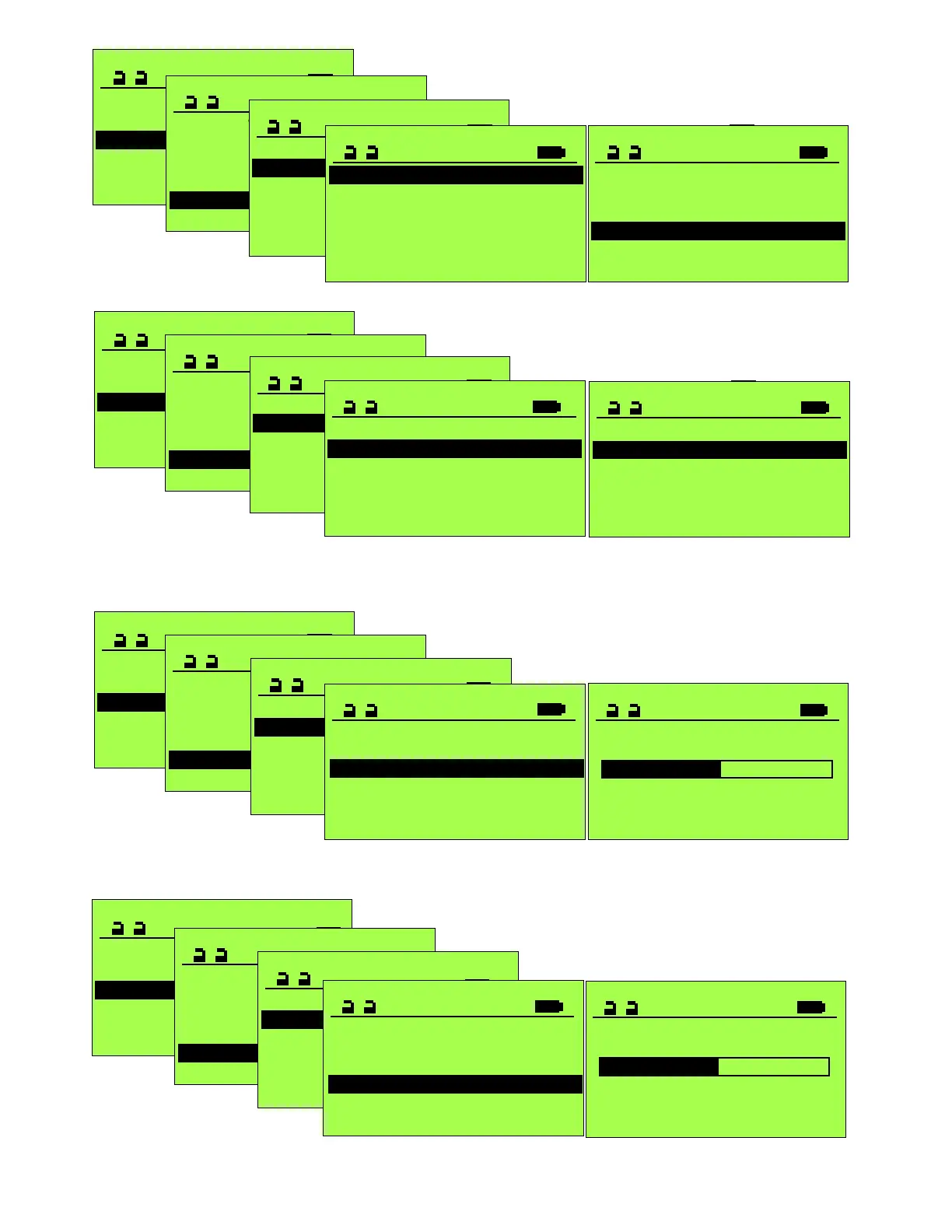

Record 5100 Series - Display Panel Configuration; Language and Contrast Settings; Keyboard Mode and Brightness

Operation mode >
SERVICE STG
Maintenance >
Functions >
Configure System
Learning System >
Parameter >
Operation mode >
SERVICE STG
Maintenance >
Functions >
Configure System
Learning System >
Parameter >
Operation mode >
SERVICE STG
Maintenance >
Functions >
Configure System
Learning System >
Parameter >
Operation mode >
SERVICE STG
Maintenance >
Functions >
Configure System
Learning System >
Parameter >
Typically select “OFF-Mode” unless using a Fail-Safe lock and it is to be locked when door is off.
PARAMETER
Driving Cycle >
Time delay open >
Drive >
Entrance System >
Control Panel >
Locking >
CONTROL PANEL
Mechanical Panel 3
Display panel >
PARAMETER
Driving Cycle >
Time delay open >
Drive >
Entrance System >
Control Panel >
Locking >
SELECT LANGUAGE
0 DEUTSCH
1 FRANCAIS
2 ENGLISH
3 ENGLISH US
PARAMETER
Driving Cycle >
Time delay open >
Drive >
Entrance System >
Control panel >
Locking >
KEYBOARD
0 Locked-Mode
1 OFF-Mode
Default op. mode 0
.
DISPLAY PANEL
Language 3
Keyboard 1
Contrast BDE1 20
Contrast BDE2 20
Brightness BDE1 20
Brightness BDE2 20
4 ESPANOL
5 NEDERLANDS
CONTROL PANEL
Mechanical Panel 3
Display panel >
Default op. mode
DISPLAY PANEL
Language 3
Keyboard 1
Contrast BDE1 20
Contrast BDE2 20
Brightness BDE1 20
Brightness BDE2 20
PARAMETER
Driving Cycle >
Time delay open >
Drive >
Entrance System >
Control Panel >
Locking >
CONTRAST BDE1
20
CONTROL PANEL
Mechanical Panel 3
Display panel >
Default op. mode
DISPLAY PANEL
Language 3
Keyboard 1
Contrast BDE1 20
Contrast BDE2 20
Brightness BDE1 20
Brightness BDE2 20
CONTROL PANEL
Mechanical Panel 3
Display panel >
Default op. mode
DISPLAY PANEL
Language 3
Keyboard 1
Contrast BDE1 20
Contrast BDE2 20
Brightness BDE1 20
Brightness BDE2 20
CONTRAST BDE2
20
