CHARGE IN
Use the 6-pin 1B LEMO CHARGE IN port to charge batteries and provide power to the AUX POWER OUT port.

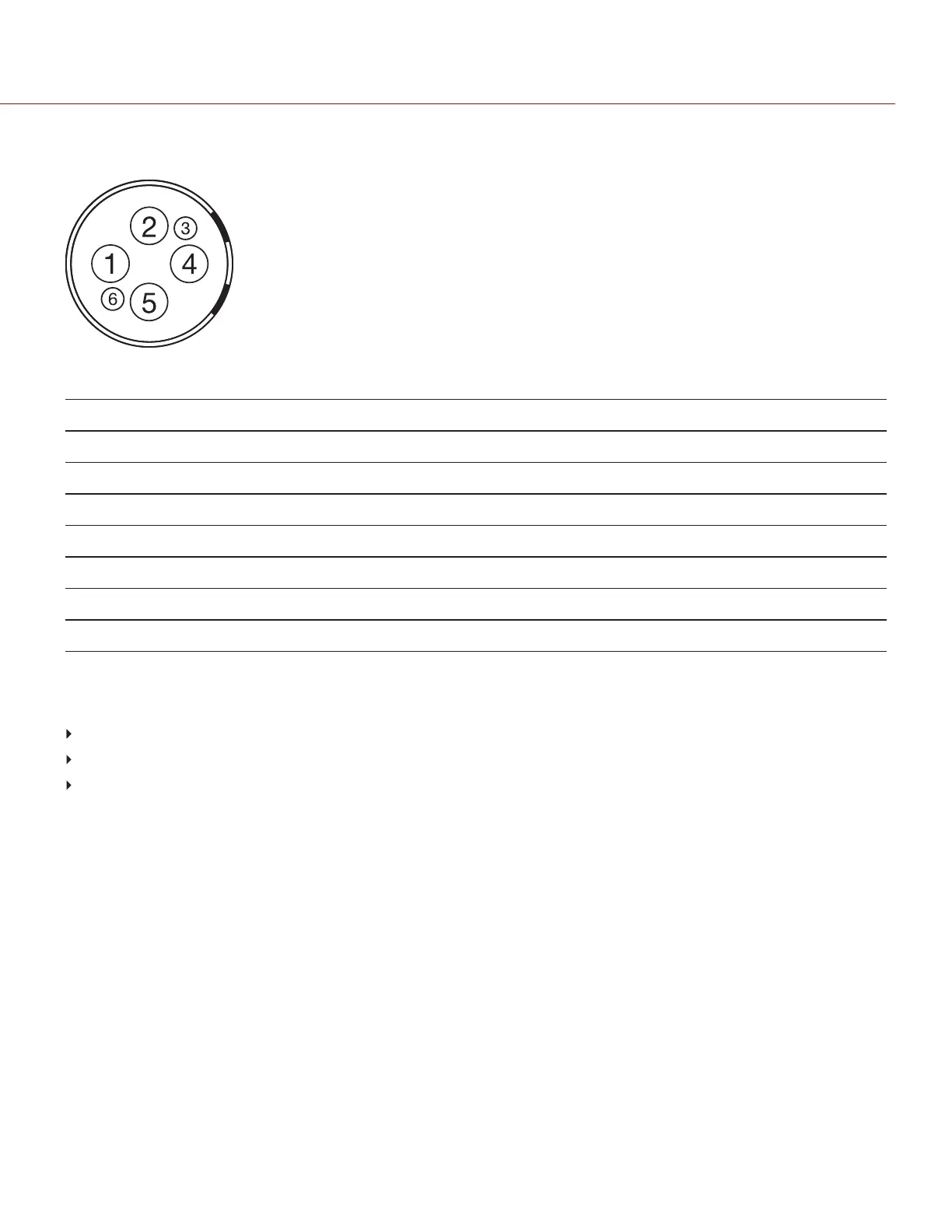

Figure: Front Face of CHARGE IN Connector
6-PIN 1B LEMO CHARGE IN CONNECTOR
PIN SIGNAL DESCRIPTION DIRECTION
1 +VBATT Power input, +11.5 to +17 VDC Out
2 +VBATT Power input, +11.5 to +17 VDC Out
3 SCL-BATT Serial battery bus clock Out
4 GROUND Power return (camera ground) Out
5 GROUND Power return (camera ground) Out
6 SDA-BATT Serial battery bus clock Out
NOTE: Mating connector is FGJ.1B.306.CWLD72Z.
COMPATIBLE CABLES
790-0138: RED 2B-to-1B LEMO Power Adaptor Cable
790-0164: XLR Power Cable (10')
790-0165: XLR Power Cable (30')
C OPYRI G HT © 2017 RED.C OM , LLC 955- 0038, REV-AD| 38
