COPYRIGHT © 2014 RED.COM, INC
RED DSMC OPERATION GUIDE
955-0020_V5.1, REV-H | 126

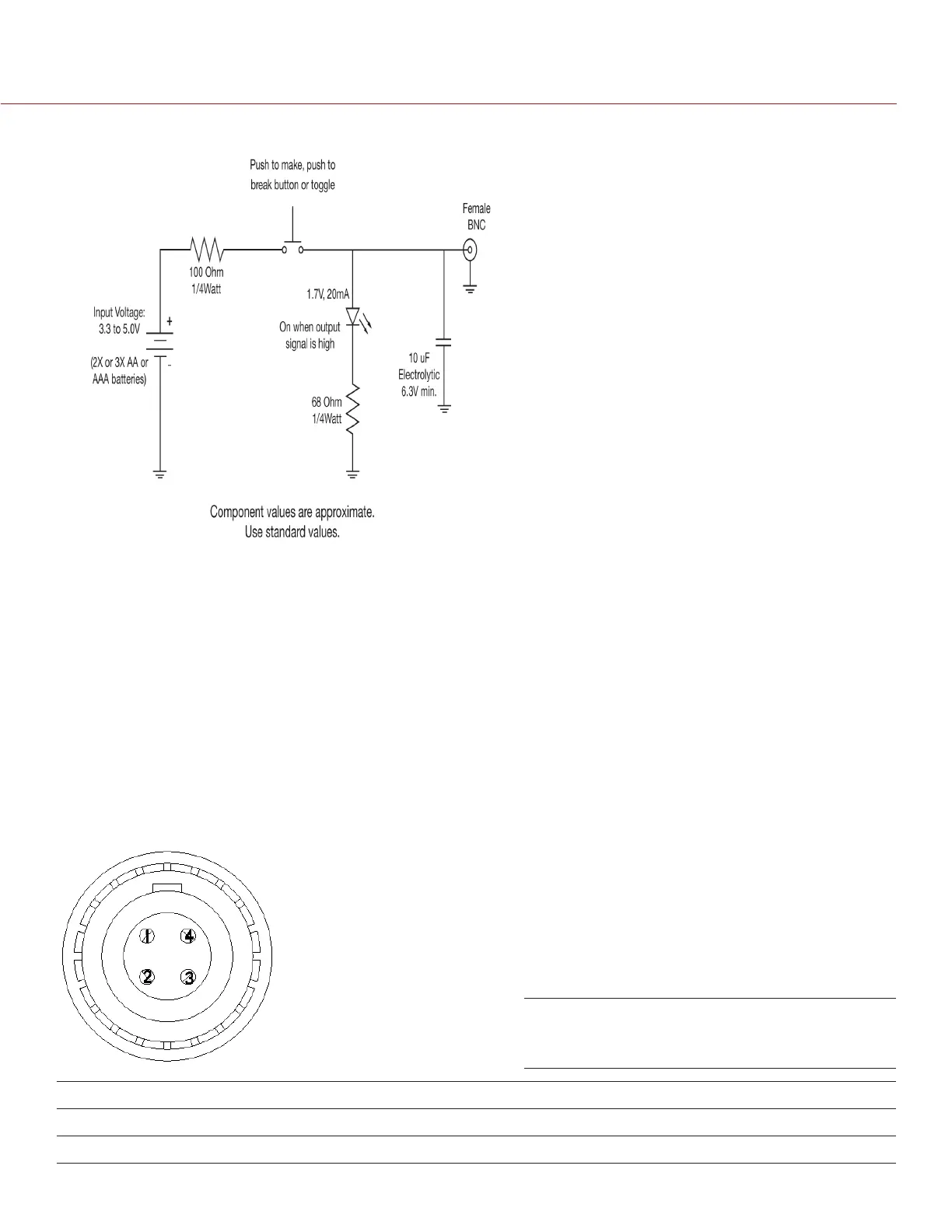

TRIGGER BUTTON CIRCUIT
NOTE: A 3BNC-TO-00 SYNC CABLE (P/N 790-0154) SYNC interface cable is available from RED Digital Cinema:
‒ White BNC: Shutter Sync/GPI
‒ Yellow BNC: SMPTE Timecode
‒ Green BNC: RS170A Genlock
CTRL (RS232 CONTROL)
A 4-pin LEMO connector supports RS232 remote control for 3D camera communication, and third party meta-
data ingest applications.
The shutter Sync Output signal acts as an immediate response hardware tally of a scan. This is useful for 3D
or motion control applications where a slave camera or lighting device needs to be synchronized to a master
camera.
Alternatively, this output pin may be used as a GPO (General Purpose Output) tally, whose function is pro-
grammed in the USER KEYS menu. Default function for the General Purpose Output is Record Tally.
PIN SIGNAL DESCRIPTION
1 GROUND Common Ground
2 232 RX RS232 RX
CTRL (RS232) Connector
Mating Connector: FGG.00.304.CLAD27Z
