PRO BATTERY MODULE (QUAD)

The PRO BATTERY MODULE (QUAD) harnesses the power of four REDVOLT batteries or two REDVOLT XL bat-

teries to power the DSMC BRAIN. Similar to the PRO BATTERY MODULE (DUAL), this module enables hot-swap

support for continuous power to the camera without missing a shot.

For more information about installing and using the PRO BATTERY MODULE (QUAD), see the DSMC Power

Operation Guide available at www.red.com/downloads.

INSTALL MODULES

Use the instructions in this section to install and remove DSMC modules.

INSTALL MODULE ADAPTOR

Use the instructions in this section to install the MODULE ADAPTOR.

REQUIRED TOOL: T20 Torx

driver

You must install a MODULE ADAPTOR to the back of the camera BRAIN before you install a DSMC module.

MODULE ADAPTORs are sold separately from the DSMC modules.

1. Power down the camera.

2. Remove the REDMOTE, if attached.

3. Place the MODULE ADAPTOR over the V-mount on the rear of the camera BRAIN.

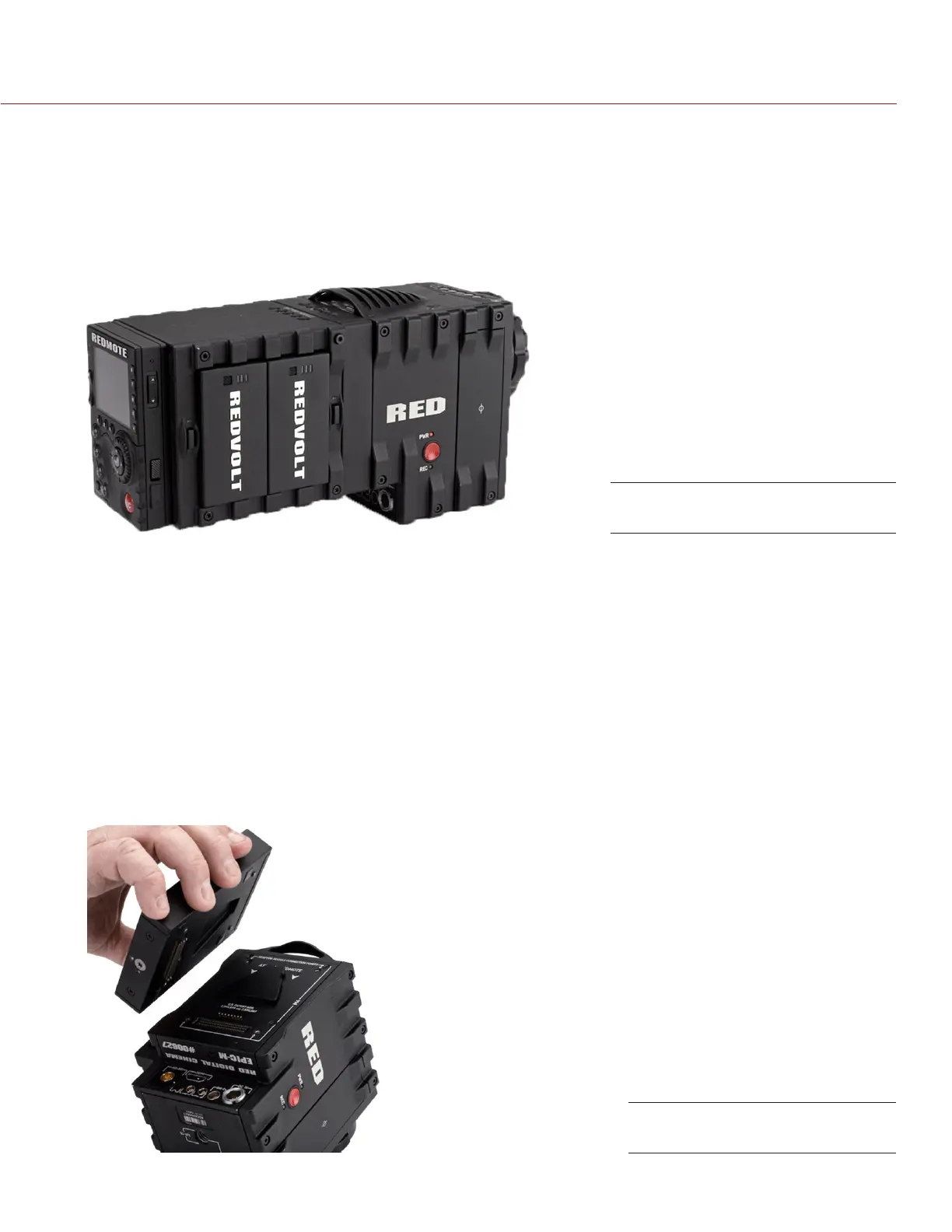

PRO BATTERY MODULE (QUAD)

MODULE ADAPTOR
