RED DSMC OPERATION GUIDE

955-0020_V5.1, REV-H | 23

4. Use a T20 Torx driver to tighten the screws by about two turns in a cross pattern. DO NOT FULLY TIGHTEN.

5. Fully tighten the screws in a cross pattern. DO NOT OVERTIGHTEN.

INSTALL THE +1 ADAPTOR MODULE

Use the instructions in this section to install the +1 ADAPTOR MODULE.

WARNING: DSMC modules and adaptors are NOT HOT SWAPPABLE, meaning you cannot remove or install the

modules while the camera is powered on. Before installing or removing modules, you MUST power down the

camera. Failure to do so may result in damage to the modules or DSMC that will not be covered under warranty.

REQUIRED TOOL: T20 Torx driver

1. Power down the camera.

2. Remove the REDMOTE, if attached.

3. Align the +1 ADAPTOR MODULE with the back of the DSMC BRAIN.

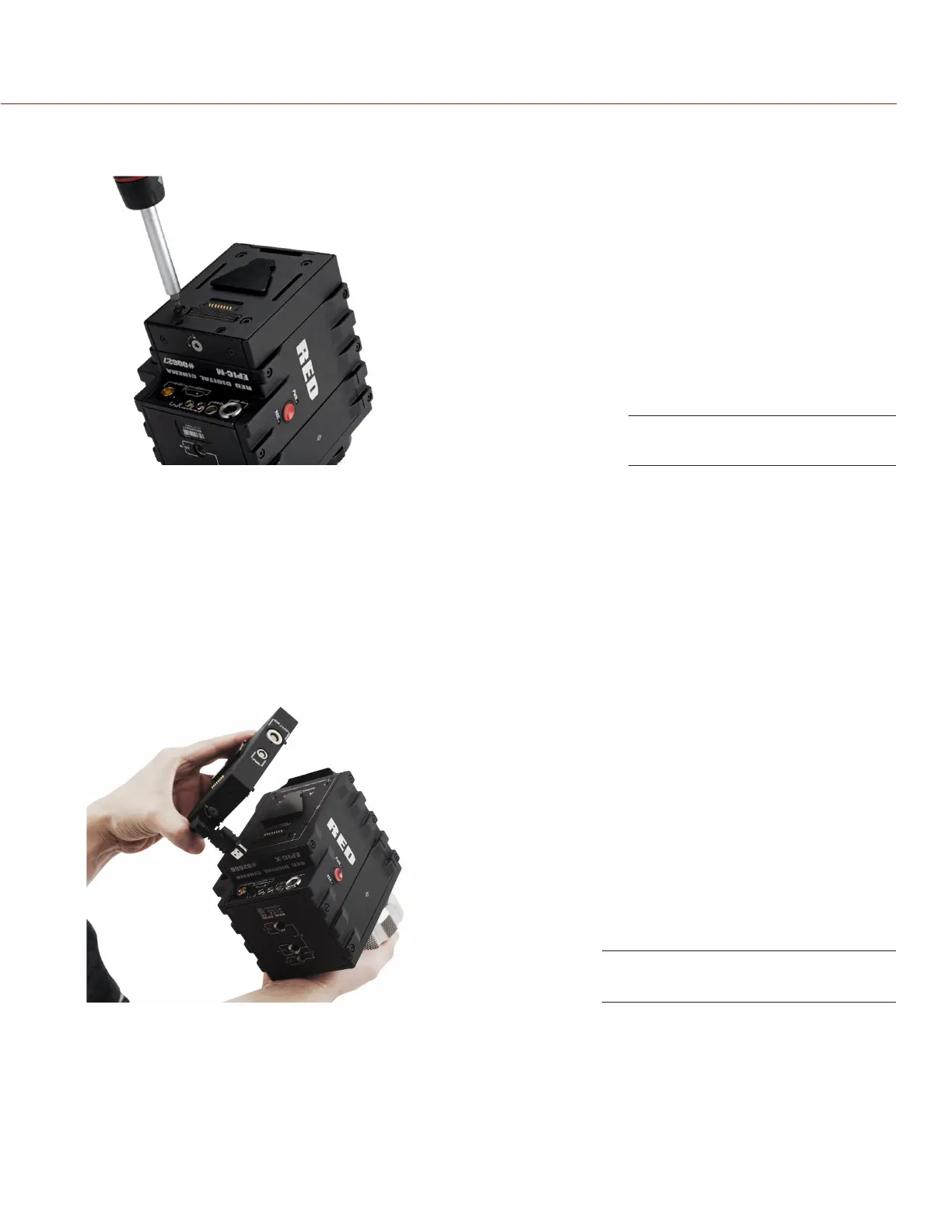

Install Screws

Install +1 ADAPTOR MODULE
