24
4.

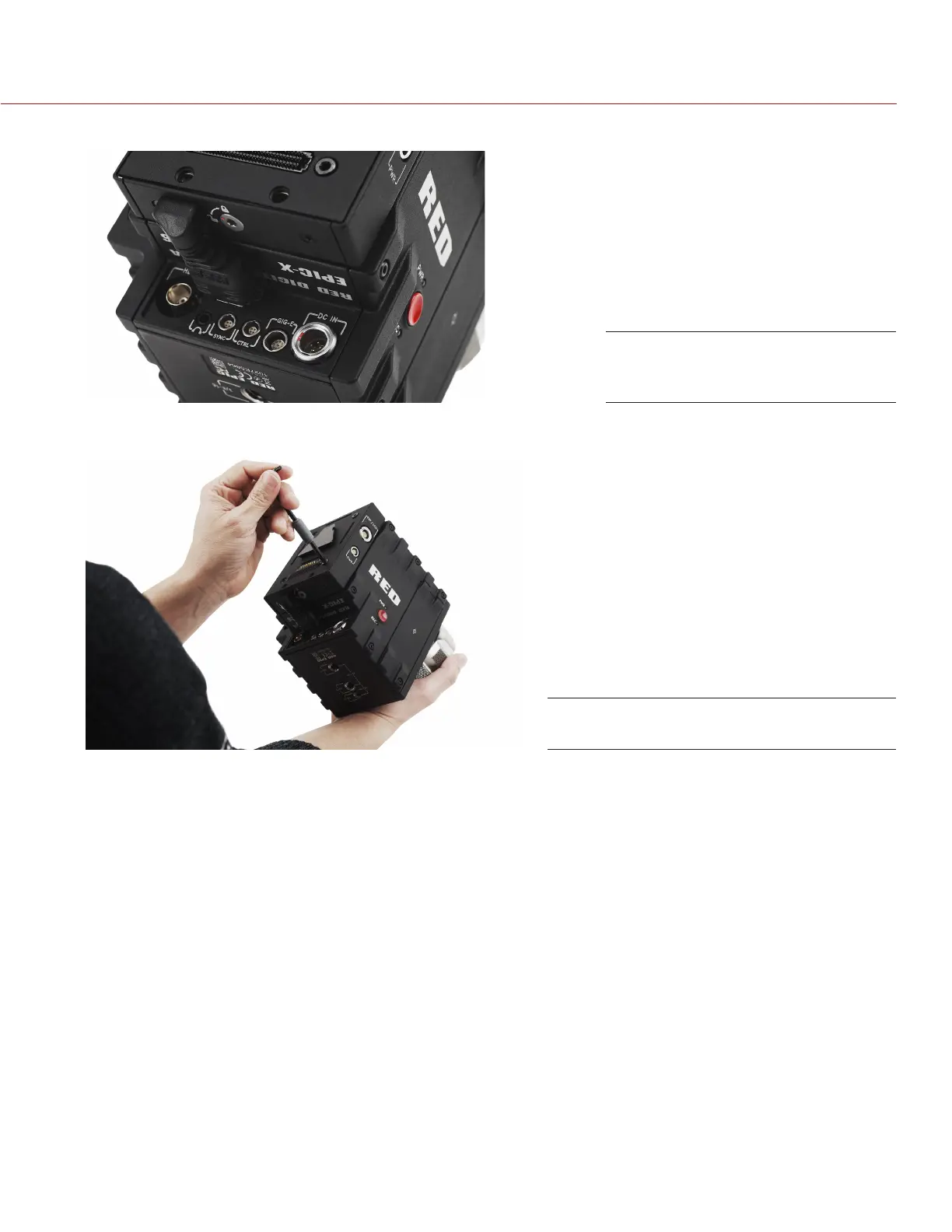

Insert the HDMI connector into the DSMC BRAIN.
5.
Use a T20 T
orx driver to tighten four (4) captive screws. Tighten screws in a cr
oss patter
n approximately
two turns each. DO NOT FULL
Y TIGHTEN.
6.
Fully tighten four (4) screws in a cr
oss patter
n. DO NOT OVERTIGHTEN.
Insert the HDMI Connector to
DSMC BRAIN
Tighten the screws in an “X” pattern
23
25
