MOTION MOUNT ND
Only applicable when using a DSMC
®
RED MOTION MOUNT
TM
.

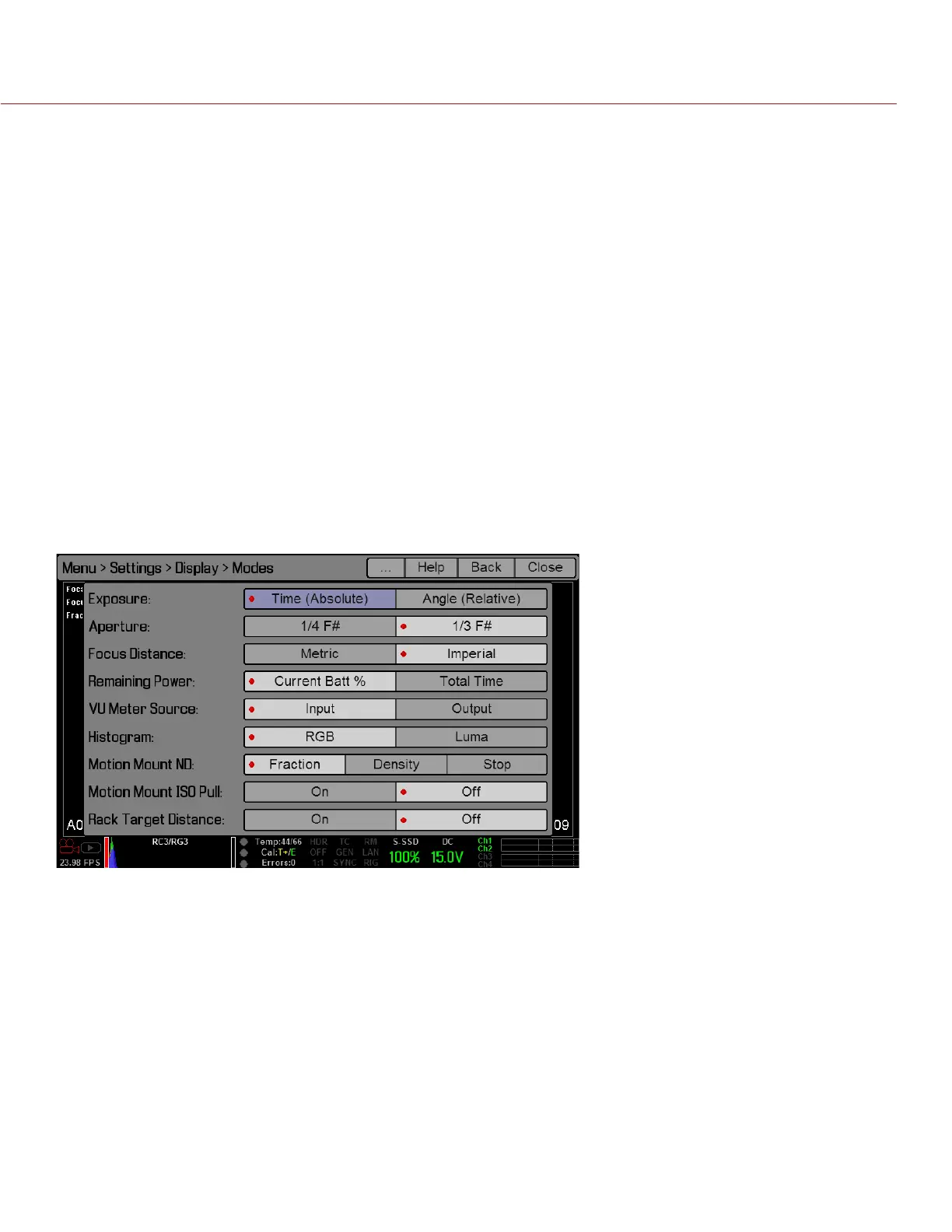

Select how the ND value displays in the top left corner of the main screen.
Fraction: Displays the neutral density value as a fraction of light transmission. This is the default.
Density: Displays the neutral density value as an optical density value.
Stop: Displays the neutral density value as a stop loss.
MOTION MOUNT ISO PULL
Only applicable when using a DSMC
®
RED MOTION MOUNT
TM
.
When using any ND filter, including the MOTION MOUNT, the effective ISO is reduced because the ND filter
reduces light transmission to the sensor. The MOTION MOUNT and DSMC give you the ability to see both the
effective ISO (on the main screen) and the native camera sensor ISO (in the FLUT screen).
On: Displays the effective ISO. While the effective ISO is displayed on the main screen, you should continue
to follow standard exposure best practices and select your ISO based on the camera’s native ISO.
Off: Displays actual ISO. This is the default.
RACK TARGET FOCUS
Displays the focus distance of each rack point on the main screen when rack focus is enabled. For more infor-
mation about rack focus, go to “Set Up Rack Focus” on page 99.
GUIDES
Set up how you want the Frame Guide, Action Guide, and Title Guide to display. You can also enable/disable
each of these guides.
MODE
Off: Do not show guide.
Full: Guide has the same aspect ratio as the record format.
4:3, 16:9, 1.85:1, 1.9:1, 2.4:1: Guide has the selected aspect ratio.
User: Select a customized aspect ratio for the guide from the drop-down menu that appears when you se-
lect this option.
Absolute: Guide is defined by absolute pixel dimensions rather than aspect ratio and scale. When you select
Absolute, the Scale field is replaced with Width/Height fields.
