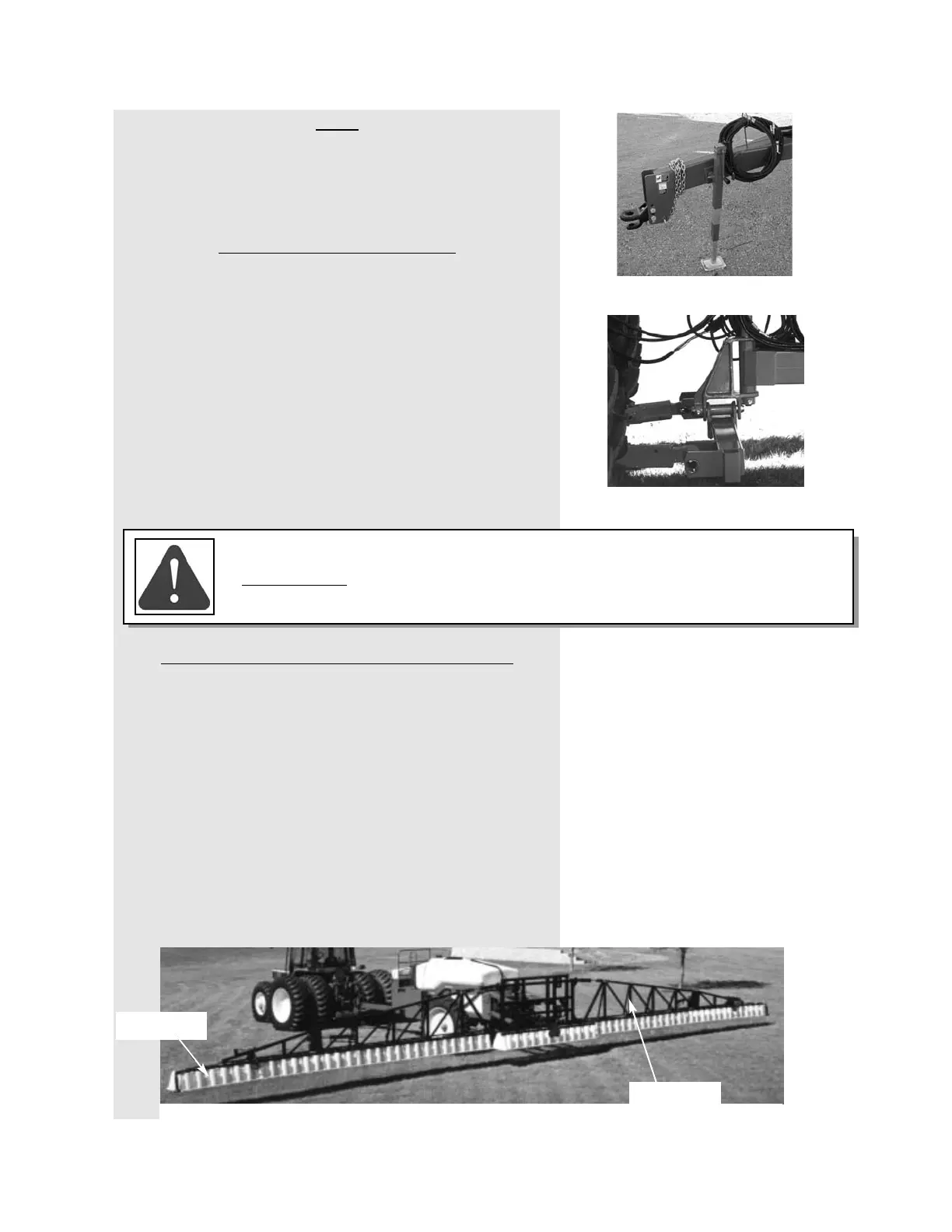

Hitch
Verify hitch is correctly attached to the tractor. See
Section C for connection procedures.
Liquid T
anks & Cradle Frame
A structural steel cradle skid and frame weldment sup-
ports the polyethylene solution and clean water rinse
tanks The tanks are lowered into the cradle frame,
requiring no additional strapping to hold in place.
S
prayboom, Nozzles, and Hoods (Optional)
Sprayboom sizes range from 53’4” to 100’. Hydraulic
cylinders, powered via the tractor hydraulics achieve
folding of the sprayboom. The required size of the noz-
zles is dependent on the application rate and the tractor
rate of travel (i.e. speed). The spacing of the nozzles is
dependent on the type and size of nozzle utilized. See
your Redball
®
Dealer for correct selection of nozzles and
required spacing.
For booms up to 66’8”, optional hoods can be purchased
which minimize chemical drift during the spraying opera-
tion. (Shown in photo.)
680 High Clearance Sprayer - Operation Instructions
Section B
Never allow the clean water safety tank to become
contaminated with chemical. Use the clean water for skin
and eye rinse in case of accidental chemical contact.
WARNING
2
Section B
Pintle & Clevis Style Hitch
2-Point Attachment Hitch
