Redball 680 - Fill Solution Tank

11-01
680 High Clearance Sprayer - Operation Instructions
Section B
Fill Solution Tank
Loading of the solution tank is accomplished without the
use of the trailer sprayer pump via the following steps.
1. Close
all valves.
2. Remove solution quick fill cap & connect load hose.
3. Open
solution quick fill valve and solution tank main
valve.
4. Open valve on loading reservoir (i.e. nurse tank).
5. Begin remote transfer pump.
6. Run remote transfer pump until the desired amount of
solution is transferred into the trailer sprayer.
7. Close
valves on loading reservoir.
8. Close solution quick fill valve on trailer sprayer.
9. Remove load line & replace cap on trailer quick fill.
Small amounts of liquids will remain in the load hose.
Splashing of this liquid can cause a safety hazard to you and
to those in the vicinity of the trailer sprayer.
CAUTION
Overfilling will cause a failure of the tank lid causing splashing
of solution from the tank lid, which may be hazardous to you
and the environment.
CAUTION
5
Section B

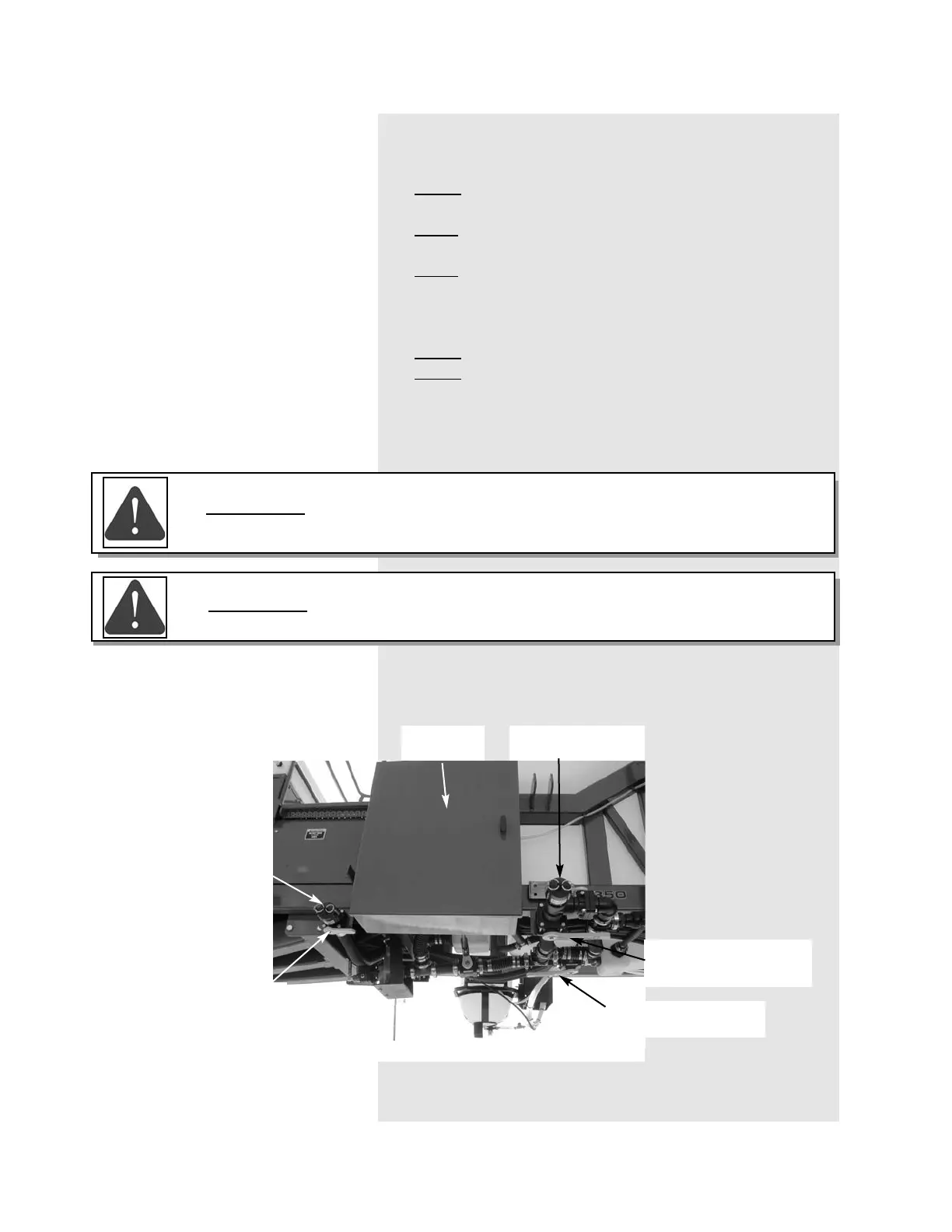

Left Side Under Frame View
Solution Tank Quick
Fill Connection
Valve
Enclosure
Solution Quick Fill Valve -
Closed Position
Clean Water
Quick Fill Connection
Clean Water Quick Fill Valve -
Closed Position
Solution Tank Main Valve
Open Position
