11-01
680 High Clearance Sprayer - Maintenance, Service &
Troubleshooting
Section E
Lubrication
Apply grease to all grease zerks daily when in use
(more often if sprayer is utilized in severe conditions).

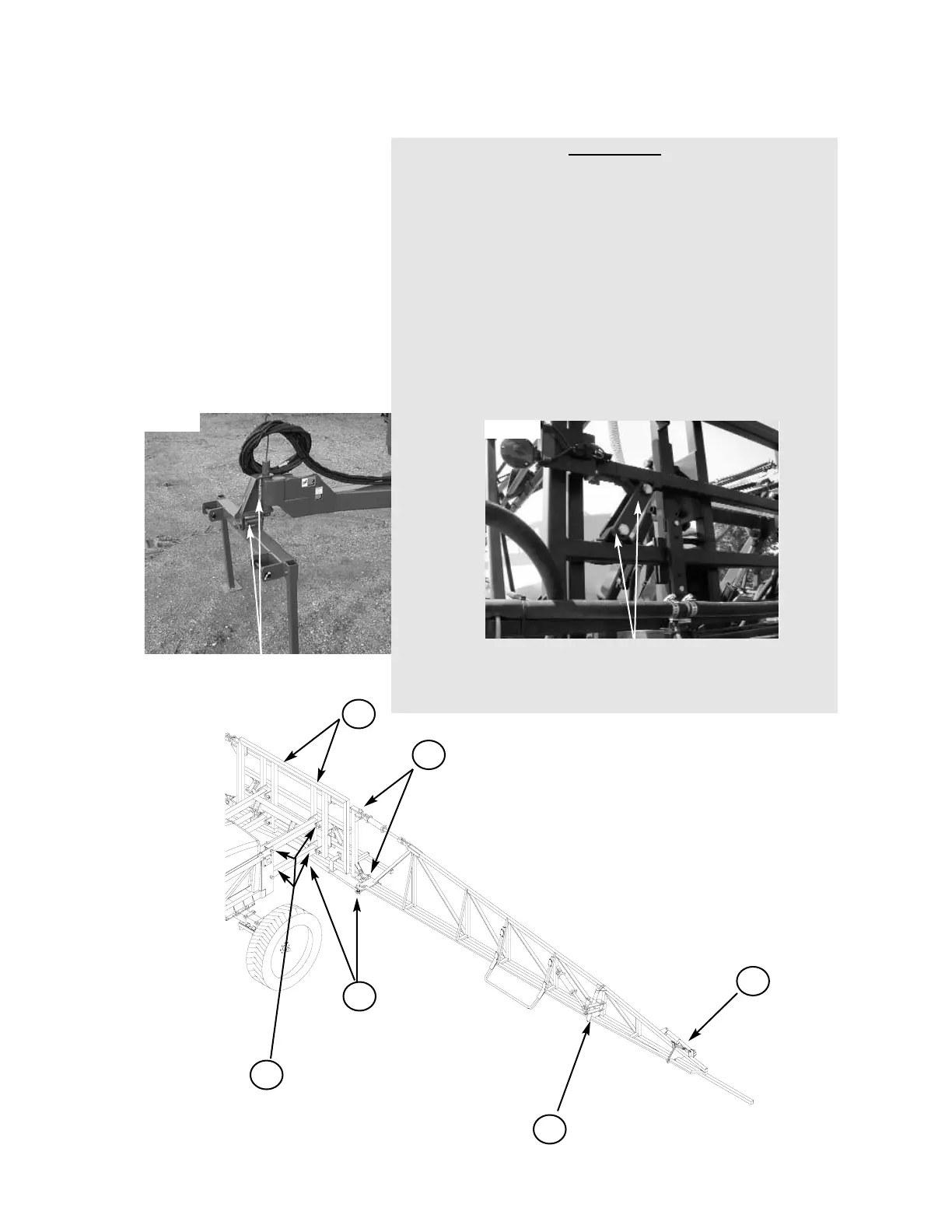

Grease zerks are located at:
• Top & bottom at the wing attach point (Item 1 )
• Top and bottom pins of center section (Photo & Item 2)
• Parallel linkage pins, 8 total (Item 3)
• Secondary boom section fold hinge (Item 4)
• Breakaway section, pivot hinge (Item 5)
• 2-point Hitch (Photo 1)
• Boom Fold Cylinder Ends (Item 6)
3
Section E
Zerks
Photo 2
Zerks
Photo 1
5
4
6
1
3
2
REF-006068A
