680 High Clearance Sprayer - Operation Instructions
Section B
Fill Solution Tank, With Tank Agitation: Loading of
the solution tank, using tank agitation, is accomplished
via the following steps:
1. Close
all valves.
2. Remove solution quick fill cap & connect load hose.
3. Open
solution quick fill valve and the solution tank
main valve.
4. Open valve on loading reservoir (i.e. nurse tank).
5. Begin remote transfer pump.
6. Open
the agitation valve.
7. Open the solution tank valve.
8. Power ON the liquid pump of the trailer sprayer.
9. Power OFF the liquid pump of the trailer sprayer
when adequate agitation is achieved.
10. Run remote transfer pump until the desired amount
of solution is transferred into the trailer sprayer.
11 Close
the solution tank valve.
12. Close the agitation valve.
13. Close
valves on loading reservoir.
14. Close the solution quick fill and the solution tank
main valves.
Fill Clean Water Rinse Tank
Filling the clean water rinse tank is achieved via the fol-
lowing steps:
1. Close all valves.
2. Remove
clean water quick fill cap & connect
load hose.
3. Open valve on clean water quick fill of trailer sprayer.
4. Open
valve on loading reservoir (i.e. nurse tank).
5. Begin remote transfer pump.
6. Run remote transfer pump until the desired amount
of clean water is transferred into the trailer sprayer.
7. Close
valves on loading reservoir.
8. Close clean water water quick fill valve on
trailer sprayer. Remove load line & replace
cap on trailer quick fill.
8
Section B

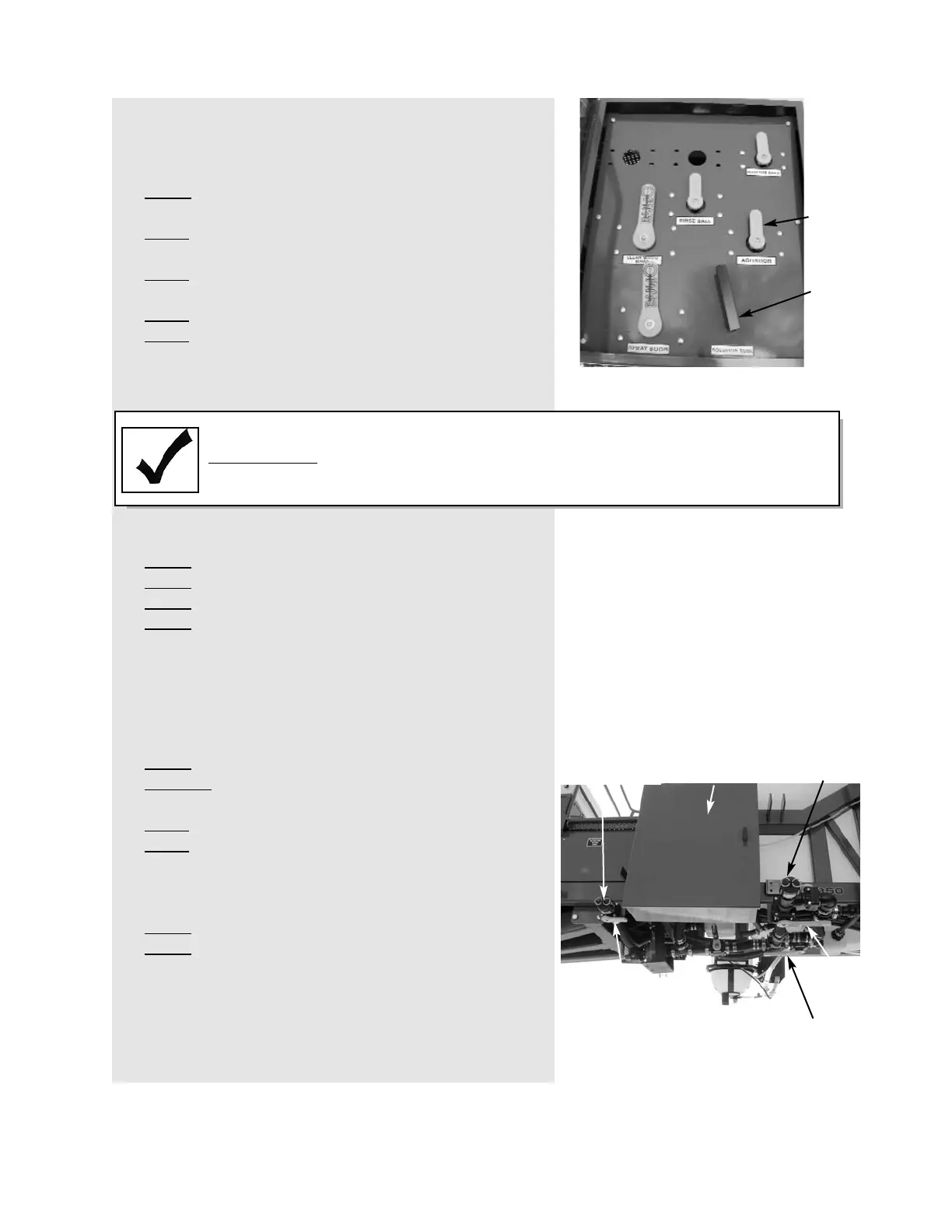

Valve Enclosure
All valves in closed position
IMPORTANT
Turn off a hydraulically driven centrifugal pump using the “float” posi-
tion of the tractor’s hydraulic valve. This allows the motor to stop
slowly helping to protect the motor and motor seals.
Agitation
Valve
Solution
Tank
Valve
Left Side Under Frame View
Solution Tank Quick
Fill Connection
Valve
Enclosure
Solution Quick
Fill Valve -
Closed Position
Clean Water
Quick Fill
Connection
Clean Water
Quick Fill Valve -
Closed Position
Solution Tank Main Valve
Open Position
