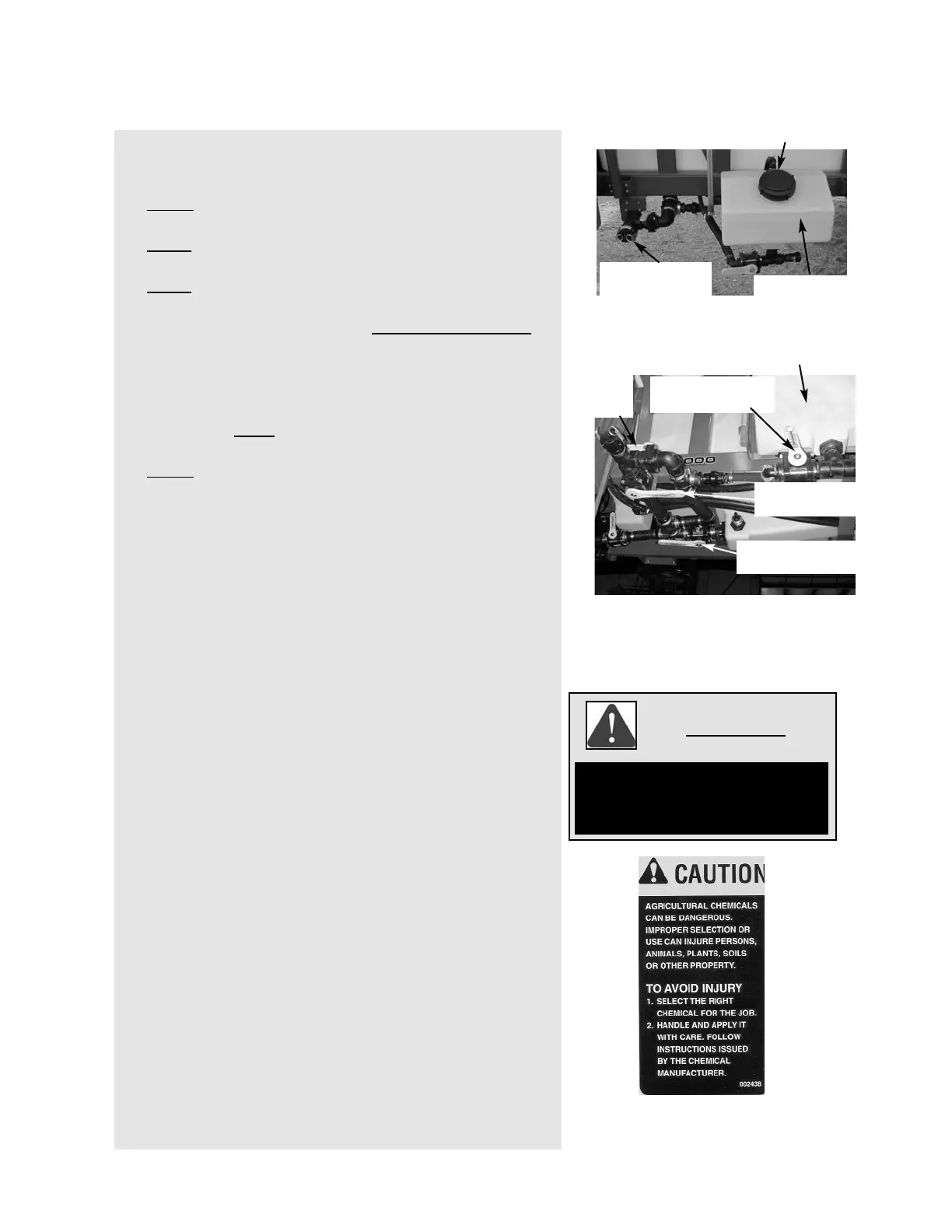

Fill Solution Tank, Utilizing Eductor (Optional):
Loading of the solution tank, using the optional eductor,
is accomplished via the following steps:
1. Close
all valves.
2. Remove solution quick fill cap & connect load hose.
3. Open
solution quick fill valve and solution tank main
valve.
4. Open valve on loading reservoir (i.e. nurse tank)
5. Fill eductor with desired amount of chemical to be
pulled into the solution tank. CLOSE Eductor Lid
.
6. Begin remote transfer pump.
7. Once there is a steady flow rate from the nurse tank to
the solution tank, open the eductor valve and close the
solution quick fill valve. Once there is a steady flow
rate again, open
the eductor tank valve for 15-30
seconds.
8. Close the eductor tank valve and verify the chemical
has been completely removed from the eductor tank.
Repeat steps 7 and 8 if chemical remains in the
eductor tank.
680 High Clearance Sprayer - Operation Instructions
Section B
6
Section B
CAUTION
DO NOT open the lid of the
eductor while in operation as
splashing of chemical may occur.
Eductor Tank
Solution Quick
Fill Connection
Left Side View
Eductor Tank
Eductor Tank Valve
(closed position)
Eductor
Valve
(open
position)
Solution Quick Fill Valve
(closed position)
Solution Tank
Main Valve (open position)
Solution Quick Fill and Eductor Plumbing (Optional)
Left Side Under Frame View
Eductor Lid
To Next Page
